Danfoss FC 300

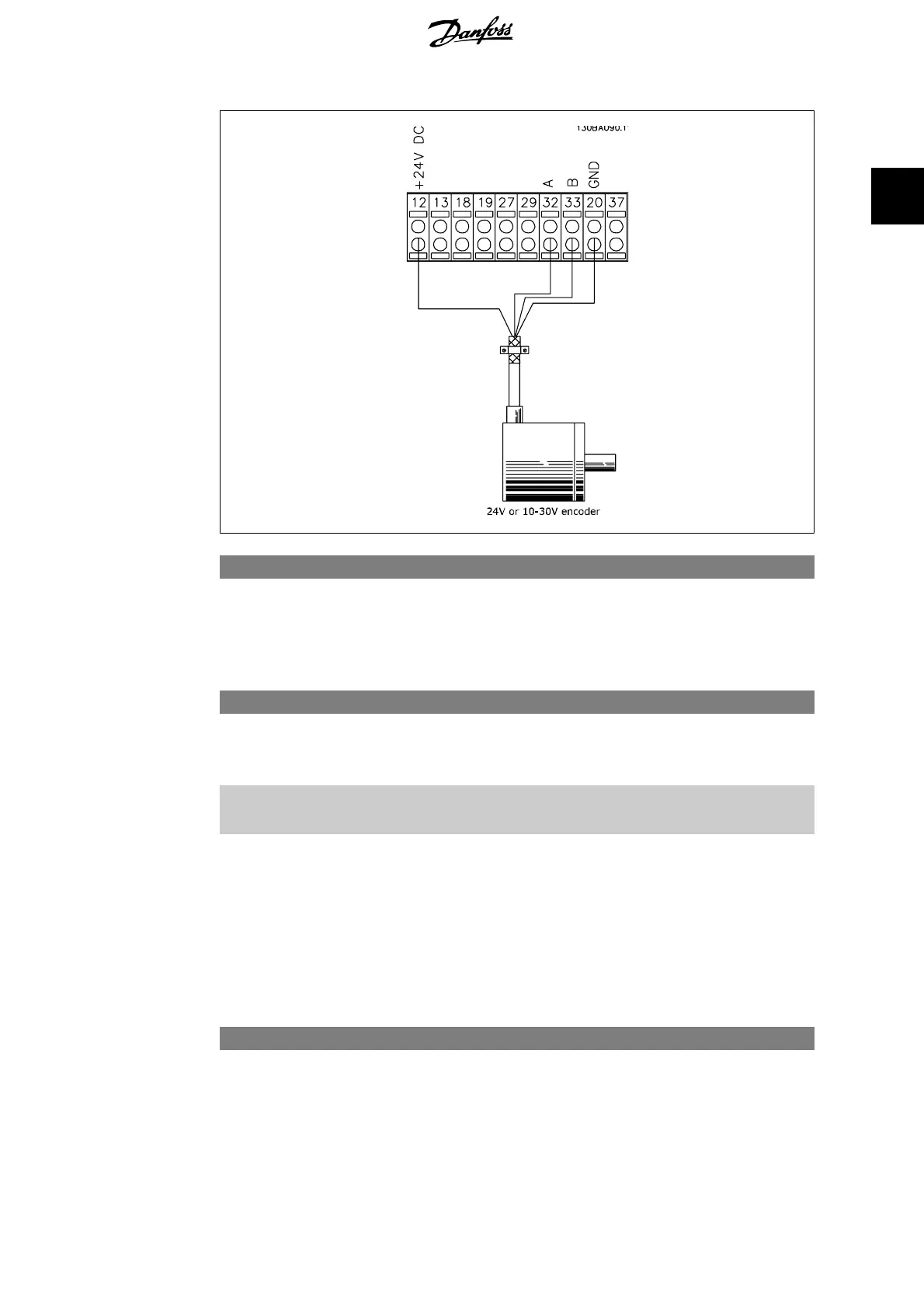

5-70 Term 32/33 Pulses per Revolution
Range: Function:
1024PP
R
*
[128 - 4096 PPR] Set the encoder pulses per revolution on the motor shaft. Read
the correct value from the encoder.
This parameter cannot be adjusted while the motor is running.
5-71 Term 32/33 Encoder Direction
Option: Function:
Change the detected encoder rotation direction without chang-
ing the wiring to the encoder.
[0]
*
Clockwise Sets channel A 90° (electrical degrees) behind channel B upon
clockwise rotation of the encoder shaft.
[1] Counter clockwise Sets channel A 90° (electrical degrees) ahead of channel B upon
clockwise rotation of the encoder shaft.
This parameter cannot be adjusted while the motor is running.
2.8.9. 5-9* Bus Controlled
This parameter group selects digital and relay outputs via a fieldbus setting.
5-90 Digital & Relay Bus Control
Option: Function:
[0]
*
0 - FFFFFFFF This parameter holds the state of the digital outputs and relays
that is controlled by bus.
A logical '1' indicates that the output is high or active.
A logical '0' indicates that the output is low or inactive.
FC 300 Programming Guide 2. How to Programme
MG.33.M2.02 - VLT
®
is a registered Danfoss trademark 111
2
