2.3.5. LCP Custom Readout, Par. 0-3*
It is possible to customize the display elements for various purposes: *Custom Readout. Value
proportional to speed (Linear, squared or cubed depending on unit selected in par. 0-30
Custom
Readout Unit
) *Display Text. Text string stored in a parameter.

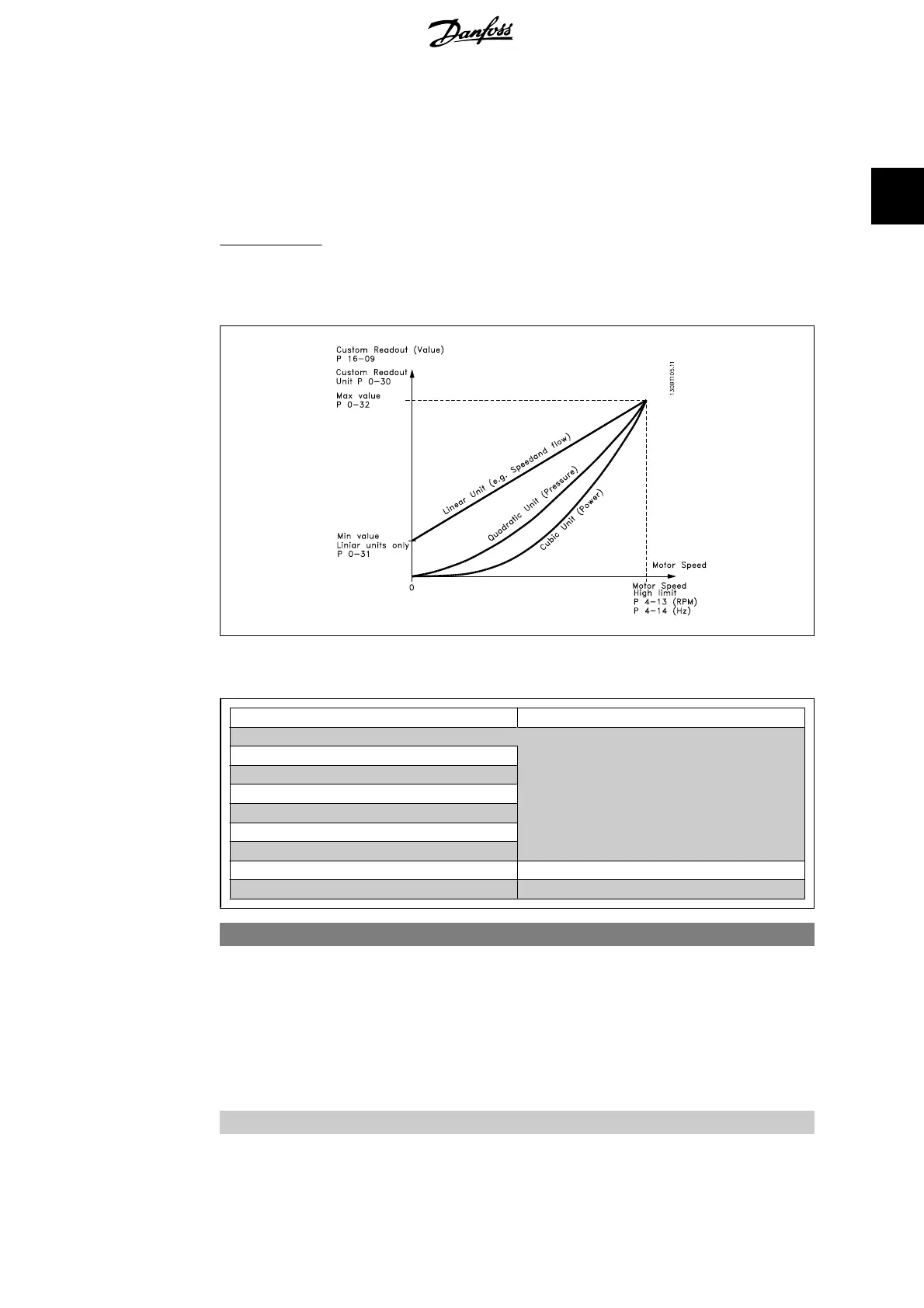

Custom Readout
The calculated value to be displayed is based on settings in par. 0-30,
Custom Readout Unit , par.
0-31
Custom Readout Min Value , (linear only), par. 0-32, Custom Readout Max Value , par.
4-13/4-14,
Motor Speed High Limit and actual speed.
The relation will depend on the type of unit selected in par.0-30, Custom Readout Unit:
Unit Type
Speed Relation
Dimensionless Linear
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure Quadratic
Power Cubic
0-30 Custom Readout Unit
Option: Function:
It is possible to program a value to be shown in the display of
the LCP. The value will have a linear, squared or cubed relation
to speed. This relation will depend on the unit selected (see ta-
ble above). The actual calculated value can be read in
Custom
Readout
, par. 16-09, and/or shown in the display be selecting
Custom Readout [16-09] in par. 0-20 – 0-24, Display Line X.X
Small (large).
Dimensionless:
[0]
*
None
