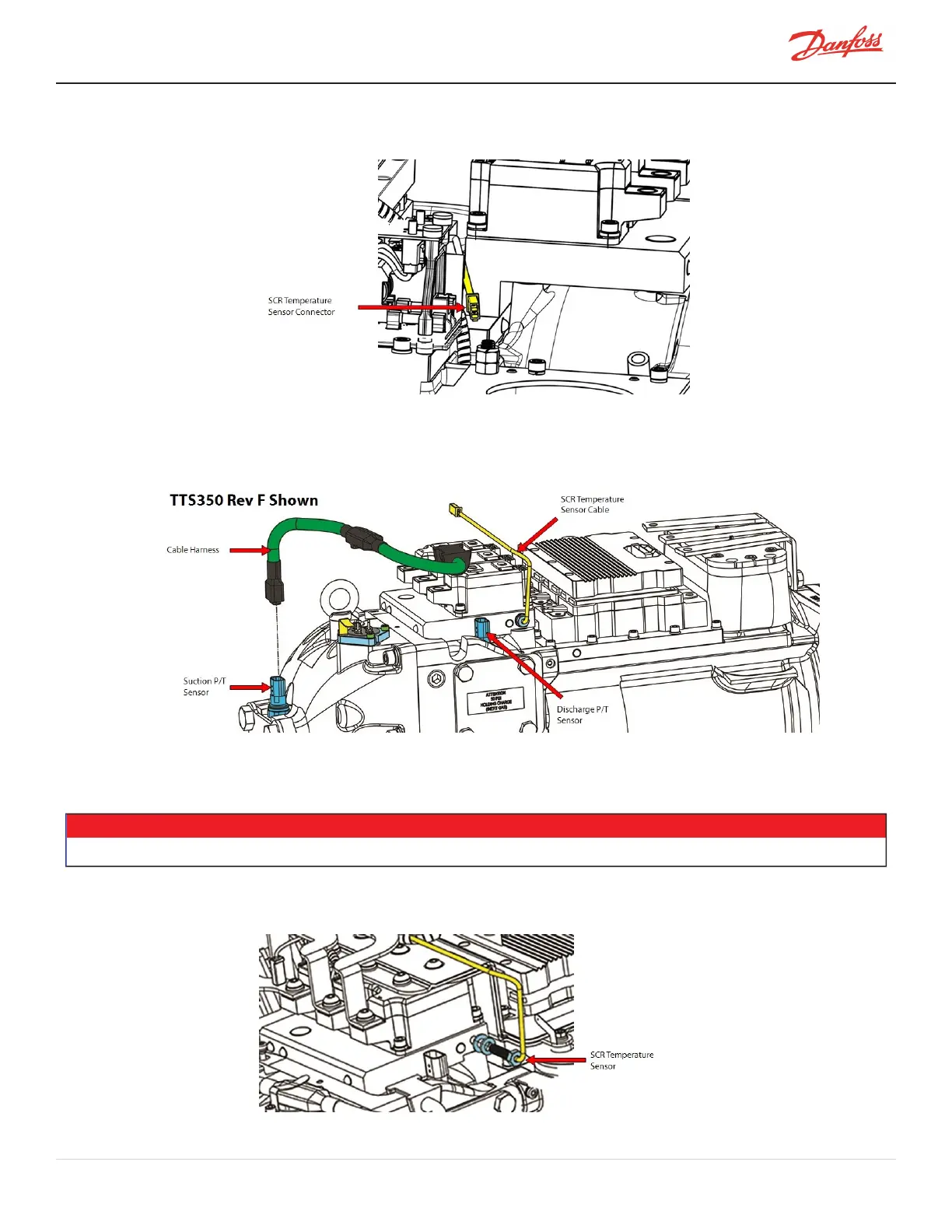

Figure 4-150 SCR Temperature Sensor Connector - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)

5. DisconnectcompressorcontrollercablefromtheDischargeP/Tsensorandmovecableasidetoaccess
SCRtemperaturesensor.
Figure 4-151 Discharge Pressure/Temperature Sensor Connector Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
6. RemovetheSCRTemperatureSensorfromtheSCRCoolingManifold.RefertoFigure4-152SCR
TemperatureSensorRemoval-TTS/TGS/TTH/TGHRev.FandEarlier(ExceptTTS300/TGS230).

• • • CAUTION • • •
BecarefultonotdamagethewireexitingtheSCRTemperatureSensorduringremoval.

Figure 4-152 SCR Temperature Sensor Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)
M-SV-001-EN Rev. H-1/23/2023 Page 147 of 294
