Danfoss TTS350

RefertoFigure2-7CompressorEnergyandControlFlowBlockDiagram-TTSeriesCompressorsforablockdiagram
summaryoftheenergyandvoltagesignalflowthroughthecompressor.
NOTE
TTH/TGHCompressorsareverysimilartoFigure2-7CompressorEnergyandControlFlowBlockDiagram-TTSeriesCompressors.


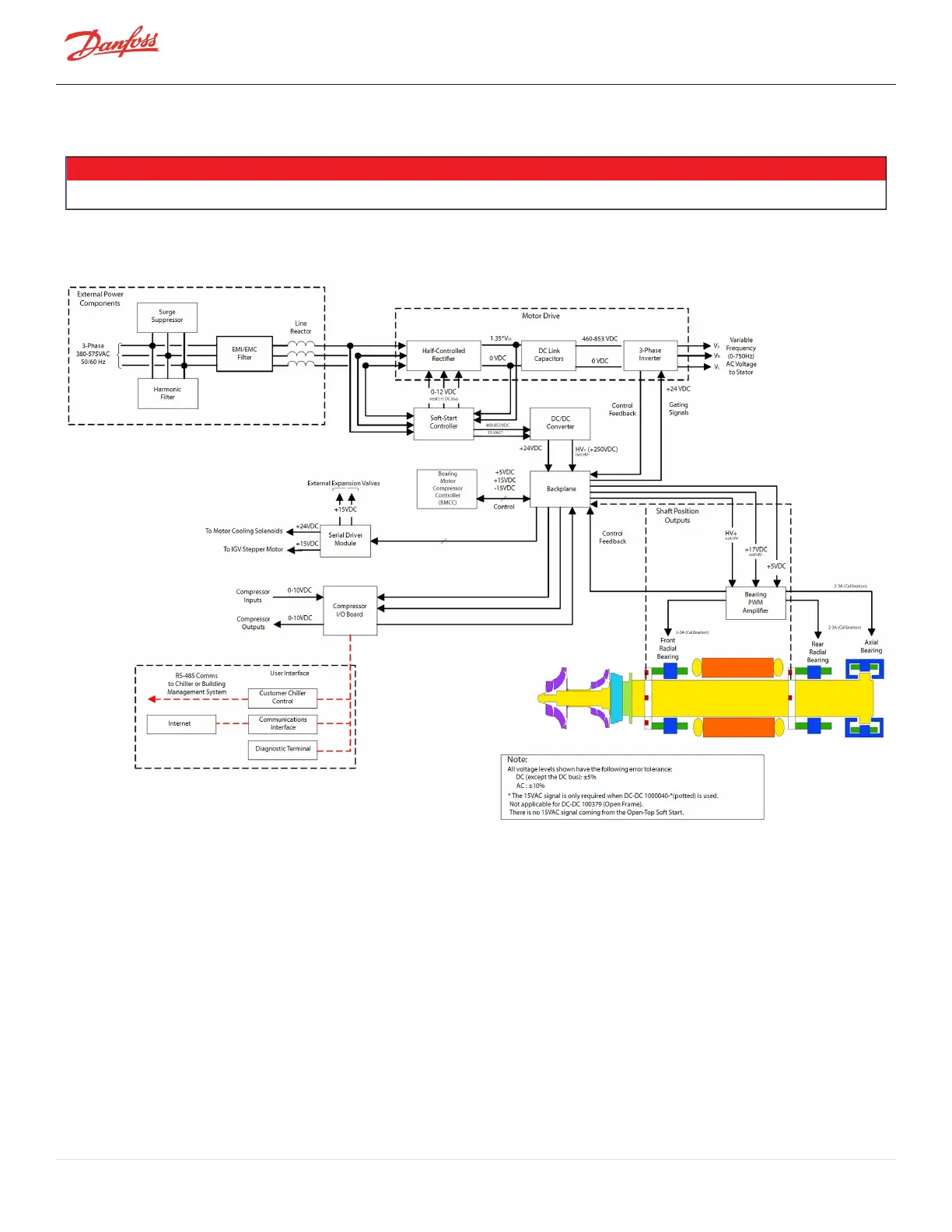

Figure 2-7 Compressor Energy and Control Flow Block Diagram - TT Series Compressors







Page 40 of 294 - M-SV-001-EN Rev. H 1/23/2023
