Danfoss TTS350 User Manual

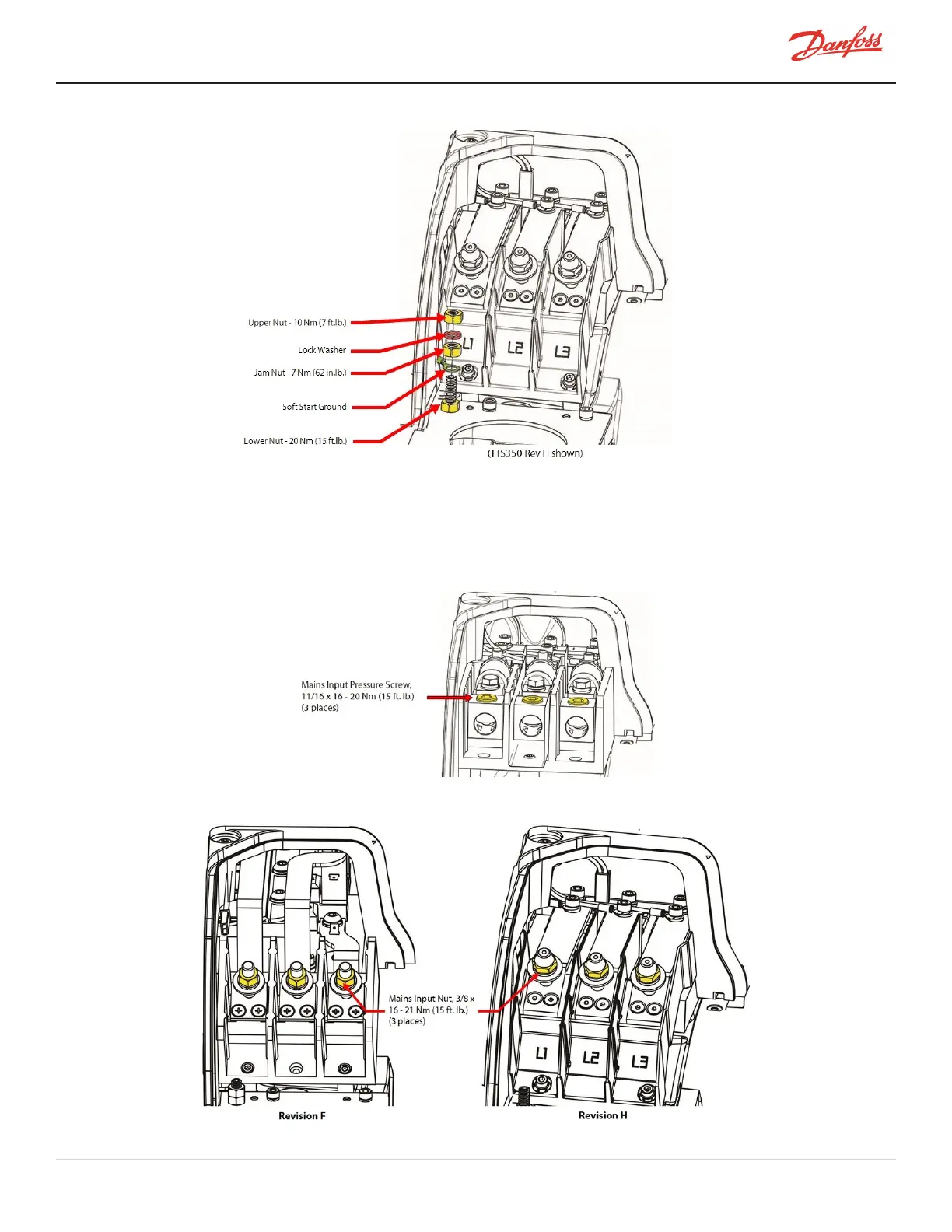

Figure 4-73 Ground Post Nuts
6. InstallthemainsinputcablestotheTerminalBlockandtorqueto20Nm(15ft.lb.)forTTS300/TGS230
compressorsandtorqueallothersto21Nm(15ft.lb.).RefertoFigure4-74MainsInputInstallation-
TTS300/TGS230CompressorsandFigure4-75MainsInputNutInstallation-TTS/TGS/TTH/TGH(Except
TTS300/TGS230).
Figure 4-74 Mains Input Installation - TTS300/TGS230 Compressors
Figure 4-75 Mains Input Nut Installation - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
M-SV-001-EN Rev. H-1/23/2023 Page 97 of 294
