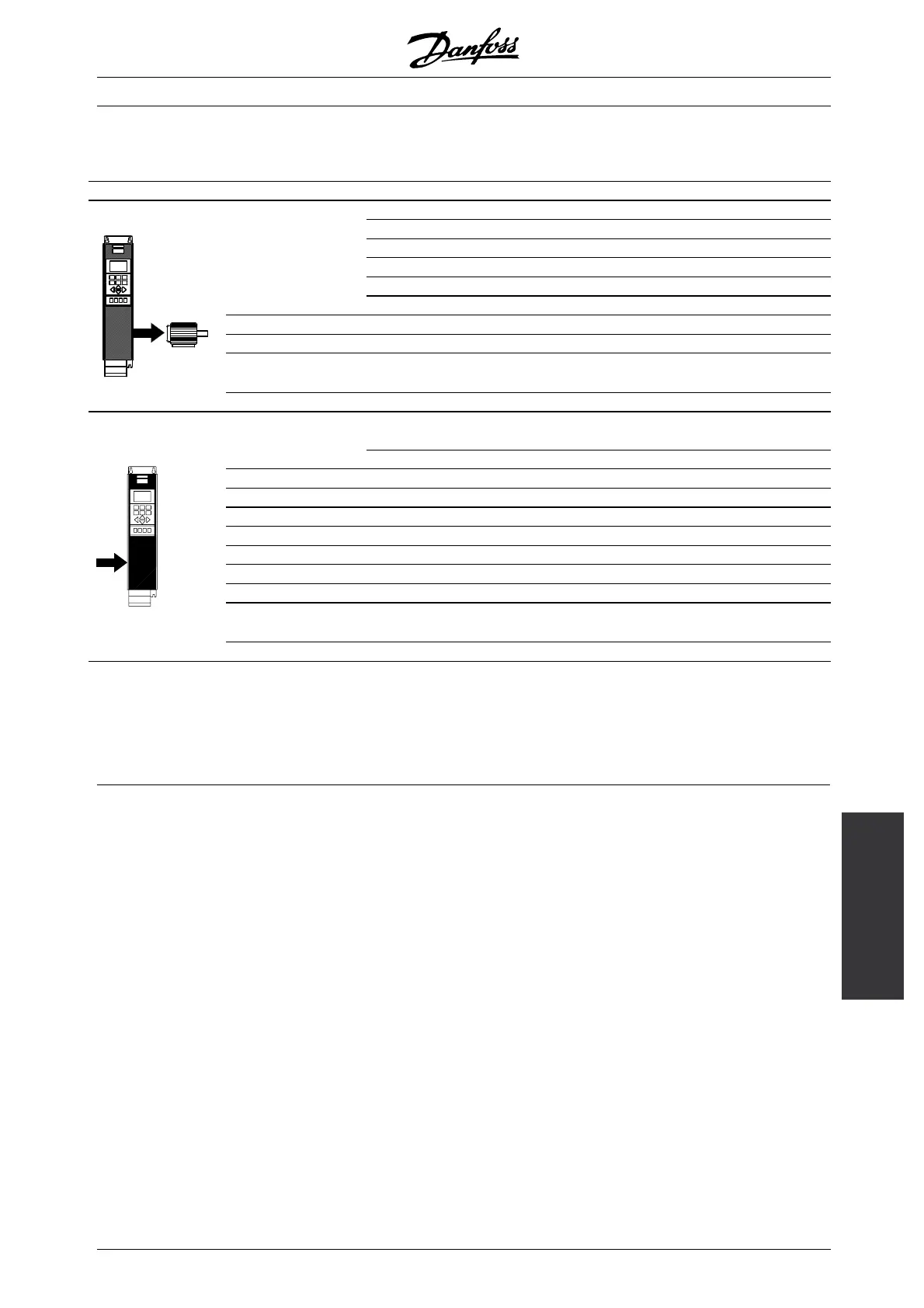

Danfoss VLT 5000 FLUX User Manual

VLT
®
5000 FLUX
Appendix
Bookstyle and Compact, Mains supply
3 x 380 - 500 V
According to international requirements VLT type 5005 5006 5008 5011
Output current I
VLT,N
[A] (380-440 V) 7.2 10 13 16
I
VLT, MAX
(60 s) [A] (380-440 V) 11.5 16 20.8 25.6
I
VLT,N
[A] (441-500 V) 6.3 8.2 11 14.5
I
VLT, MAX
(60 s) [A] (441-500 V) 10.1 13.1 17.6 23.2
Output S
VLT,N
[kVA] (380-440 V) 5.5 7.6 9.9 12.2
S
VLT,N
[kVA] (441-500 V) 5.5 7.1 9.5 12.6
Typi cal shaft ou tp ut P
VLT,N
[kW] 3.0 4.0 5.5 7.5
Typi cal shaft ou tp ut P
VLT,N
[HP] 4 5 7.5 10
Max. cable cross-section to motor,
brake and loadsharing [mm
2
]/[AWG]
2
)
4/10 4/10 4/10 4/10
Rated input current I
L,N
[A] (380 V) 7 9.1 12.2 15.0
I
L,N
[A] (460 V) 6 8.3 10.6 14.0
Max. cable cross-section power [mm
2
]/[AWG]
2)
4/10 4/10 4/10 4/10
Max. pre-fuses [-]/UL
1)
[A] 16/15 25/20 25/25 35/30
Efficiency
3)
0.96 0.96 0.96 0.96
Weight IP 20 EB Bookstyle [kg] 7.5 9.5 9.5 9.5
Weight IP 20 EB Compact [kg] 8.5 10.5 10.5 10.5
Weight IP 54 EB Compact [kg] 12 14 14 14
Power loss at max. load. [W] 139 198 250 295
Enclosure
IP 20/
IP 54
IP 20/
IP 54
IP 20/
IP 54
IP 20/
IP 54
1. For type of fuse see section Fuses.
2. American Wire Gauge.
3. Measured using 30 m screened motor cables at rated load and rated frequency.
MG.55.A6.02 - VLT is a registered Danfoss trademark
147
