Danfoss VLT 6000 HVAC Series User Manual

References and Limits 200-228

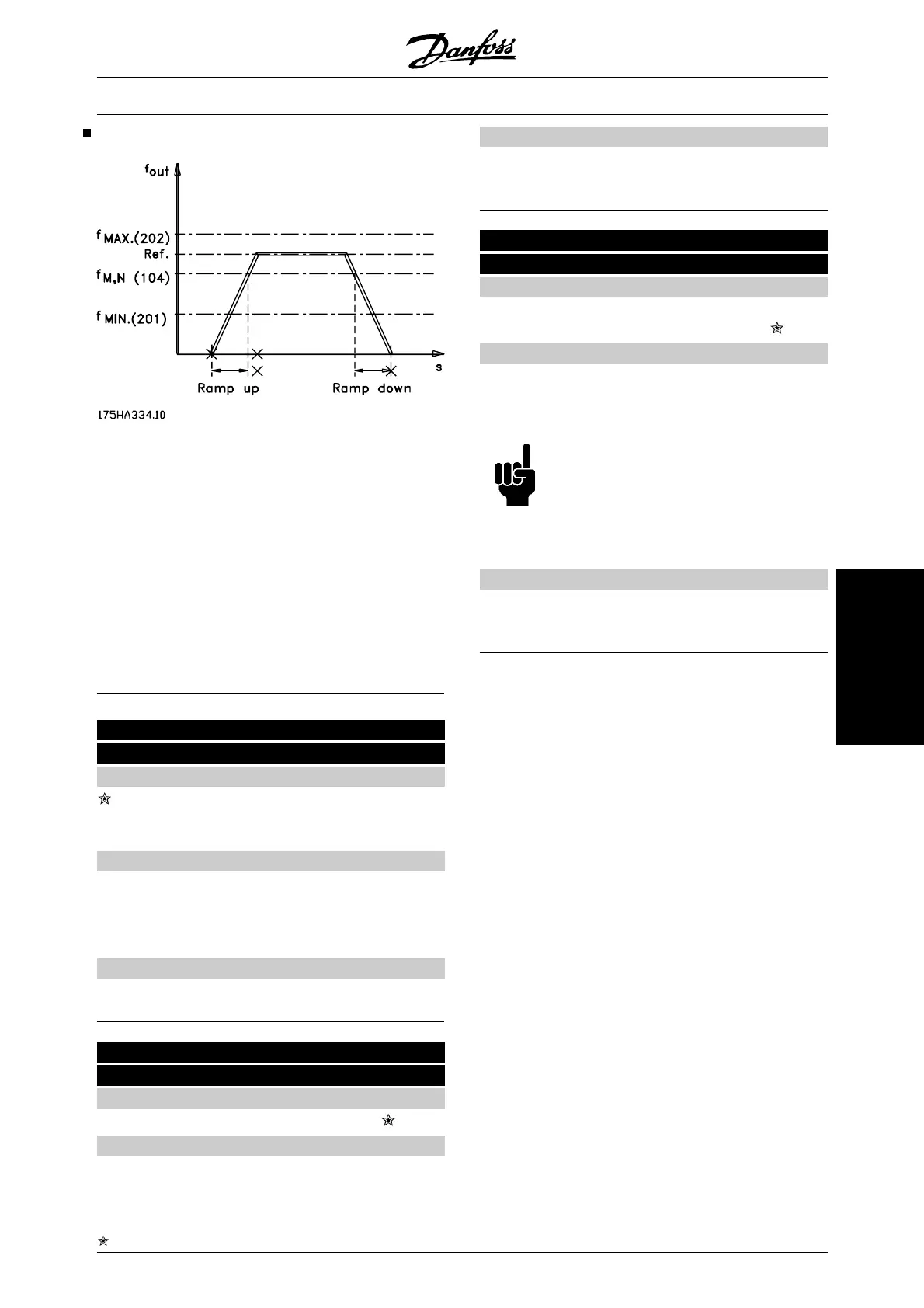

In this parameter group, the frequency and reference
range of the frequency converter are established. This
parameter group also includes:
-
Setting of ramp times
-
Choice of four preset references
-
Possibility of programming four bypass fre-
quencies.
-
Setting of maximum current to motor.
-
Setting of warning limits for current, frequen-
cy, reference and feedback.
200 Output frequency range
(FREQUENCY RANGE)
Value:
0 - 120 Hz (0 - 120 HZ) [0]
0 - 1000 Hz (0 - 1000 HZ) [1]
Function:
This is where to select the maximum output frequency
range to be set in parameter 202 Output frequency high
limit, f
MAX
.
Description of choice:
Select the required output frequency range.
201
Output frequency low limit, f
MIN
(MIN. FREQUENCY)
Value:
0.0 - f
MAX
0.0 HZ
Function:
This is where to select the minimum output frequency.
Description of choice:
A value from 0.0 Hz to the Output frequency high limit,
f
MAX
frequency set in parameter 202 can be selected.
202
Output frequency high limit, f
MAX
(MAX. FREQUENCY)
Value:
f
MIN
- 120/1000 Hz
(par. 200 Output frequency range)
50 Hz
Function:
In this parameter, a maximum output frequency can be
selected that corresponds to the highest speed at
which the motor can be.
NB!
The output frequency of the frequency
converter can never assume a value high-
er than 1/10 of the switching frequency
(parameter 407 Switching frequency.
Description of choice:
A value from f
MIN
to the choice made in parameter 200
Output frequency range can be selected.
VLT
®
6000 HVAC Series
= factory setting, () = display text, [] = value for use in communication via serial communication port
MG.61.B5.02 - VLT
®
is a registered Danfoss trademark 115
Programming
