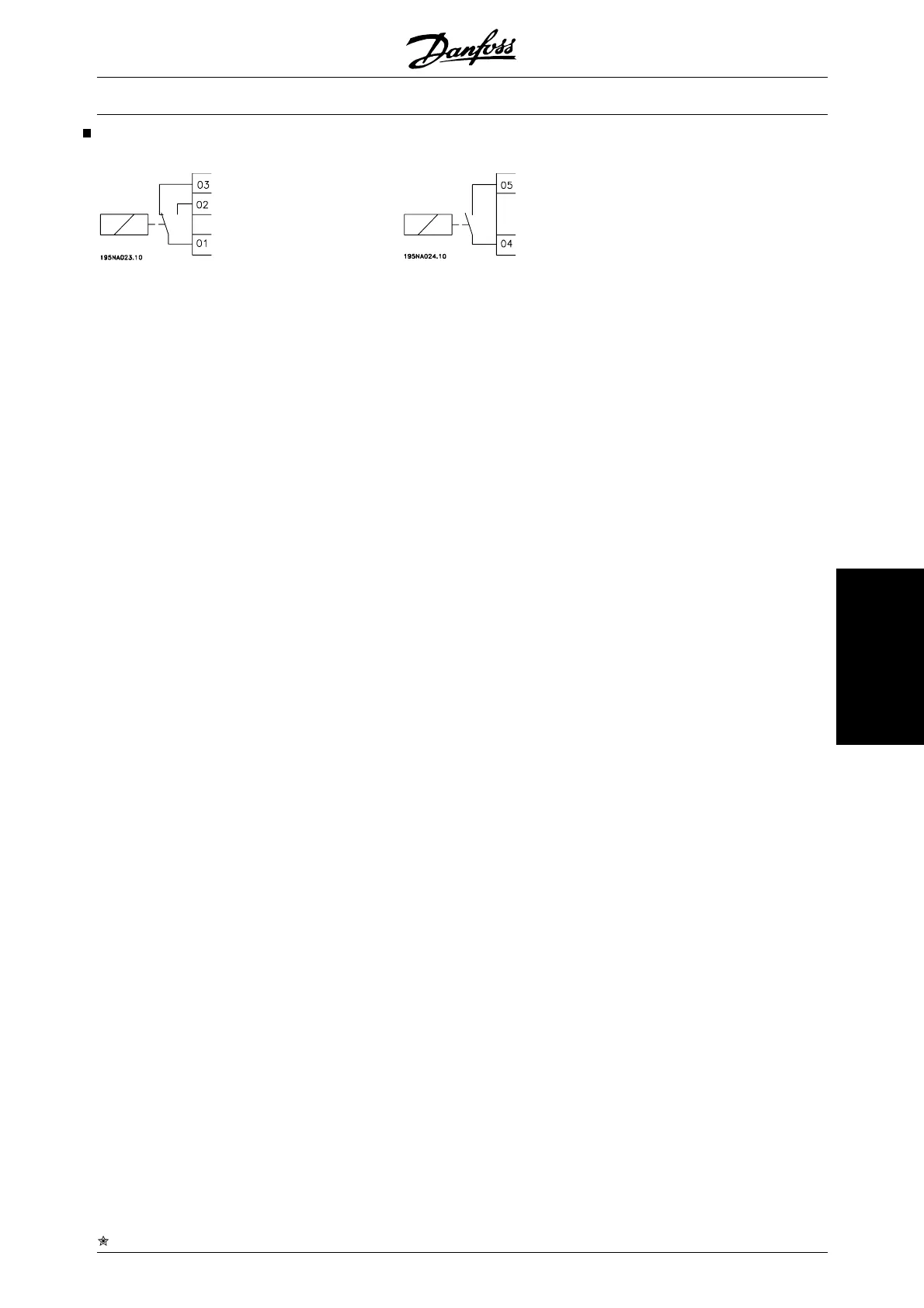

Relay outputs
Relay outputs 1 and 2 can be used to give the present
status or a warning.
Relay 1 Relay 2
1 - 3 break, 1 - 2 make 4 - 5 make
Max. 240 V AC, 2 Amp. Max. 50 V AC, 1 A, 60 VA.
The relay is placed with
the mains and motor ter-
minals.
Max. 75 V DC, 1 A, 30 W.
The relay is placed on the control card, see
Electrical installation, control cables.
VLT
®
6000 HVAC Series
= factory setting, () = display text, [] = value for use in communication via serial communication port
