Danfoss VLT 6000 HVAC Series User Manual

External Ref
min
- Ref
max
⇒ 0-32000 p which
generates an output signal proportional to the resulting
reference value in the interval Minimum reference,
Ref
MIN
- Maximum reference, Ref
MAX
(parameters
204/205).
FB
MIN
-FB
MAX
⇒ 0-20 mA and
FB
MIN
-FB
MAX
⇒ 4-20 mA and
FB
MIN
-FB
MAX
⇒ 0-32000 p, an output signal propor-
tional to the reference value in the interval Minimum
feedback, FB
MIN
- Maximum feedback, FB
MAX
(param-
eters 413/414) is obtained.
0 - I
VLT, MAX
⇒ 0-20 mA and
0 - I
VLT, MAX
⇒ 4-20 mA and
0 - I
VLT, MAX
⇒ 0-32000 p, an output signal proportional
to the output current in the interval 0 - I
VLT,MAX
is ob-
tained.
0 - P
NOM
⇒ 0-20 mA and
0 - P
NOM
⇒ 4-20 mA and
0 - P
NOM
⇒ 0-32000p, which generates an output signal
proportional to the present output power. 20 mA cor-
responds to the value set in parameter 102 Motor
power, P
M,N
.
0.0 - 100.0%
⇒ 0 - 20 mA and
0.0 - 100.0%
⇒ 4 - 20 mA and
0.0 - 100.0%
⇒ 0 - 32.000 pulses which generates an
output signal proportional to the value (0.0-100.0%)
received by serial communication. Writing from Serial
communication is done to parameter 364 (terminal 42)
and 365 (terminal 45). This function is limited to the
following protocols: FC bus, Profibus, LonWorks FTP,
DeviceNet, Metasys N2 and Modbus RTU.
Fire Mode active is indicated on the output when ac-
tivated via input 16 or 17.
Fire Mode bypass is indicated on the output when
Fire Mode has been active and a certain trip occurred
(please see description of Fire Mode). A delay for this
indication can be programmed in parameter 432.
Please select Fire Mode bypass in parameter 430 to
enable this function.

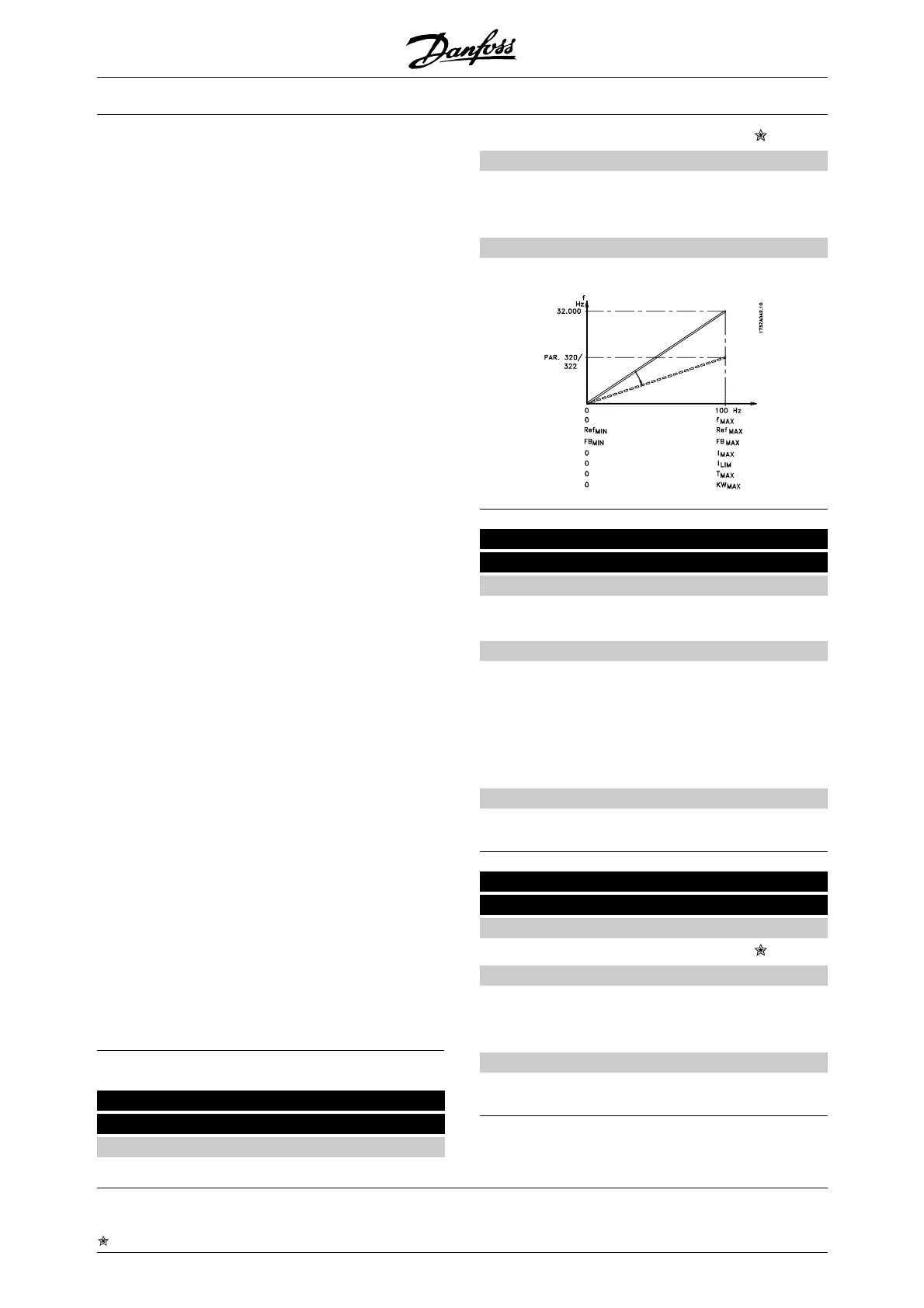

320 Terminal 42, output, pulse scaling
(AO 42 PULS SCALE)
Value:
1 - 32000 Hz
5000 Hz
Function:
This parameter allows scaling of the pulse output sig-
nal.
Description of choice:
Set the desired value.
321 Terminal 45, output
(AO 45 FUNCTION)
Value:
See description of parameter 319 Terminal 42,
Output.
Function:
This output can function both as a digital or an analog
output. When used as a digital output (data value [0]-
[26]) it generates a 24 V (max. 40 mA) signal. For the
analog outputs (data value [27] - [41]) there is a choice
of 0-20 mA, 4-20 mA or a pulse sequence.
Description of choice:
See description of parameter 319 Terminal 42, Output.
322 Terminal 45, output, pulse scaling
(AO 45 PULS SCALE)
Value:
1 - 32000 Hz
5000 Hz
Function:
This parameter allows scaling of the pulse output sig-
nal.
Description of choice:
Set the desired value.
VLT
®
6000 HVAC Series
= factory setting, () = display text, [] = value for use in communication via serial communication port
134 MG.61.B5.02 - VLT
®
is a registered Danfoss trademark
