Present output frequency
The value of the present output frequency of the fre-
quency converter at any given time is transmitted as a
16-bit word. The value is transmitted in the form of
whole numbers 0 - ±32767 (±200 %).
16384 (4000 Hex) corresponds to 100 %.
The output frequency has the following format:
0-16384 (4000 Hex) •0-100 % (Par. 201 Output fre-
quency low limit - Par. 202 Output frequency high limit).

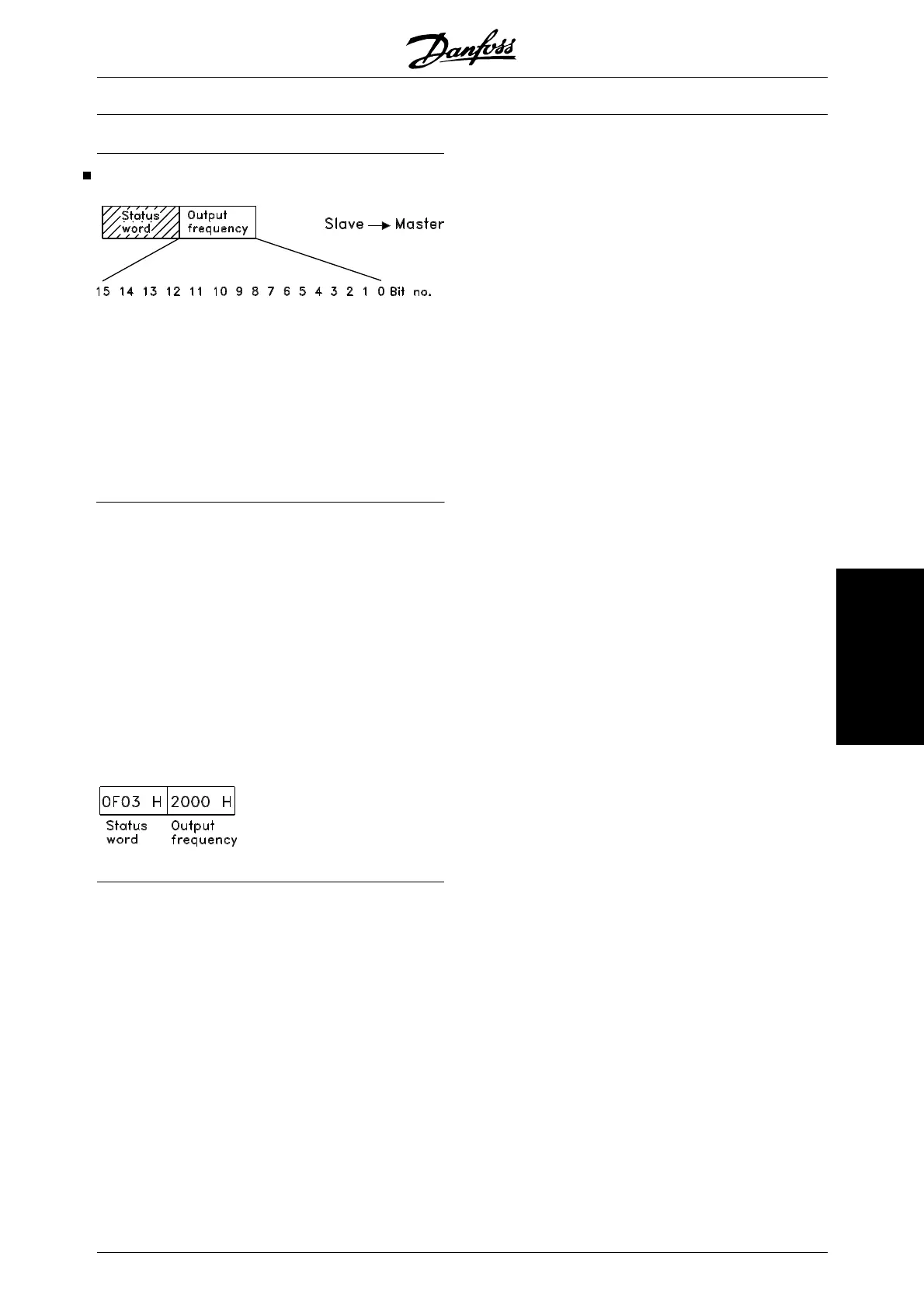

Example - Status word and present output frequency:
and present output frequency: The master receives a
status message from the frequency converter saying
that the present output frequency is 50 % of the output
frequency range.
Par. 201 Output fre-
quency low limit =
0 Hz
Par. 202 Output fre-
quency high limit =
50 Hz
Status word = 0F03 Hex. Status message
Output frequency = 2000 Hex. 50 % of the fre-
quency range, correspond-
ing to 25 Hz.
VLT
®
6000 HVAC Series
MG.61.B5.02 - VLT
®
is a registered Danfoss trademark 165
Programming
