Mechanical installation
Please pay attention to the requirements
that apply to integration and field mount-
ing kit, see the below list. The information
given in the list must be observed to avoid
serious damage or injury, especially when
installing large units.
The frequency converter must be installed vertically.
The frequency converter is cooled by means of air cir-
culation. For the unit to be able to release its cooling
air, the minimum distance over and below the unit
must be as shown in the illustration below.
To protect the unit from overheating, it must be ensur-
ed that the ambient temperature does not rise above
the max. temperature stated for the frequency convert-
er and that the 24-hour average temperature is not
exceeded. The max. temperature and 24-hour average
can be seen from the General Technical Data.
If the ambient temperature is in the range of 45°C -55°
C, derating of the frequency converter will become rel-
evant, see Derating for ambient temperature.
The service life of the frequency converter will be re-
duced if derating for ambient temperature is not taken
into account.
Installation of VLT 6002-6652

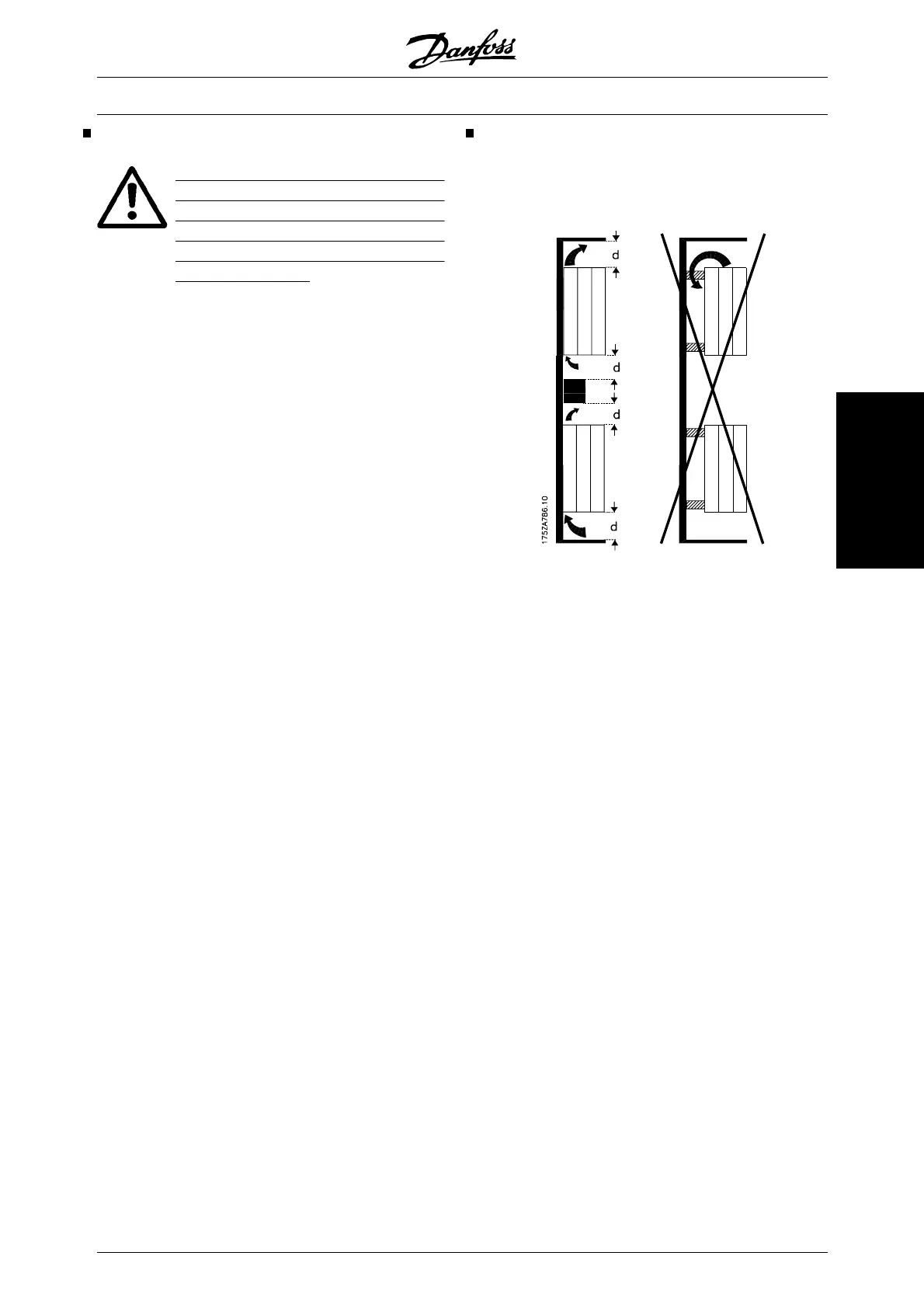

All frequency converters must be installed in a way that
ensures proper cooling.
Cooling
All Bookstyle and Compact units require a minimum
space above and below the enclosure.
VLT
®
6000 HVAC Series
MG.61.B5.02 - VLT
®
is a registered Danfoss trademark 65
