Control unit LCP
The front of the frequency converter features a control
panel - LCP(Local Control Panel). This is a complete
interface for operation and programming of the fre-
quency converter.
The control panel is detachable and can - as an alter-
native - be installed up to 3 metres away from the
frequency converter, e.g. on the front panel, by means
of a mounting kit option.

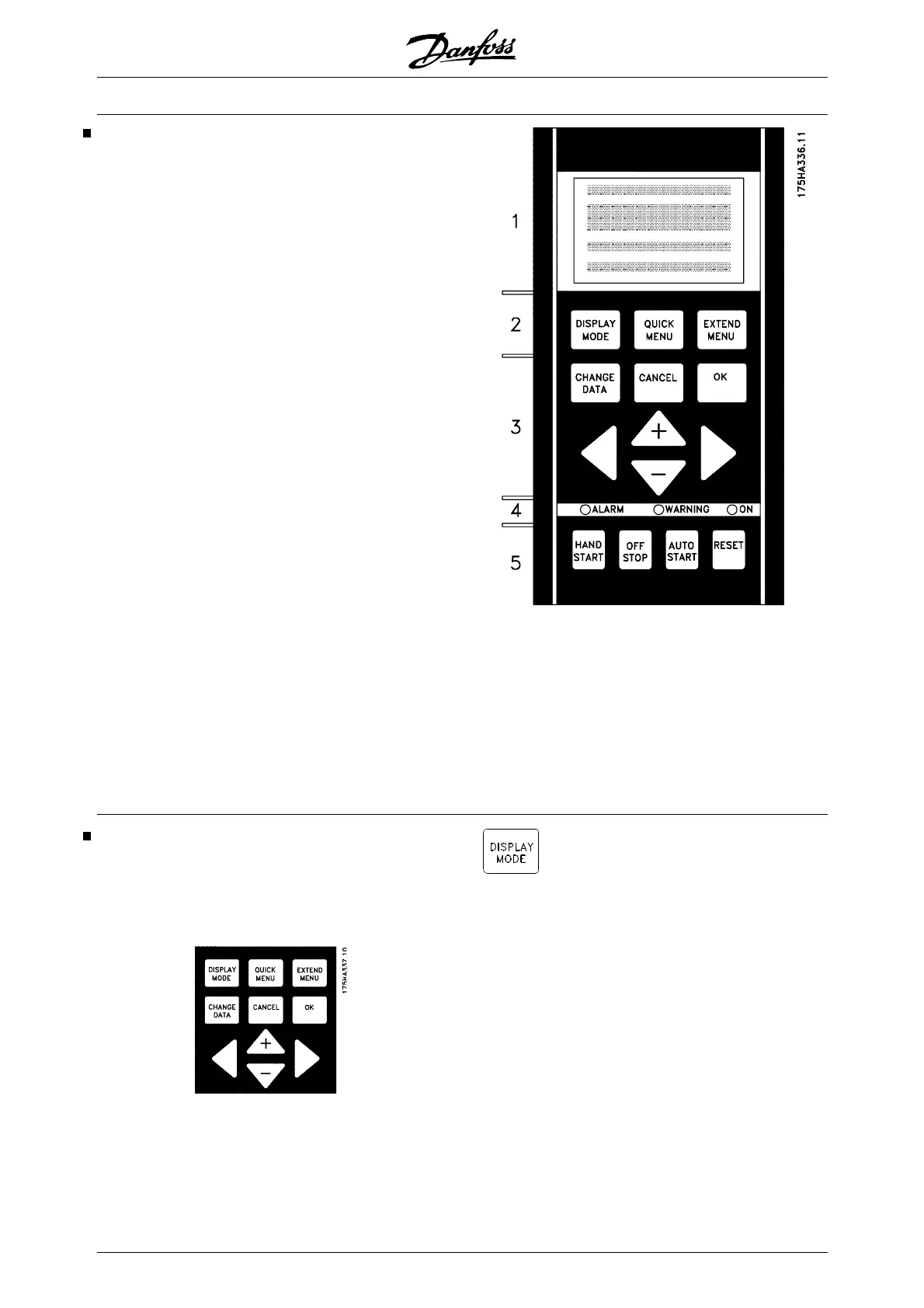

The functions of the control panel can be divided into
five groups:
1. Display
2. Keys for changing display mode
3. Keys for changing program parameters
4. Indicator lamps
5. Keys for local operation
All data are indicated by means of a 4-line alphanu-
meric display, which, in normal operation, is able to
show 4 operating data values and 3 operating condi-
tion values continuously. During programming, all the
information required for quick, effective parameter
Setup of the frequency converter will be displayed. As
a supplement to the display, there are three indicator
lamps for voltage (ON), warning (WARNING) and
alarm (ALARM), respectively.
All frequency converter parameter Setups can be
changed immediately via the control panel, unless this
function has been programmed to be Locked [1] via
parameter 016 Lock for data change or via a digital in-
put, parameters 300-307 Data change lock.
Control keys for parameter setup
The control keys are divided into functions. This
means that the keys between display and indicator
lamps are used for parameter Setup, including select-
ing the display indication during normal operation.
[DISPLAY MODE] is used for selecting
the indication mode of the display or
when returning to the Display mode
from either the Quick menu or the Ex-
tend menu mode.
VLT
®
6000 HVAC Series
92 MG.61.B5.02 - VLT
®
is a registered Danfoss trademark
