Danfoss VLT 6000 HVAC Series User Manual

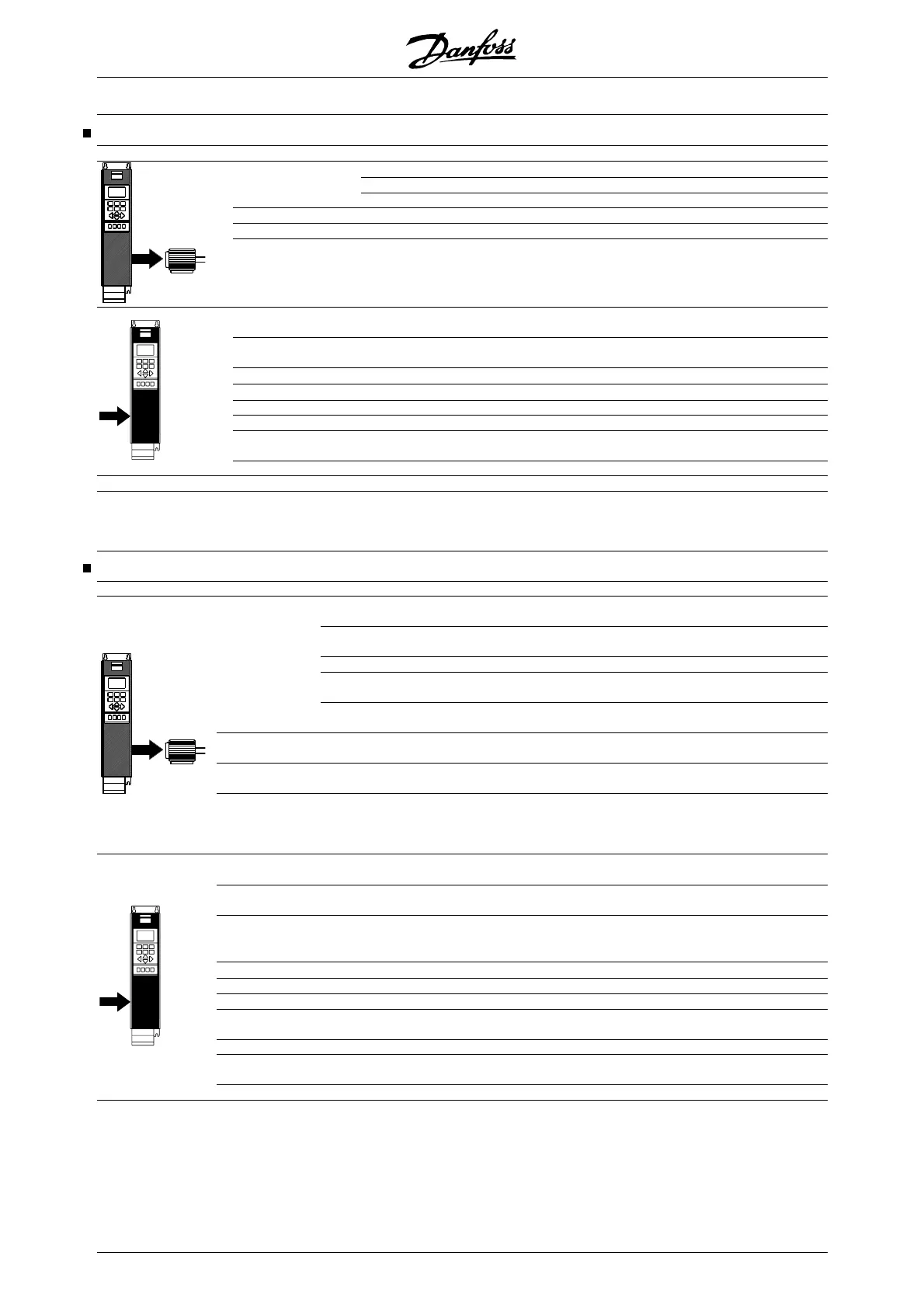

Technical data, mains supply 3 x 200-240V
According to international requirements VLT type 6002 6003 6004 6005 6006 6008 6011
Output current
4)
I
VLT,N
[A]
6.6 7.5 10.6 12.5 16.7 24.2 30.8
I
VLT, MAX
(60 s) [A]
7.3 8.3 11.7 13.8 18.4 26.6 33.9
Output power (240 V) S
VLT,N
[kVA]
2.7 3.1 4.4 5.2 6.9 10.1 12.8
Typical shaft output P
VLT,N
[kW] 1.1 1.5 2.2 3.0 4.0 5.5 7.5
Typical shaft output
P
VLT,N
[HP]
1.5 2 3 4 5 7.5 10
Max. cable cross-sec-
tion to motor
and DC-bus
[mm
2
]/[AWG]
4/10 4/10 4/10 4/10 10/8 16/6 16/6
Max. input current
(200 V) (RMS)I
L,N
[A]
6.0 7.0 10.0 12.0 16.0 23.0 30.0
Max. cable
cross-section power
[mm
2
]/[AWG]
2 )
4/10 4/10 4/10 4/10 4/10 16/6 16/6
Max. pre-fuses
[-]/UL
1)
[A]
16/10 16/15 25/20 25/25 35/30 50 60
Efficiency
3)
0.95
0.95 0.95 0.95 0.95 0.95 0.95
Weight IP 20 [kg] 7 7 9 9 23 23 23
Weight IP 54 [kg] 11.5 11.5 13.5 13.5 35 35 38
Power loss at
max. load. [W]
Total 76 95 126 172 194 426 545
Enclosure VLT type IP 20 / IP 54
1. For type of fuse, see section Fuses.
2. American Wire Gauge.
3. Measured using 30 m screened motor cables at rated load and rated frequency.
4. Current ratings fulfill UL requirements for 208-240 V.
Technical data, mains supply 3x200-240V
According to international requirements VLT type 6016 6022 6027 6032 6042 6052 6062
Output current
4)
I
VLT,N
[A]
(200-230 V)
46.2 59.4 74.8 88.0 115 143 170
I
VLT, MAX
(60 s)
[A] (200-230 V)
50.6 65.3 82.3 96.8 127 158 187
I
VLT,N
[A] (240 V)
46.0 59.4 74.8 88.0 104 130 154
I
VLT, MAX
(60 s)
[A] (240 V)
50.6 65.3 82.3 96.8 115 143 170
Output power
S
VLT,N
[kVA]
(240 V)
19.1 24.7 31.1 36.6 43.2 54 64
Typical shaft out-
put
P
VLT,N
[kW] 11 15 18.5 22 30 37 45
Typical shaft out-
put
P
VLT,N
[HP] 15 20 25 30 40 50 60
Max. cable cross-
section to motor
and DC-bus
[mm
2
]/[AWG]
2) 5)
Copper
Aluminium
6)
16/6
16/6
35/2
35/2
35/2
35/2
50/0
50/0
70/1/0
95/3/0
5)
95/3/0
90/250
mcm
5)
120/4/0
120/300
mcm
5)
Min. cable cross-section to motor
and DC-bus [mm
2
]/[AWG]
2)
10/8 10/8 10/8 16/6 10/8 10/8 10/8
Max. input current (200 V) (RMS)
I
L,N
[A]
46.0
59.2 74.8 88.0 101.3 126.6 149.9
Max. cable cross-
section power
[mm
2
]/[AWG]
2) 5)
Copper
Aluminium
6)
16/6
16/6
35/2
35/2
35/2
35/2
50/0
50/0
70/1/0
95/3/0
5)
95/3/0
90/250
mcm
5)
120/4/0
120/300
mcm
5)
Max. pre-fuses
[-]/UL
1)
[A]
60 80 125 125 150 200 250
Efficiency
3)
0.95
0.95 0.95 0.95 0.95 0.95 0.95
Weight IP 00 [kg] - - - - 90 90 90
Weight IP 20/
NEMA 1
[kg] 23 30 30 48 101 101 101
Weight IP 54 [kg] 38 49 50 55 104 104 104
Power loss at
max. load.
[W] 545 783 1042 1243 1089 1361 1613
Enclosure IP 00/IP 20/NEMA 1/IP 54
1. For type of fuse, see section Fuses.
2. American Wire Gauge.
3. Measured using 30 m screened motor cables at rated load and rated frequency.
4. Current ratings fulfill UL requirements for 208-240 V.
5. Connection stud 1 x M8 / 2 x M8.
6. Aluminium cables with cross section above 35 mm
2
must be connected by use of an Al-Cu connector.
VLT
®
6000 HVAC Series
48 MG.61.B5.02 - VLT
®
is a registered Danfoss trademark
