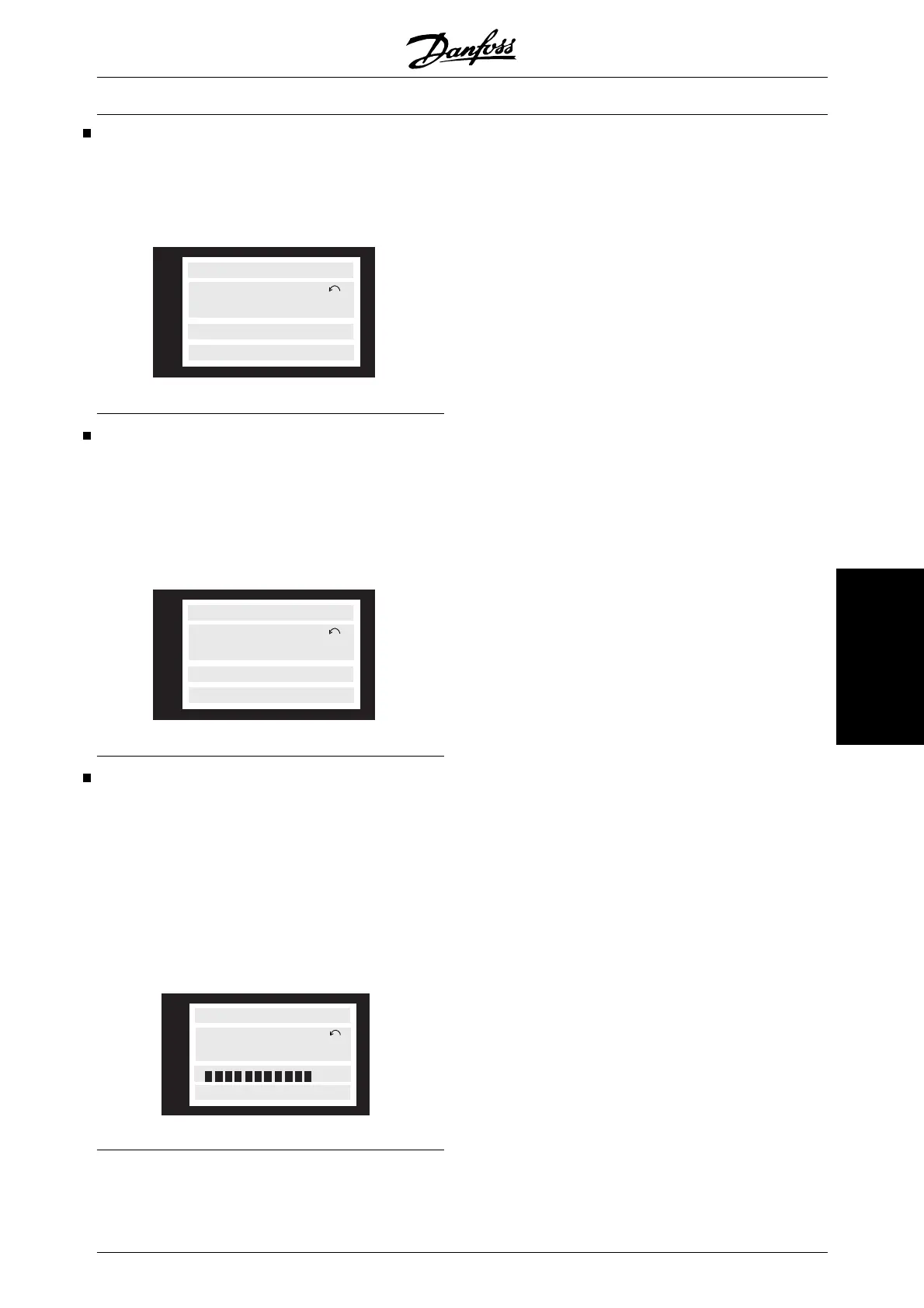

Display mode II:
This display mode makes it possible to have three op-
erating data values displayed at the same time in line
1. The operating data values are determined in pa-
rameters 007-010 Display readout.
175ZA685.10
50.0Hz
SETUP
1
AUTO REMOTE RUNNING
100% 7.8A 5.9kW
Display mode III:
This display mode is active as long as the [DISPLAY
MODE] key is kept depressed. In the first line, operat-
ing data names and units of operating data are dis-
played. In the second line, operating data 2 remains
unchanged. When the key is released, the different
operating data values are shown.
175ZA695.10
50.0Hz
SETUP
1
AUTO REMOTE RUNNING
REF% CURR.A.POW.,KW
Display mode IV:
This display mode is only active in connection with lo-
cal reference, see also Reference handling. In this
display mode, the reference is determined via the [+/-]
keys and control is carried out by means of the keys
underneath the indicator lamps. The first line indicates
the required reference. The third line gives the relative
value of the present output frequency at any given time
in relation to the maximum frequency. The display is
in the form of a bar graph.
176FA156.10
40.0Hz
HAND LOCAL RUNNING
USE +/- 40Hz
SETUP
1
0
----60
VLT
®
6000 HVAC Series
MG.61.B5.02 - VLT
®
is a registered Danfoss trademark 95
