Danfoss VLT AHF 005

908 ±4 mm [35.7 ±0.2 in]
370.0 ±2.5 mm [14.6 ±0.1 in]
685.0 ±2.5 mm [27.0 ±0.1 in]
69.0 ±2.5 mm [2.7 ±0.1 in]
240.0 ±1 mm [9.4 ±0.04 in]
226.8 ±2.5 mm [8.9 ±0.1 in]
210.5 ±1 mm [8.3 ±0.04 in] 210.5 ±1 mm [8.3 ±0.04 in]
9.0 ±1 mm [0.4 ±0.04 in] 9.0 ±1 mm [0.4 ±0.04 in]
956.8 ±4.0 mm [37.7 ±0.16 in]
418.0 ±2.5 mm [16.5 ±0.1 in]
335.9 ±2.5 mm [13.2 ±0.1 in]
393.0 ±2.5 mm [15.5 ±0.1 in]
130BE499.10

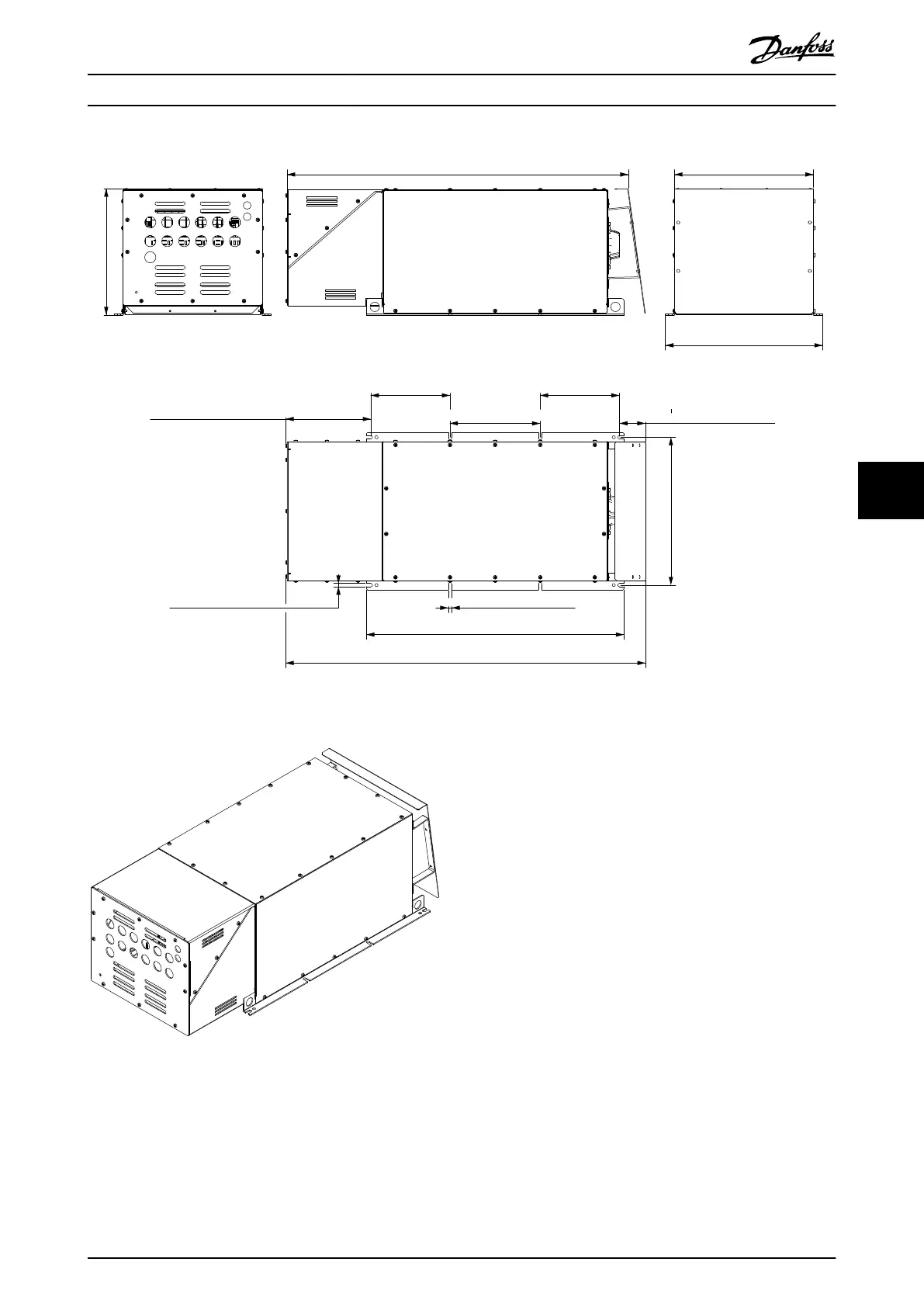

Illustration 7.87 IP21 X5 Internal Fan 2
130BE500.10
Illustration 7.88 IP21 X5 Internal Fan 2, 3D View
