Danfoss VLT AHF 005

7.2.3 IP21 Enclosures
444 ±2.5 mm [17.5 ±0.1 in]
278 ±2.5 mm [10.9 ±0.1 in]
151 ±2.5 mm [6.0 ±0.1 in]
163 ±1.0 mm [6.4 ±0.04 in]
55 ±2.5 mm [2.2 ±0.1 in]
196 ±2 mm [7.7 ±0.1 in]
190 ±2 mm [7.5 ±0.1 in]
162 ±2.5 mm [6.4 ±0.1 in]
409 ±2.5 mm [16.1 ±0.1 in]
481 ±2.5 mm [18.9 ±0.1 in]
212 ±2.5 mm [8.3 ±0.1 in]
130BE451.10

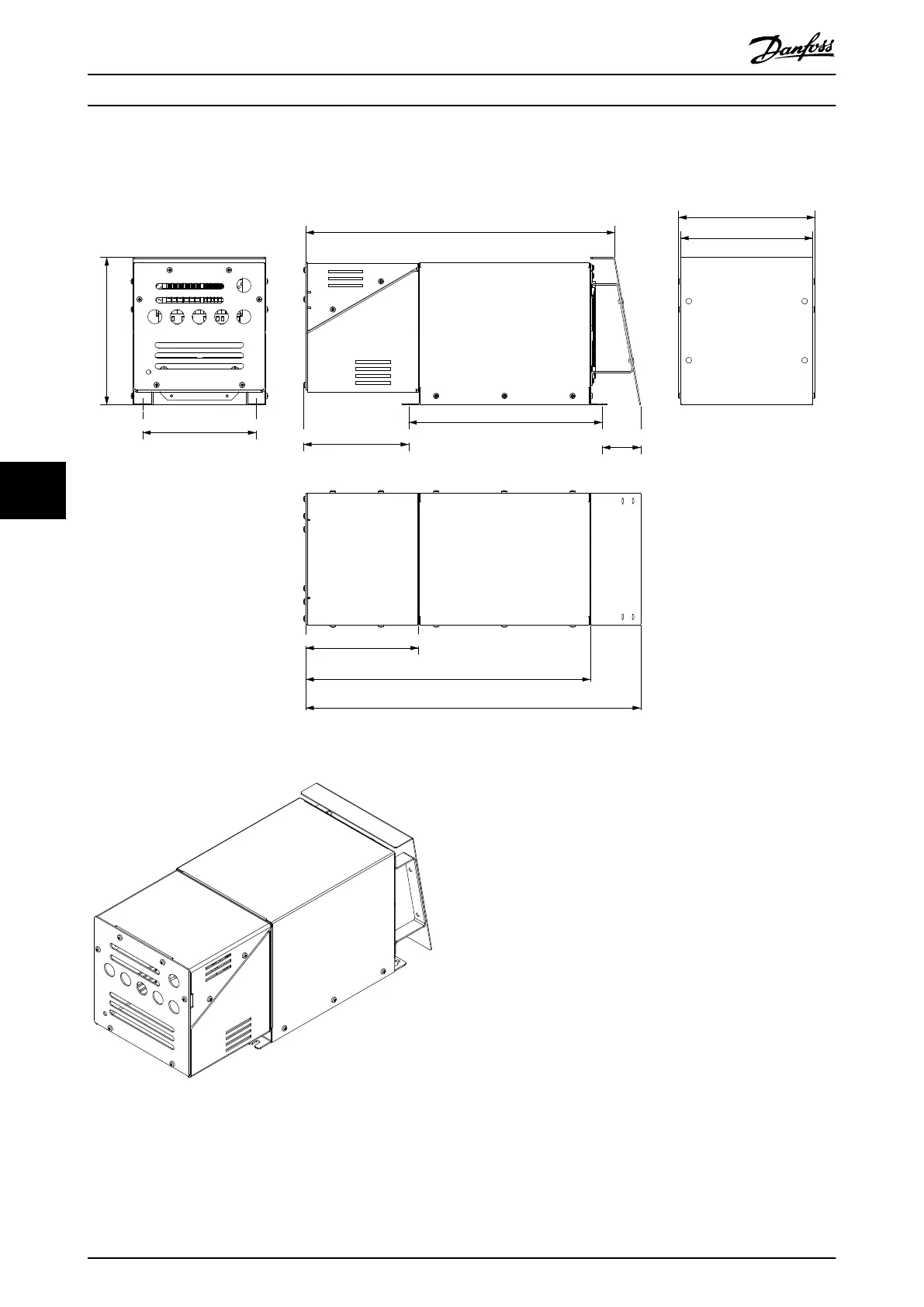

Illustration 7.61 IP21 X1 Internal Fan 1
130BE452.10
Illustration 7.62 IP21 X1 Internal Fan 1, 3D View
Specications
VLT
®
Advanced Harmonic Filter AHF 005/AHF 010
