AHF lter type Terminals
Mains voltage AHF Wire connctions to transformer
230 V X6–X12
380–415 V X6–X13
440–480 V X6–X14
500 V X6–X14
525–575 V X6–X15
600 V X6–X16
690 V X6–X17
Table 5.11 Control Voltage Setting, IP21/NEMA1 Kit with
Contactor

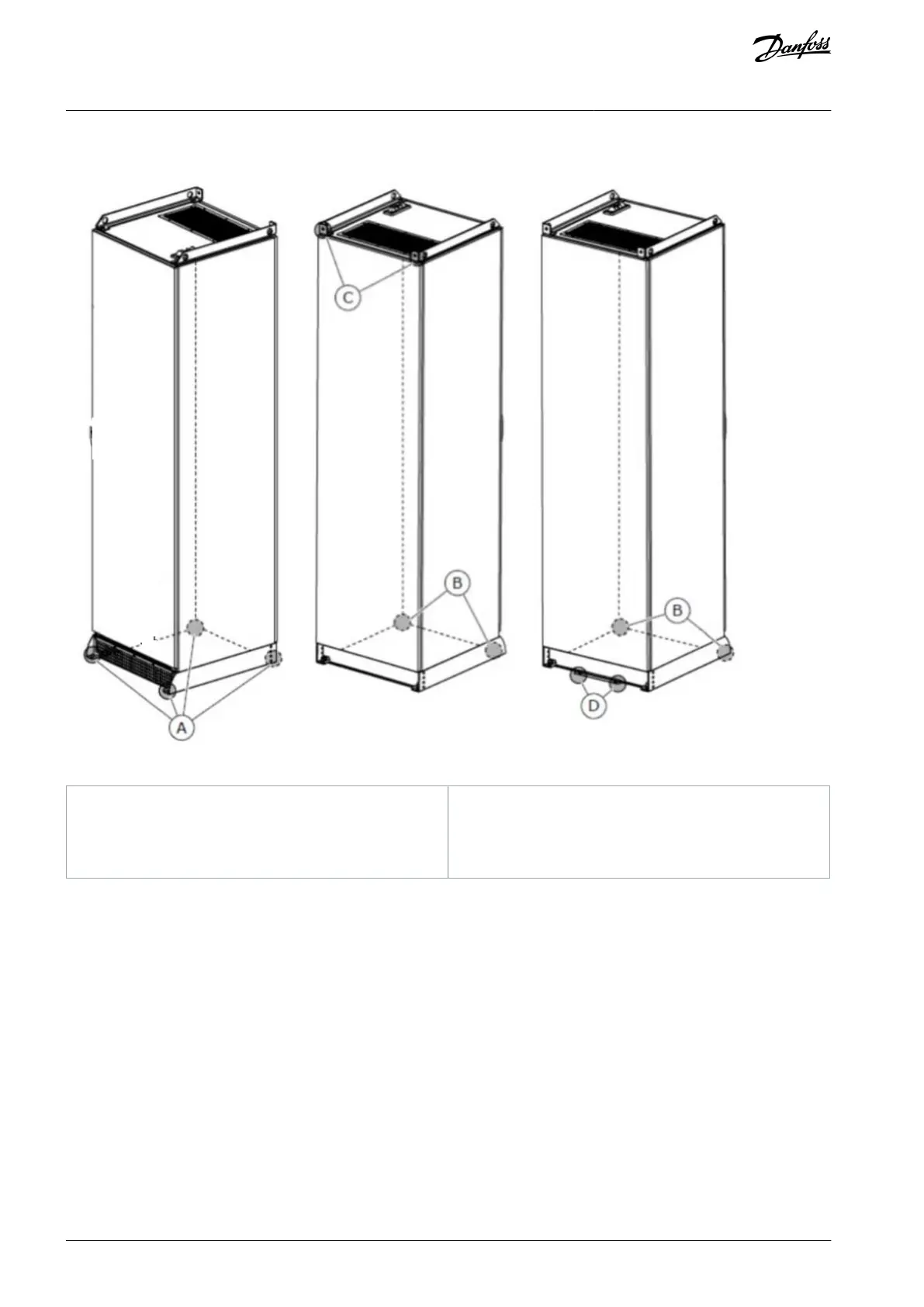

5.3.2 Backplate for IP20
To avoid false airow when mounting the lter on rails,
order a backplate. For more information, see
chapter 4.1.4 Ventilation and Cooling Requirements.
Ordering number Backplate
130B3283 X1
130B3284 X2
130B3285 X3
130B3286 X4
130B3287 X5 and X6
130B3288 X7 and X8
Table 5.12 Selection Table, Backplate
Selection of Advanced Harmo...
VLT
®
Advanced Harmonic Filter AHF 005/AHF 010
46 Danfoss A/S © 10/2016 All rights reserved. MG80C502
