Danfoss VLT AHF 005

1130 ±4.0 mm [44.5 ±0.16 in]
420.0 ±2.5 mm [16.5 ±0.1 in]
800.0 ±2.5 mm [31.5 ±0.1 in]
53.8 ±2.5 mm [2.1 ±0.1 in]
300.0 ±1.0 mm [11.8 ±0.04 in]
323.1 ±2.5 mm [12.7 ±0.1 in]
240.0 ±1.0 mm [9.4 ±0.04 in]240.0 ±1.0 mm [9.4 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
1157 ±4.0 mm [45.6 ±0.16 in]
468.0 ±2.5 mm [18.4 ±0.1 in]
467.6 ±2.5 mm [18.4 ±0.1 in]
443.0 ±2.5 mm [17.4 ±0.1 in]
130BE515.10

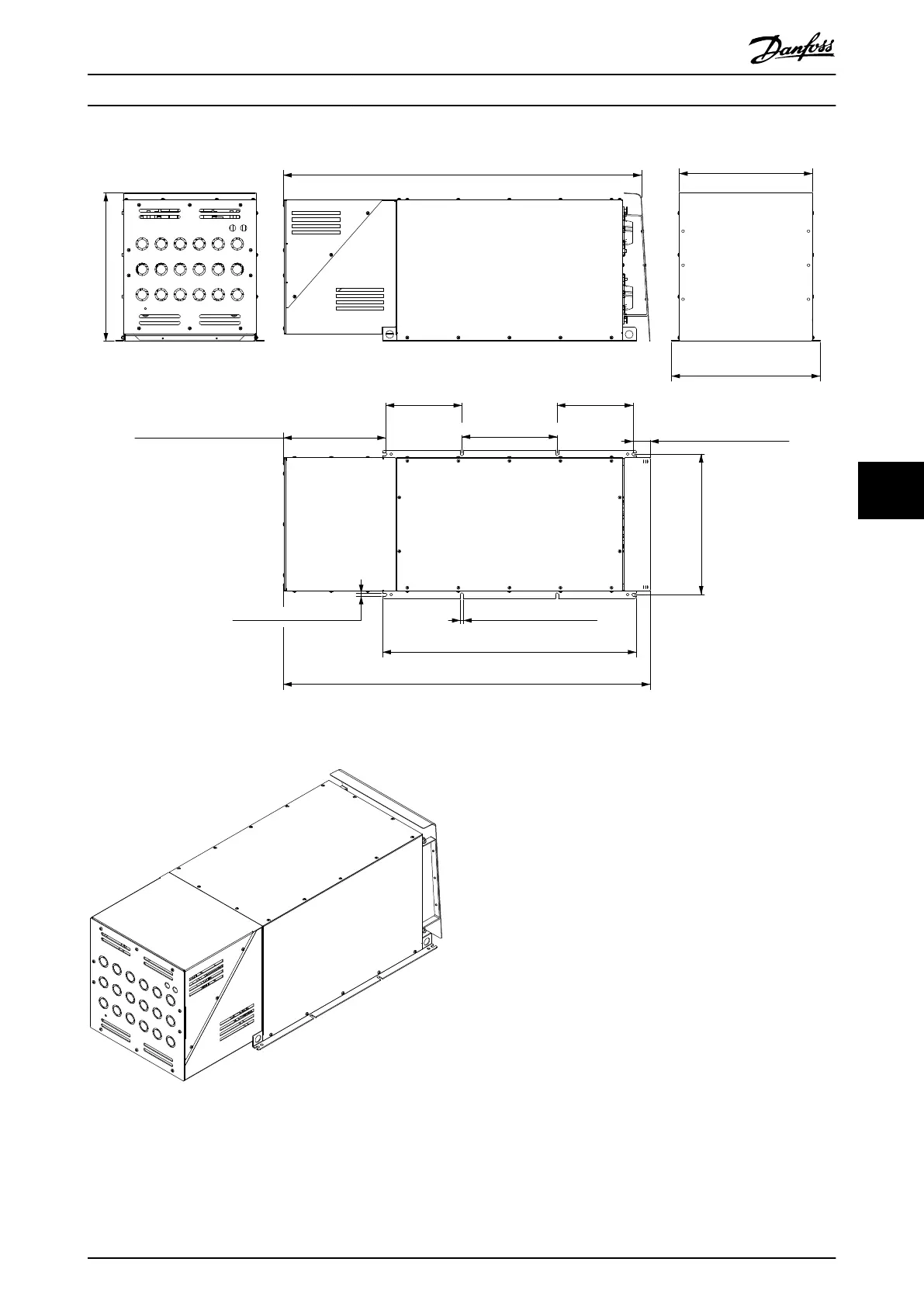

Illustration 7.103 X7 IP21 Internal Fan 2
130BE514.10
Illustration 7.104 X7 IP21 Internal Fan 2, 3D View
