Danfoss VLT AHF 005

130BE527.10
1171.5 ±4.0 mm [46.1 ±0.16 in]
421.0 ±2.5 mm [16.6 ±0.1 in]
800.0 ±2.5 mm [31.5 ±0.1 in]
88.7 ±2.5 mm [3.5 ±0.1 in]
300.0 ±1.0 mm [11.8 ±0.04 in]
323.3 ±2.5 mm [12.7 ±0.1 in]
240.0 ±1.0 mm [9.4 ±0.04 in]240.0 ±1.0 mm [9.4 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
9.0 ±1.0 mm [0.4 ±0.04 in]
1192.1 ±4.0 mm [46.9 ±0.16 in]
1113.4 ±4.0 mm [43.8 ±0.16 in]
468.0 ±2.5 mm [18.4 ±0.1 in]
530.9 ±2.5 mm [20.9 ±0.1 in]
443.0 +2.5/0.0 mm [17.4 +0.1/0.00 in]

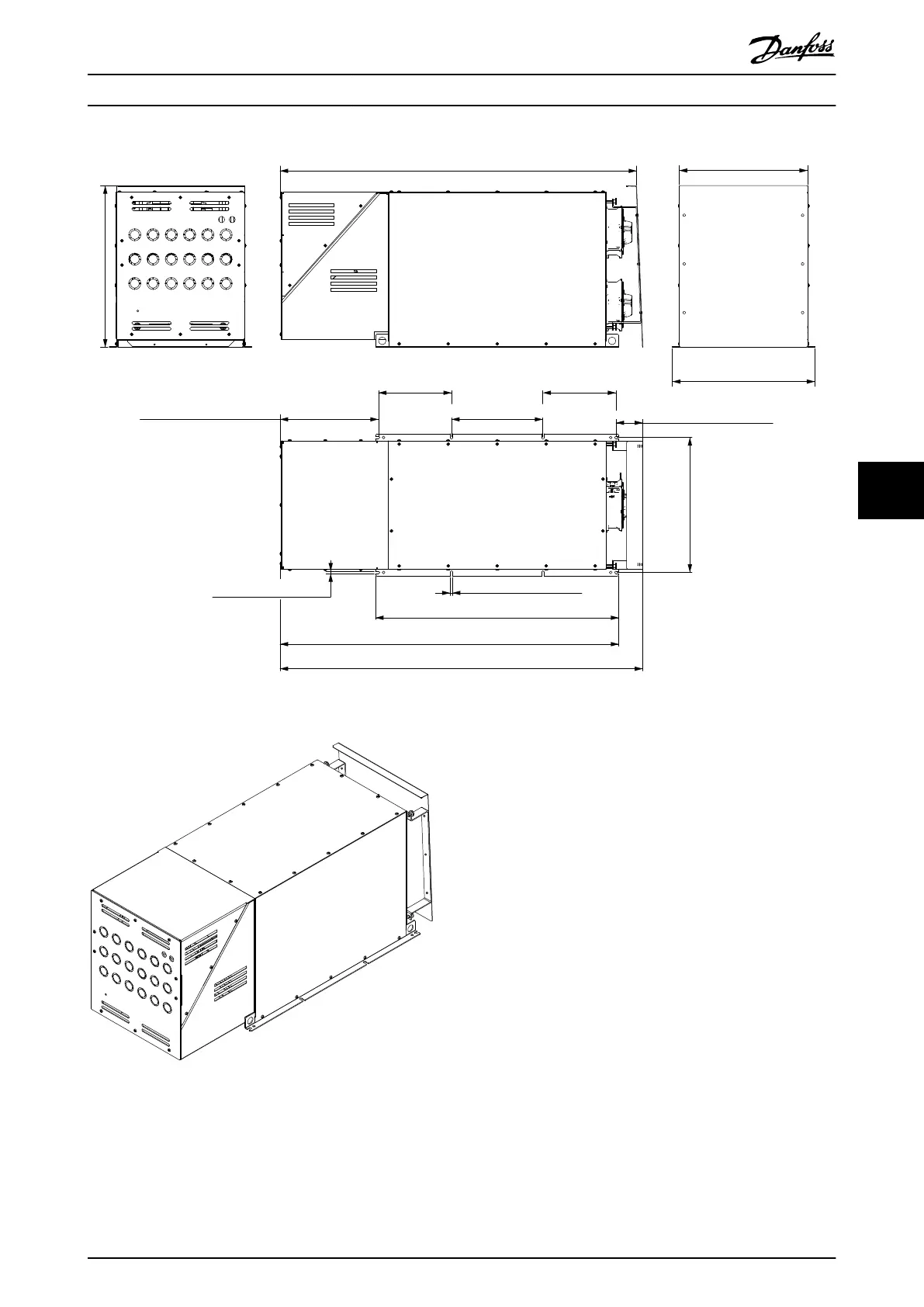

Illustration 7.115 X8 IP21 External Fan 2
130BE526.10
Illustration 7.116 X8 IP21 External Fan 2, 3D View
