Speed
e130bu087.10
Latched Start (XD2.12)
Stop Inverse (XD2.14)

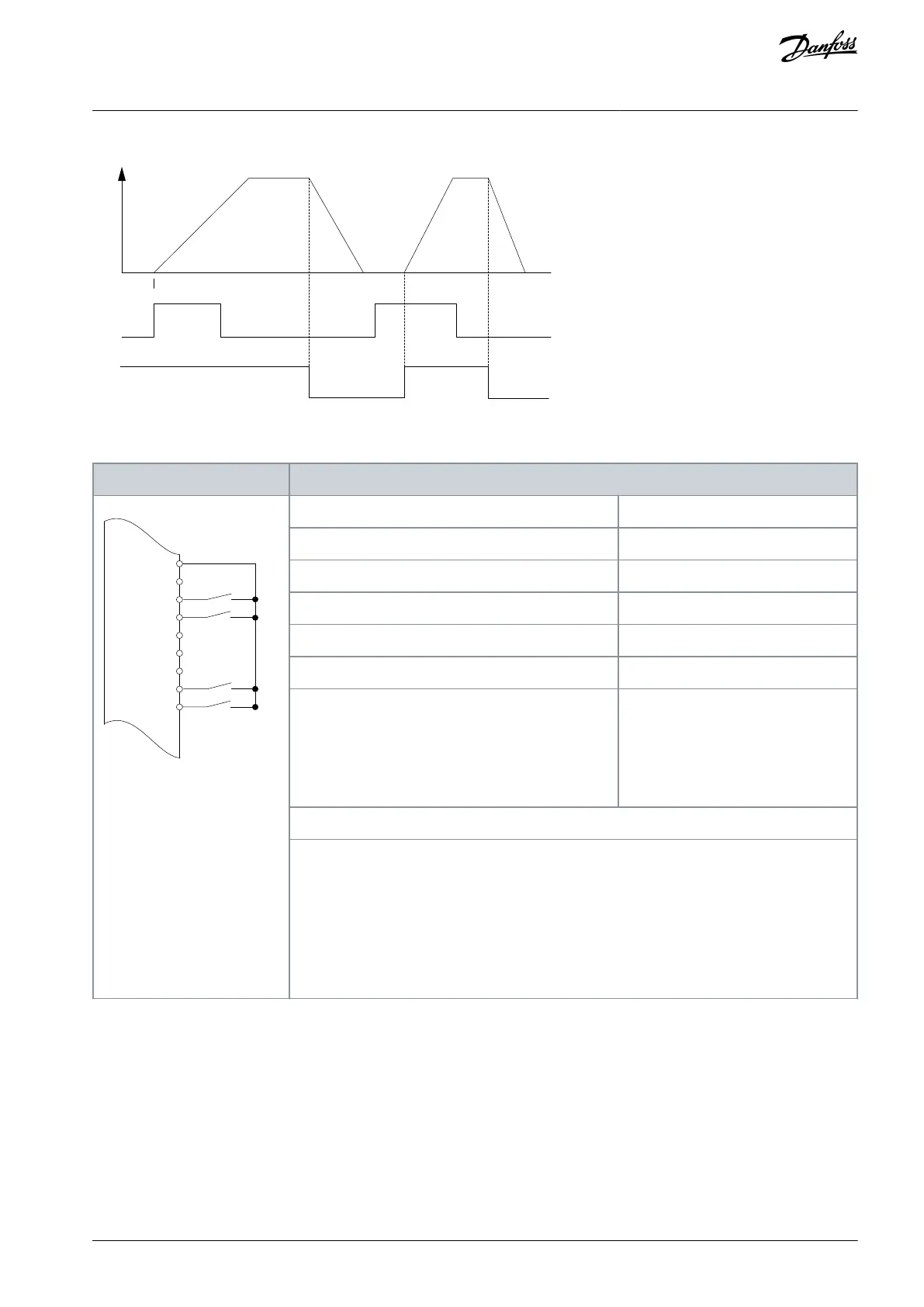

Illustration 68: Latched Start/Stop Inverse
Table 86: Wiring Configuration for Start/Stop with Reversing and 4 Preset Speeds
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
e30bu086.10
XD2.10
XD2.11
XD2.12
XD2.13
XD2.18
XD2.14
XD2.15
XD2.16
XD2.17
Function
Setting
Parameter 5-10 Terminal 18 Digital Input
[8] Start
Parameter 5-11 Terminal 19 Digital Input
[10] Reversing*
Parameter 5-12 Terminal 27 Digital Input
[0] No operation
Parameter 5-14 Terminal 32 Digital Input
[16] Preset ref bit 0
Parameter 5-15 Terminal 33 Digital Input
[17] Preset ref bit 1
Parameter 3-10 Preset Reference
Preset ref. 0 = 25%
Preset ref. 1 = 50%
Preset ref. 2 = 75%
Preset ref. 3 = 100%
*=Default value
Notes/comments:
D IN 37 is an option.
Terminal 18 in the parameter title corresponds to terminal XD2.12 in the control compartment.
Terminal 19 in the parameter title corresponds to terminal XD2.13 in the control compartment.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
Terminal 32 in the parameter title corresponds to terminal XD2.16 in the control compartment.
Terminal 33 in the parameter title corresponds to terminal XD2.17 in the control compartment.
AQ262141314214en-000301 / 130R0880 | 125Danfoss A/S © 2021.11
Wiring Configuration Examples
VLT® HVAC Drive FC 102
Operating Guide
