4.9 Lifting the Drive
W A R N I N G
HEAVY WEIGHT
The drive is heavy. Failure to follow local safety regulations for lifting heavy weights may cause death, personal injury, or property
damage.
Ensure that the lifting equipment is in proper working condition.
Check the weight of the drive and verify that the lifting equipment can safely lift the weight.
Ensure that the angle from the top of the drive to the lifting cable is 65° or greater.
Test lift the drive approximately 610 mm (24 in) to verify the proper center of gravity lift point. Reposition the lifting point if
the unit is not level.
Never walk under suspended loads.
Illustration 13: Recommended Lifting Method

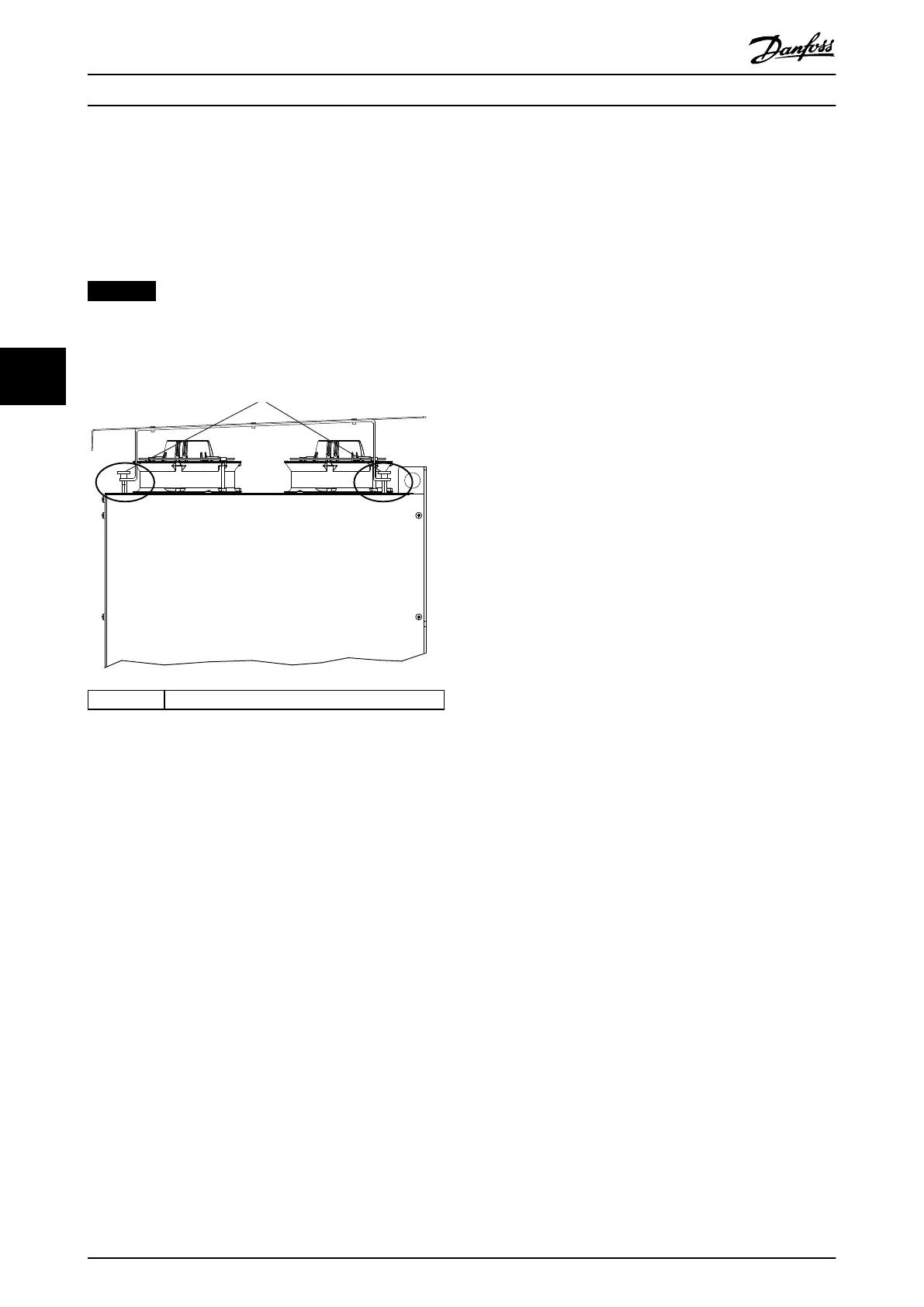

4.10 Combining Multiple Cabinets from a Split Shipment
Procedure
Make sure the cabinets are in the right order and place them side by side. For the proper order, refer to 3.2 What is an
Enclosed Drive?.
Attach the cabinets to one another:
Remove the Rittal back cover from each cabinet.
Secure the back side of the cabinets to one another using the back brackets. See Illustration 14.
Secure the front side of the cabinets to one another using the front brackets. See Illustration 14.
AQ262141314214en-000301 / 130R088044 | Danfoss A/S © 2021.11
Mechanical Installation
VLT® HVAC Drive FC 102
Operating Guide
