Danfoss VLT AHF 005 - Page 71

338 ± 2.5 mm [13.3 ± 0.1 in]
353.0 ± 2.5 mm [13.9 ± 0.10 in]
378.0 ± 2.5 mm [14.9 ± 0.10 in]
F1
F2
PE M8
X1 Mains 35mm
2
X2 Drive 35mm
2
A/B Temperature 2.5mm
2
X3/X4 Capacitor disconnect 16mm
2
489 ± 2.5 mm [19.3 ± 0.10 in]
330 ± 2.5 mm [13.0 ± 0.1 in]
9.0 ± 1 mm [0.4 ± 0.04 in]
9.0 ± 1 mm [0.4 ± 0.04 in]
54.3 ± 2.5 mm [2.1 ± 0.10 in]
577.0 ± 2.5 mm [22.7 ± 0.10 in]
579.0 ± 2.5 mm [22.8 ± 0.10 in]
619.8 ± 2.5 mm [24.4 ± 0.10 in]
157.0 ± 1 mm [6.2 ± 0.04 in] 157.0 ± 1 mm [6.2 ± 0.04 in]240.0 ± 1 mm [9.4 ± 0.04 in]
130BE402.10

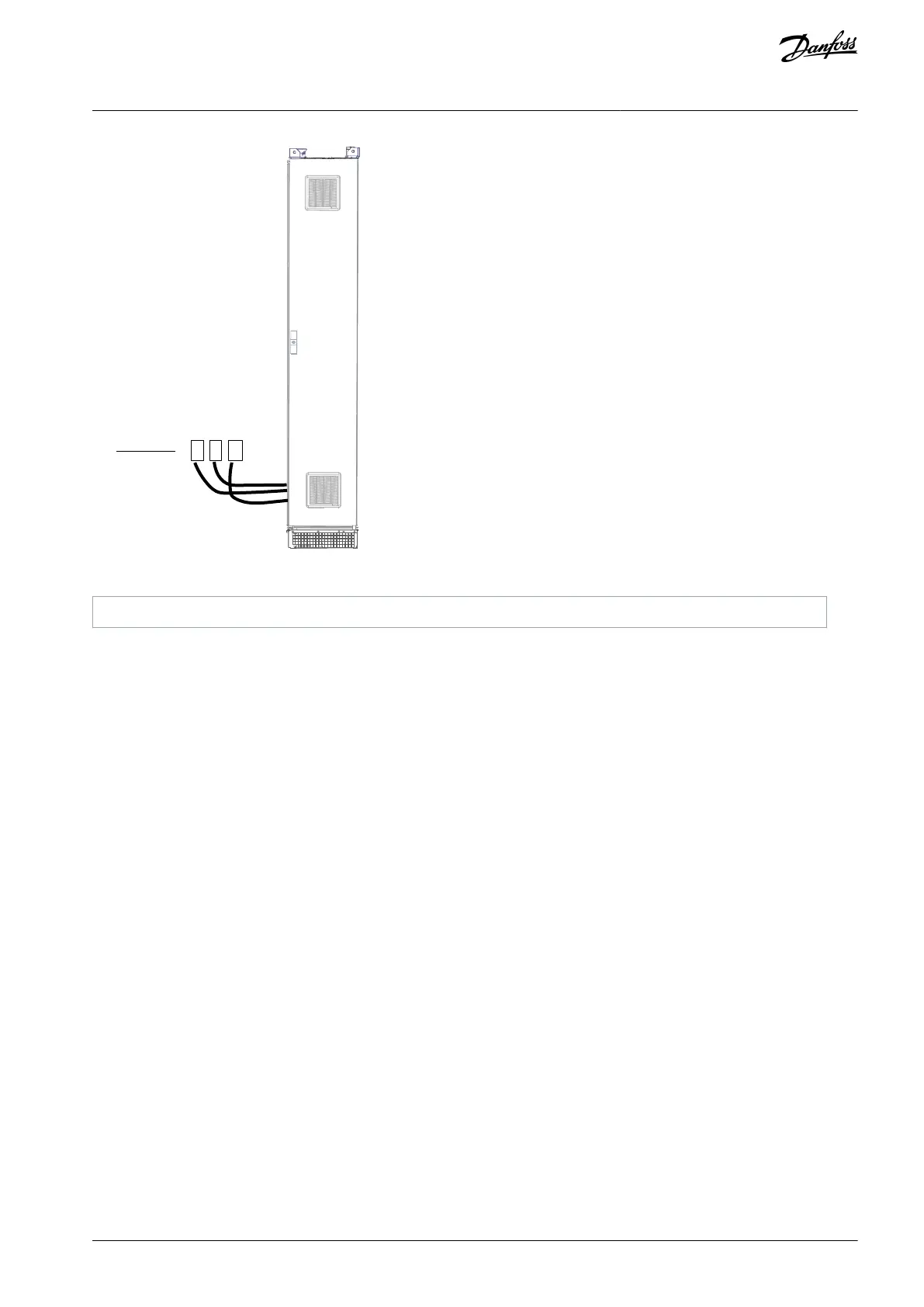

Illustration 7.23 IP20 X4 Internal Fan 2
130BE401.10
Illustration 7.24 IP20 X4 Internal Fan 2, 3D View
