Danfoss VLT AHF 005 - Page 77

130BE413.10
X1 Mains 50 mm
2
X2 Drive 50 mm
2
A/B Temperature 2.5 mm
2
X3/X4 Capacitor disconnect 16 mm
2
PE M8
F1
F2
336.3 ±2.5 mm [13.2 ±0.1 in]
393.0 ±2.5 mm [15.5 ±0.1 in]
597.0 ±2.5 mm [23.5 ±0.1 in]
370.0 ±2.5 mm [14.6 ±0.1 in]
418.0 ±2.5 mm [16.5 ±0.1 in]
210.5 ±1 mm [8.3 ±0.04 in]
63.8 ±2.5 mm [2.5 ±0.1 in]
685.0 ±2.5 mm [27.0 ±0.1 in]
775.3 ±2.5 mm [30.5 ±0.1 in]
9.0 ±1 mm [0.4 ±0.04 in]
9.0 ±1 mm [0.4 ±0.04 in]
210.5 ±1 mm [8.3 ±0.04 in]
50.5 ±2.5 mm [2.0 ±0.1 in]
240.0 ±1 mm [9.4 ±0.04 in]

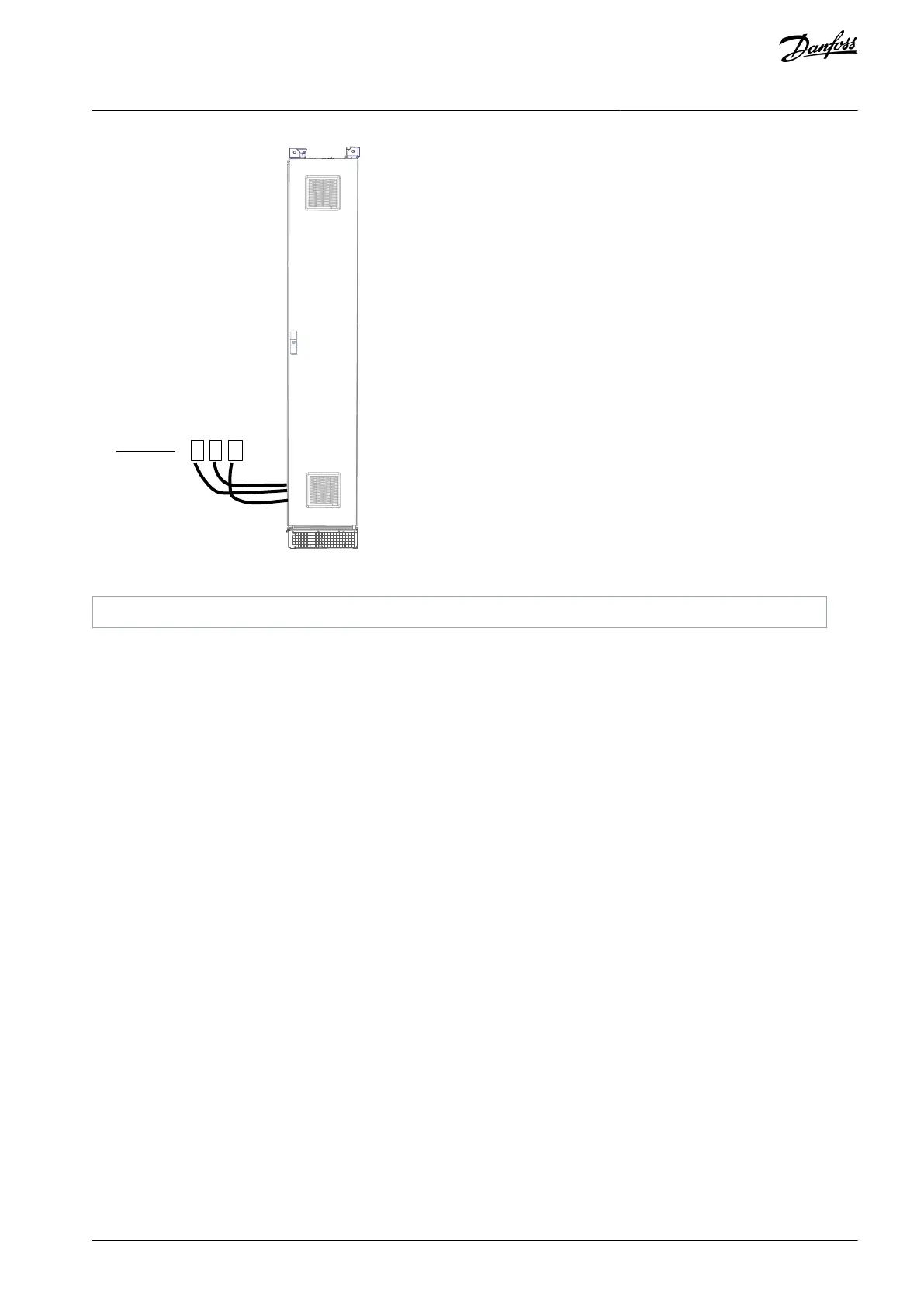

Illustration 7.35 IP20 X5 External Fan 2
130BE412.10
Illustration 7.36 IP20 X5 External Fan 2, 3D View
Specications Design Guide
