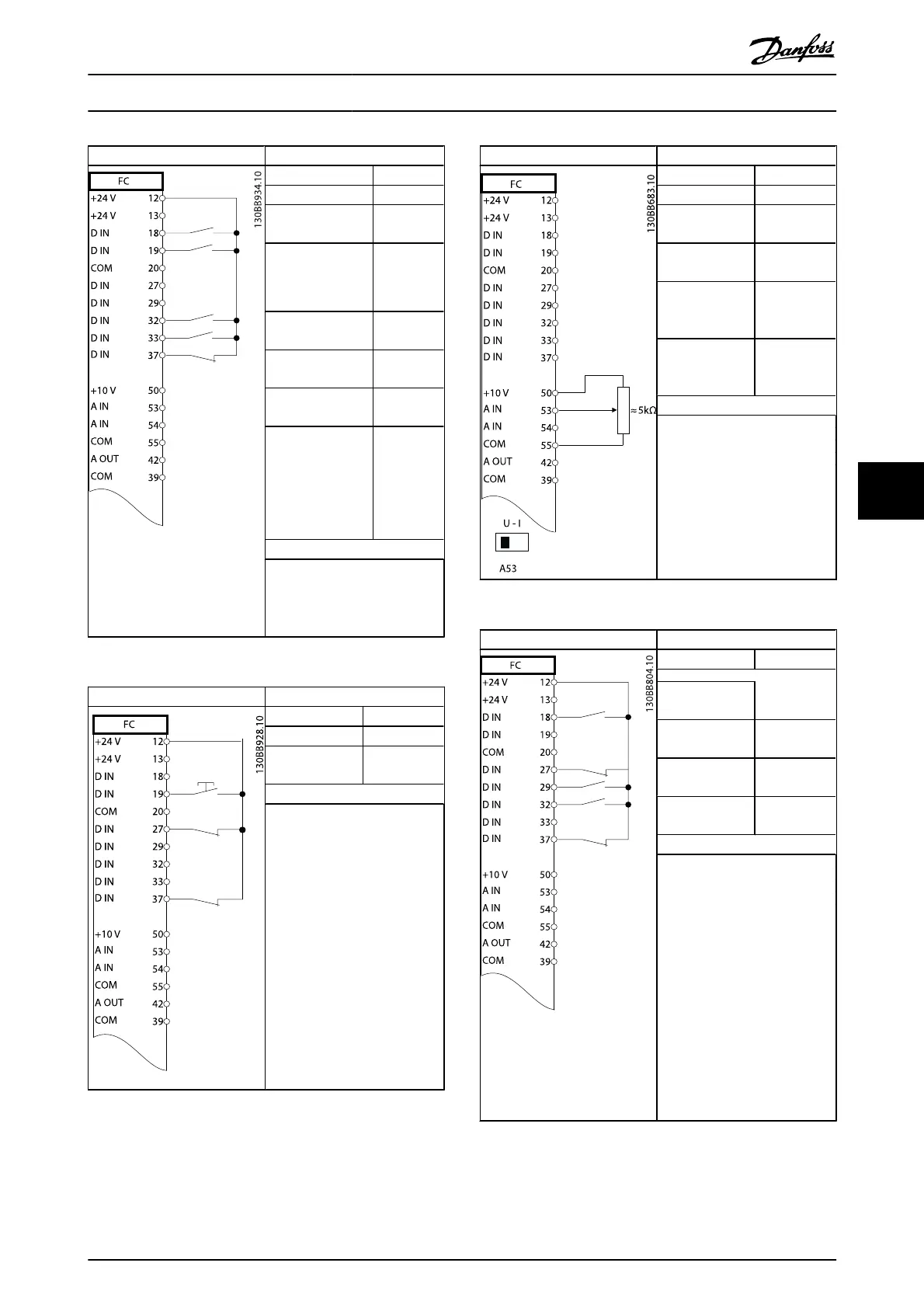

Danfoss VLT AutomationDrive User Manual

Parameters
Function Setting
5-10 Terminal 18
Digital Input
[8] Start
5-11 Terminal 19
Digital Input
[10]
Reversing*
5-12 Terminal 27
Digital Input
[0] No
operation
5-14 Terminal 32
Digital Input
[16] Preset
ref bit 0
5-15 Terminal 33
Digital Input
[17] Preset
ref bit 1
3-10 Preset
Reference
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
25%
50%
75%
100%
* = Default Value
Notes/comments:
Table 6.7 Start/Stop with Reversing and 4 Preset Speeds
Parameters
Function Setting
5-11 Terminal 19
Digital Input
[1] Reset
* = Default Value
Notes/comments:
Table 6.8 External Alarm Reset
Parameters
Function Setting
6-10 Terminal 53
Low Voltage 0.07V*
6-11 Terminal 53
High Voltage
10V*
6-14 Terminal 53
Low Ref./Feedb.
Value
0RPM
6-15 Terminal 53
High Ref./Feedb.
Value
1500RPM
* = Default Value
Notes/comments:
Table 6.9 Speed Reference (using a manual potentiometer)
Parameters
Function Setting
5-10 Terminal 18
Digital Input
[8] Start*
5-12 Terminal 27
Digital Input
[19] Freeze
Reference
5-13 Terminal 29
Digital Input
[21] Speed Up
5-14 Terminal 32
Digital Input
[22] Speed
Down
* = Default Value
Notes/comments:
Table 6.10 Speed Up/Down
Application Set-Up Examples
VLT
®
AutomationDrive Operating
Instructions
MG.33.AJ.02 - VLT
®
is a registered Danfoss trademark 43
6
6

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
