Danfoss VLT FC 100 Design Guide

TERMINALS
EARTH
130BA450.10

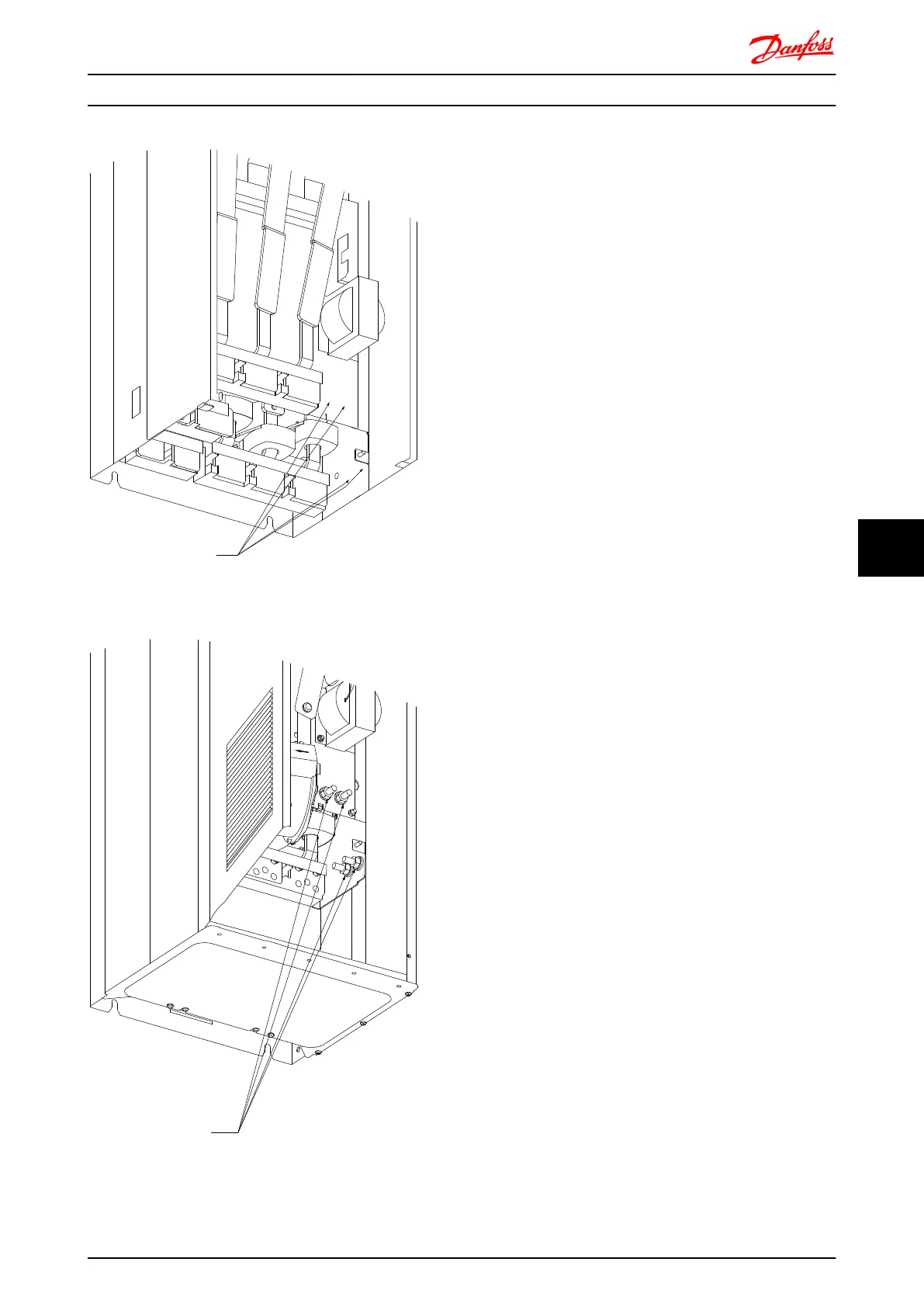

Illustration 8.34 Position of earth terminals IP00, frame sizes D
130BA455.10
M10 19 NM (14 FT -LB)
T2 97
W/T3 98
EARTH
TERMINALS
Illustration 8.35 Position of earth terminals IP21 (NEMA type 1)
and IP54 (NEMA type 12)
NOTE
D2 and D4 shown as examples. D1 and D3 are equivalent.
Electrical Installation FC 300 Design Guide
MG.33.BD.02 - VLT
®
is a registered Danfoss trademark 173
8 8
