3 Mechanical Installation
3.1 Unpacking
3.1.1 Items Supplied
•
Check the packaging and the adjustable frequency
drive visually for damage caused by inappropriate
handling during shipment. File any claim for
damage with the carrier. Retain damaged parts for
clarification.
•
Make sure the items supplied and the information
on the nameplate correspond to the order confir-
mation.
130BD511.10
Type 12 / IP55 Tamb.45
C/113 F
V LT
MADE IN DENMARK
R
P/N: 131U3930 S/N: 010102G290
3.0kW(400V) / 4.0HP(460V)
IN: 3x380-480V 50/60Hz 6.5/5.7A
OUT: 3x0-Vin 0-590Hz 7.2/6.3A
o
CAUTION:
See manual for special condition/mains fuse
voir manual de conditions speclales/fusibles
WARNING:
Stored charge, wait 4 min.
Charge residuelle, attendez 4 min.
* 1 3 1
U
3 9 3 0 0 1 0 1 0 2 G 2 9 0 *
`
HVAC Drive
www.danfoss.com
T/C: FC-102P3K0T4Z55H1UGCXXXSXXXXAXBXCXXXXDX
Listed 76X1 E134261 Ind. Contr. Eq.
o
`
1
2
3
4
5
6
7
8
9
10

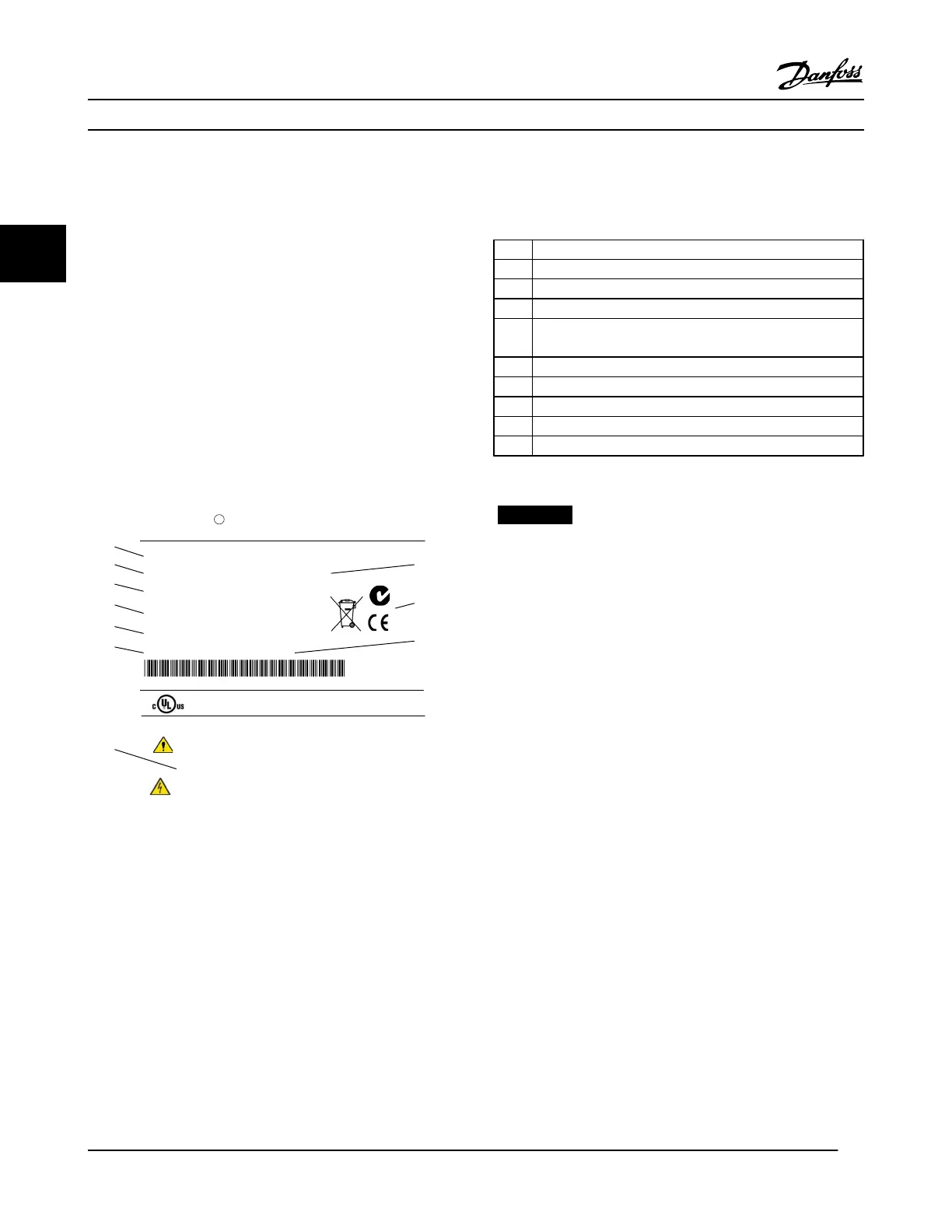

Figure 3.1 Product Nameplate (Example)
1 Type code
2 Order number
3 Power rating
4 Input voltage, frequency and current (at low/high voltages)
5
Output voltage, frequency and current (at low/high
voltages)
6 Enclosure type and IP rating
7 Maximum ambient temperature
8 Certifications
9 Discharge time (Warning)
10 Serial number
Table 3.1 Legend to Figure 3.1
NOTICE!
Do not remove the nameplate from the
adjustable frequency drive (loss of warranty).
3.1.2 Storage
Ensure that requirements for storage are fulfilled. Refer to
8.4 Ambient Conditions for further details.
Mechanical Installation
VLT
®
HVAC Drive Instruction Manual
8 MG11AJ22 - Rev. 2013-09-13
