3.1.3 Product Overview
1
2
3
4
5
6
7
8
9
10
11
12
13
14
8
15
16
17
18
130BB492.10

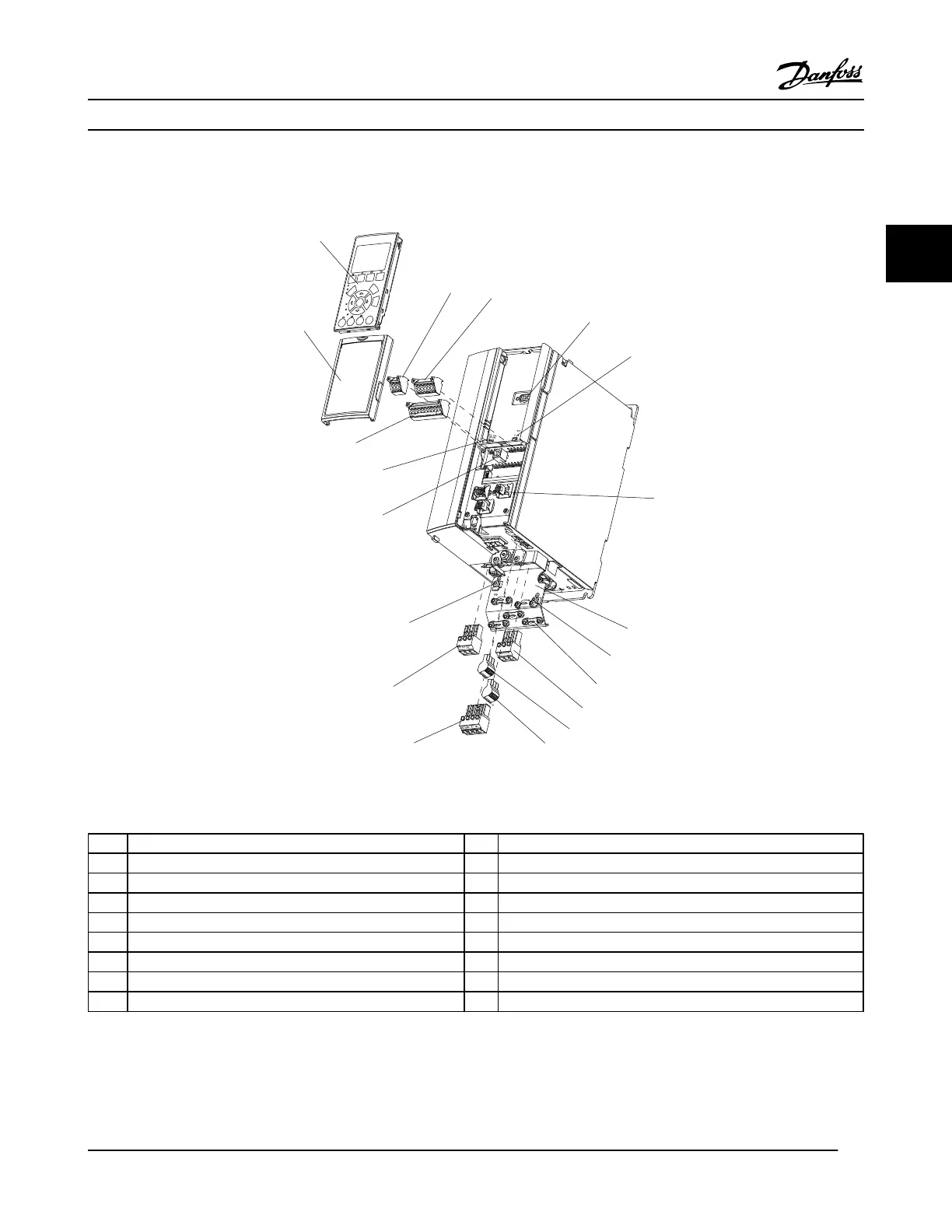

Figure 3.2 Exploded View Enclosure Type A, IP20
1
Local control panel (LCP) 10 Motor output terminals 96 (U), 97 (V), 98 (W)
2 RS-485 serial bus connector (+68, -69) 11 Relay 2 (01, 02, 03)
3 Analog I/O connector 12 Relay 1 (04, 05, 06)
4 LCP input plug 13 Brake (-81, +82) and load sharing (-88, +89) terminals
5 Analog switches (A53), (A54) 14 Line power input terminals 91 (L1), 92 (L2), 93 (L3)
6 Cable shield connector 15 USB connector
7 Decoupling plate 16 Serial bus terminal switch
8 Grounding clamp (PE) 17 Digital I/O and 24 V power supply
9 Shielded cable grounding clamp and strain relief 18 Cover
Table 3.2 Legend to Figure 3.2
Mechanical Installation
VLT
®
HVAC Drive Instruction Manual
MG11AJ22 - Rev. 2013-09-13 9
3 3
