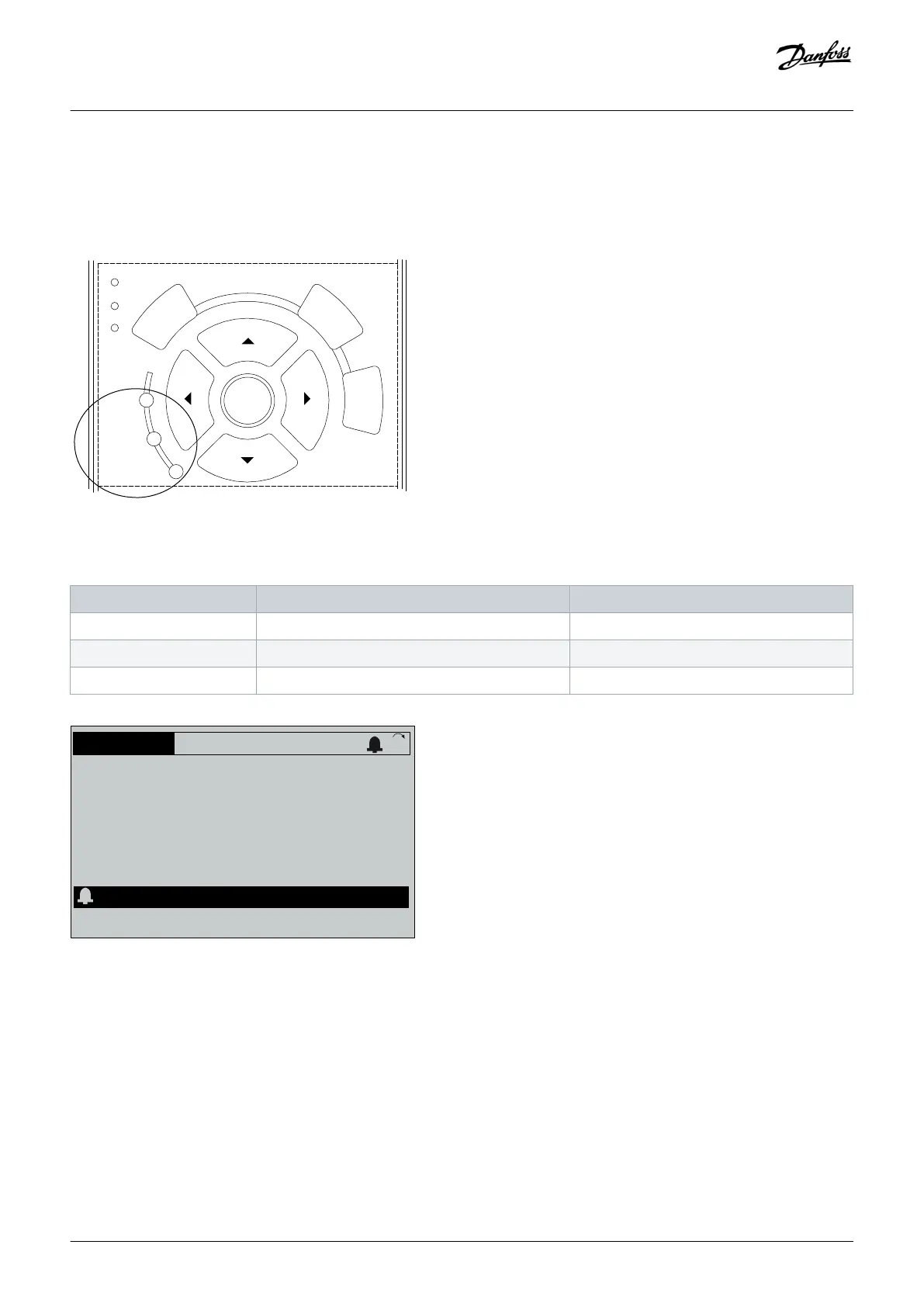

Danfoss VLT FC 103 Operating Guide

LCP notification
When a fault is triggered, the LCP indicates the type of fault (alarm, warning, or trip lock) and shows the alarm or warning number in
the display.
Back
Cancel
Info
OK
On
Alarm
Warn.
e30bb467.12
Illustration 49: Status Indicator Lights
Table 39: Fault Types
Type of fault Warning indicator light Alarm indicator light
Warning On Off
Alarm Off On (flashing)
Trip lock On On (flashing)
e30bp086.13
Status
0.0Hz 0.000kW 0.00A
0.0Hz
0
Earth Fault [A14]
Auto Remote Trip
1(1)
Illustration 50: Alarm Example
8.4.2 WARNING 1, 10 Volts Low
Cause
The control card voltage is less than 10 V from terminal 50. Remove some of the load from terminal 50, as the 10 V supply is
overloaded. Maximum 15 mA or minimum 590 Ω.
A short circuit in a connected potentiometer or incorrect wiring of the potentiometer can cause this condition.
Maintenance, Diagnostics, and
Troubleshooting
Operating Guide | VLT® Refrigeration Drive FC 103
AQ275652766279en-000101 / 130R0707
100 | Danfoss A/S © 2020.01
