Danfoss VLT FC 103 Operating Guide

Example:
e30bf150.10
U/T1 96
V/T2 97
W/T3 98
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
U/T1 96
V/T2 97
W/T3 98
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (14FT-LB)
+ REGEN 82
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
- REGEN 83
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)

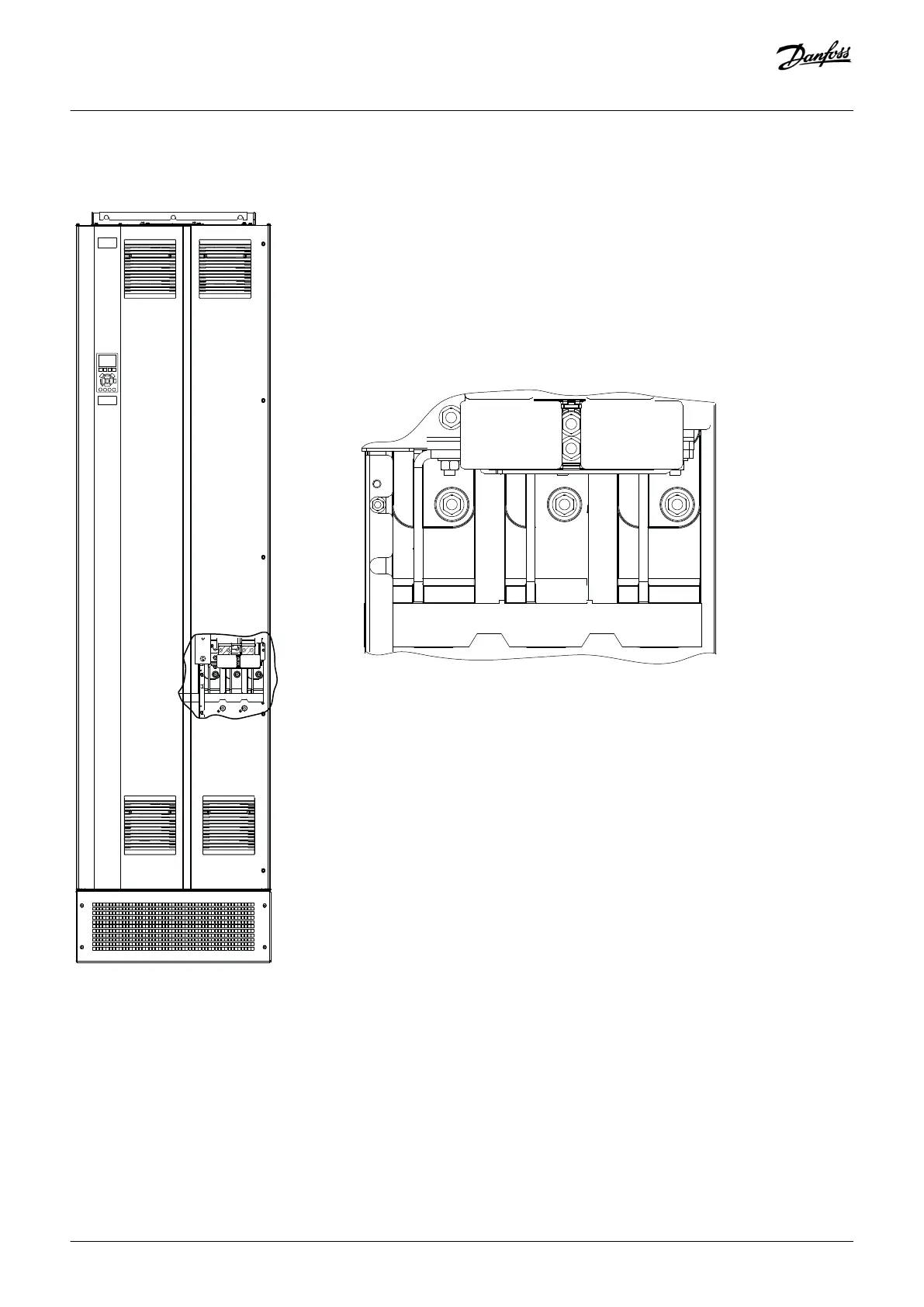

Illustration 18: AC Motor Terminals (E1h shown).
5.5 Connecting the AC Mains
Context:
• Size the wiring according to the input current of the drive. For maximum wire sizes, see the Electrical Data section.
• Comply with local and national electrical codes for cable sizes.
Electrical Installation
Operating Guide | VLT® Refrigeration Drive FC 103
AQ275652766279en-000101 / 130R0707| 41
Danfoss A/S © 2020.01
