9.8 Enclosure Dimensions
9.8.1 E1h Exterior Dimensions
e30bf648.10
22 (0.8)
393 (15.5)
602 (23.7)
2043
(80.4)
2002
(78.8)
1553
(61.1)
1393
(54.9)
912
(35.9)
13 (0.5)
3X

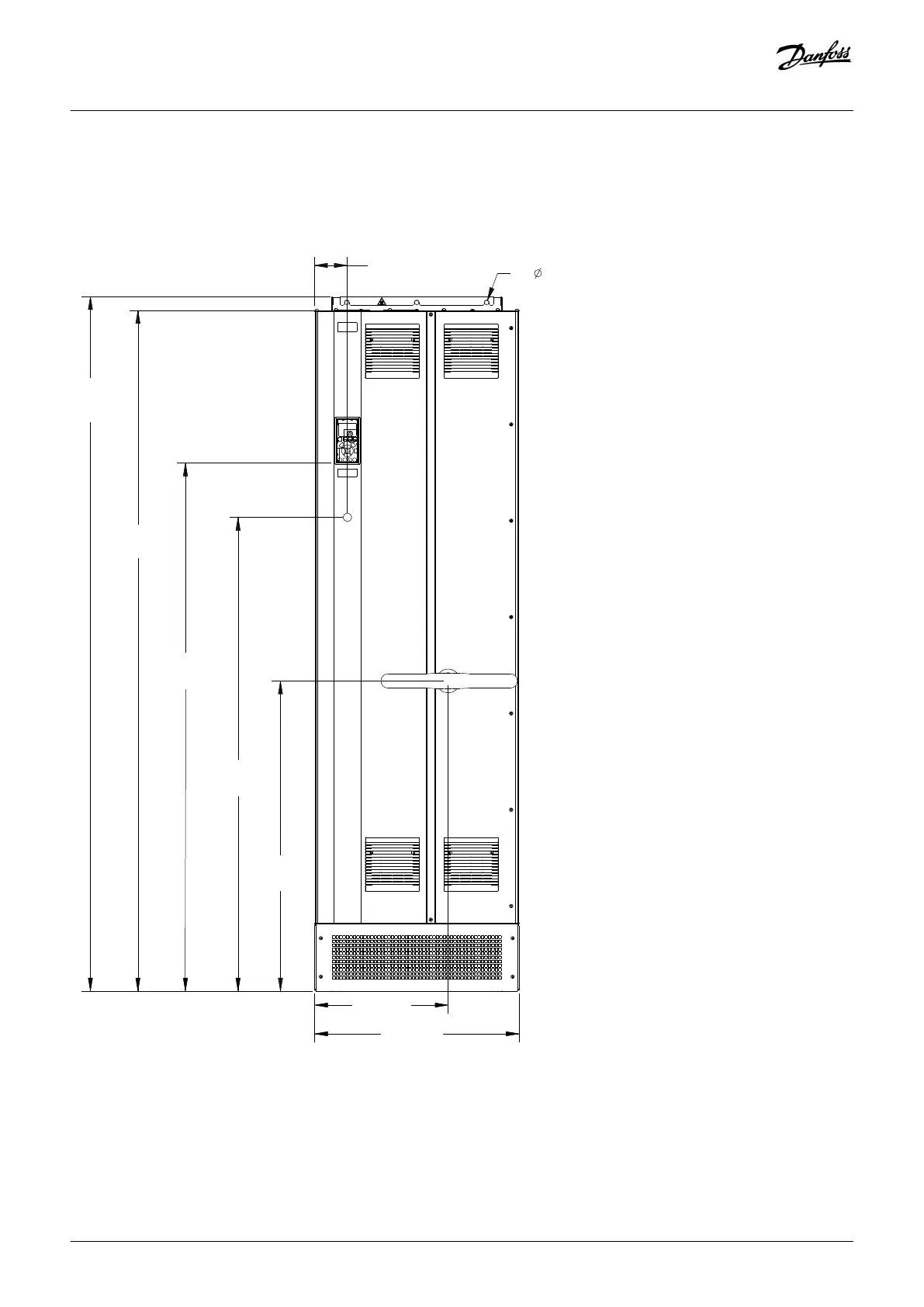

Illustration 52: Front View of E1h
