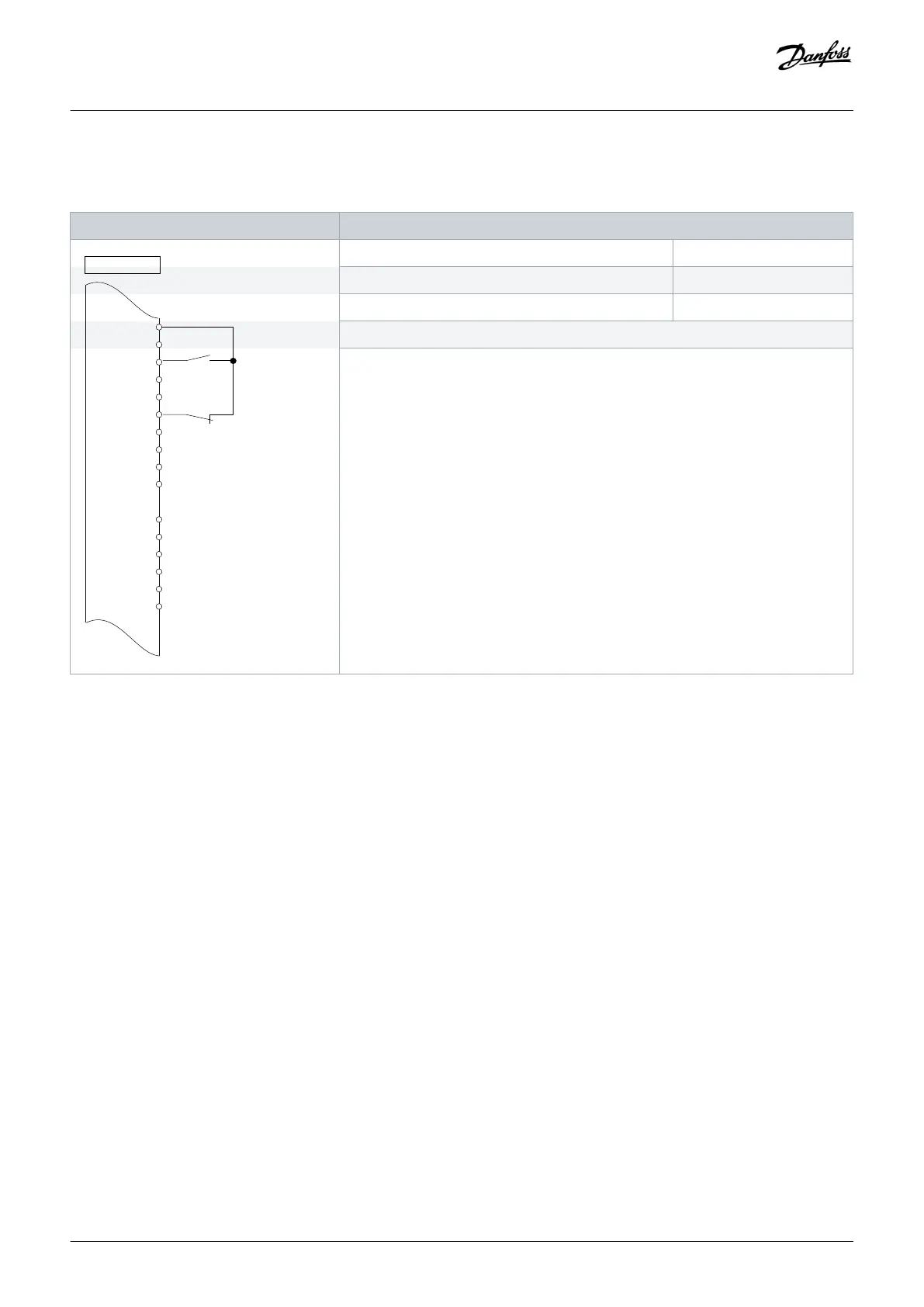

7.1.5 Wiring Configuration: Run/Stop
Table 25: Run/Stop Command with External Interlock
Parameter
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
e30bb680.11
Drive
Function Setting
Parameter 5-10 Terminal 18 Digital Input [8] Start*
Parameter 5-12 Terminal 27 Digital Input [7] External interlock
*=Default value
Notes/comments:
D IN 37 is an option.
Wiring Configuration Examples
Operating Guide | VLT® Refrigeration Drive FC 103
AQ275652766279en-000101 / 130R0707
80 | Danfoss A/S © 2020.01
