e30bf684.10
168 (6.6)
18 (0.7)
412 (16.2)
154 (6.1)
206
(8.1)
1209 (47.6)
168 (6.6)
1800 (70.9)
601 (23.7)
69 (2.7)
464 (18.3)
4X 457 (18.0)
4X 73 (2.8)
1
96 (3.8)
1 Heat sink access panel (optional)

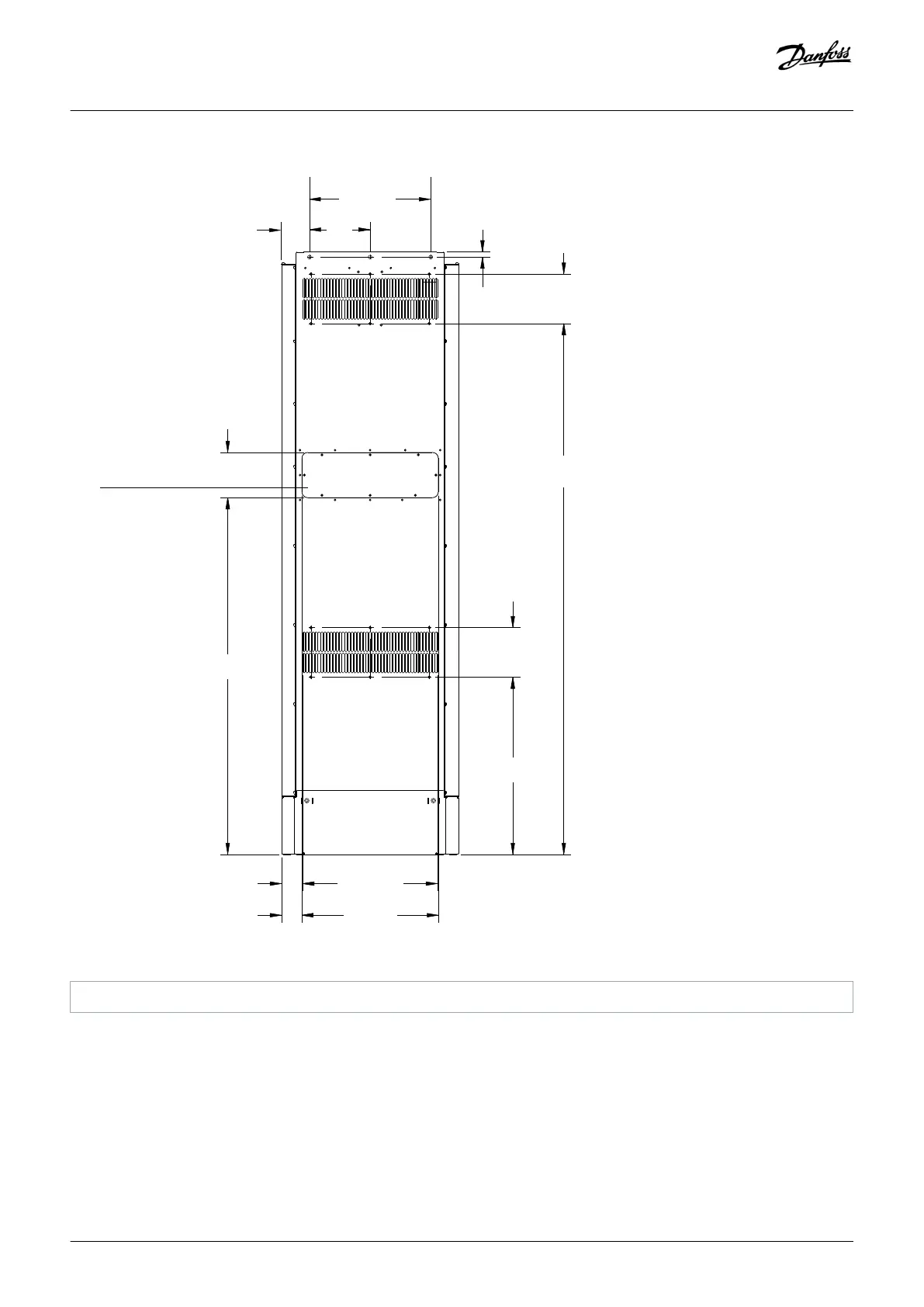

Illustration 54: Back View of E1h
