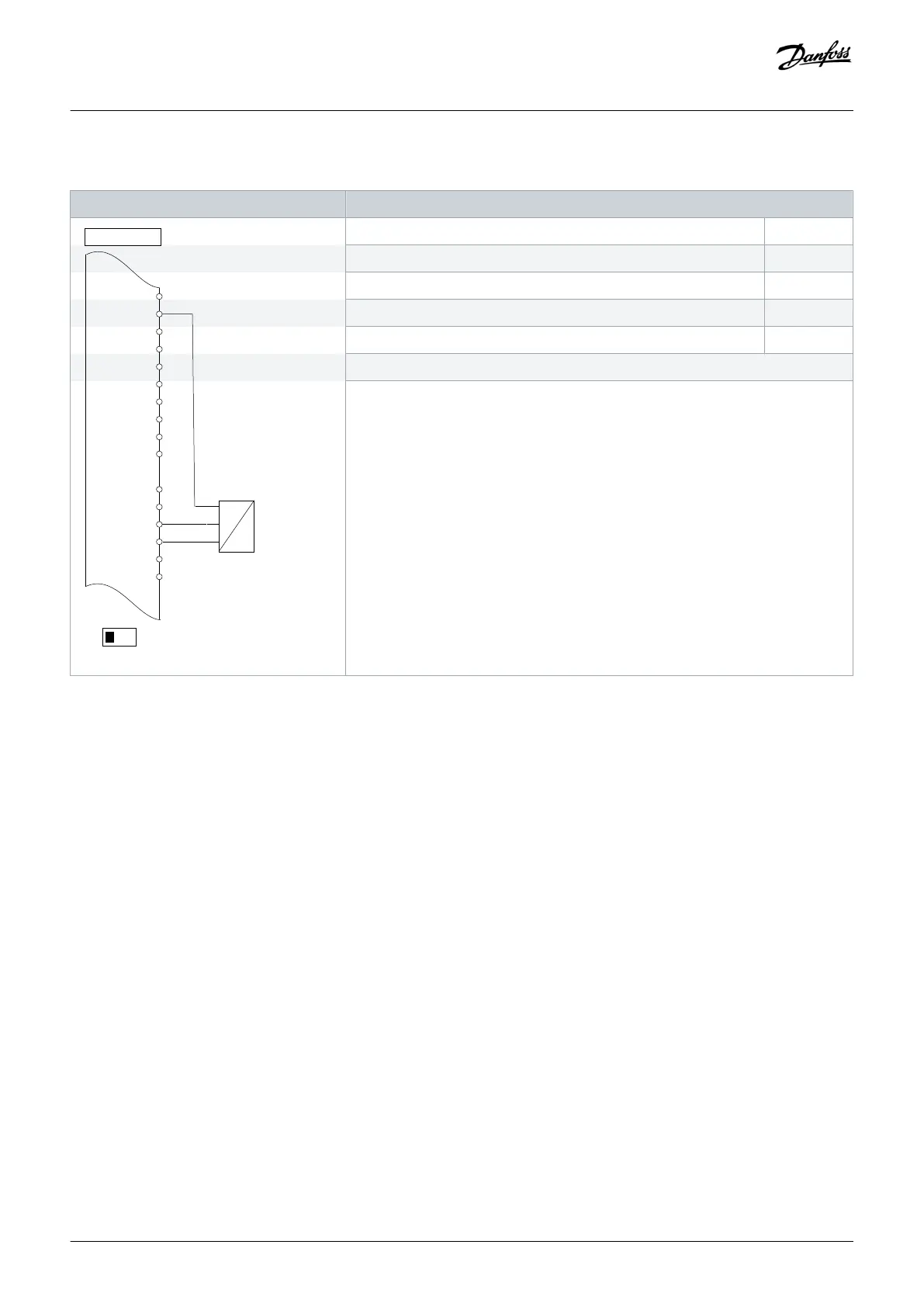

Table 23: Analog Voltage Feedback Transducer (3-wire)
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
A54
U - I
0-10 V
+
-
e30bb676.11
Drive
Function Setting
Parameter 6-20 Terminal 54 Low Voltage 0.07 V*
Parameter 6-21 Terminal 54 High Voltage 10 V*
Parameter 6-24 Terminal 54 Low Ref./Feedb. value 0*
Parameter 6-25 Terminal 54 High Ref./Feedb. Value 50*
*=Default value
Notes/comments:
D IN 37 is an option.
Wiring Configuration Examples
Operating Guide | VLT® Refrigeration Drive FC 103
AQ275652766279en-000101 / 130R0707
78 | Danfoss A/S © 2020.01
