SD160/SD260 Installation and Administrator’s Guide 5

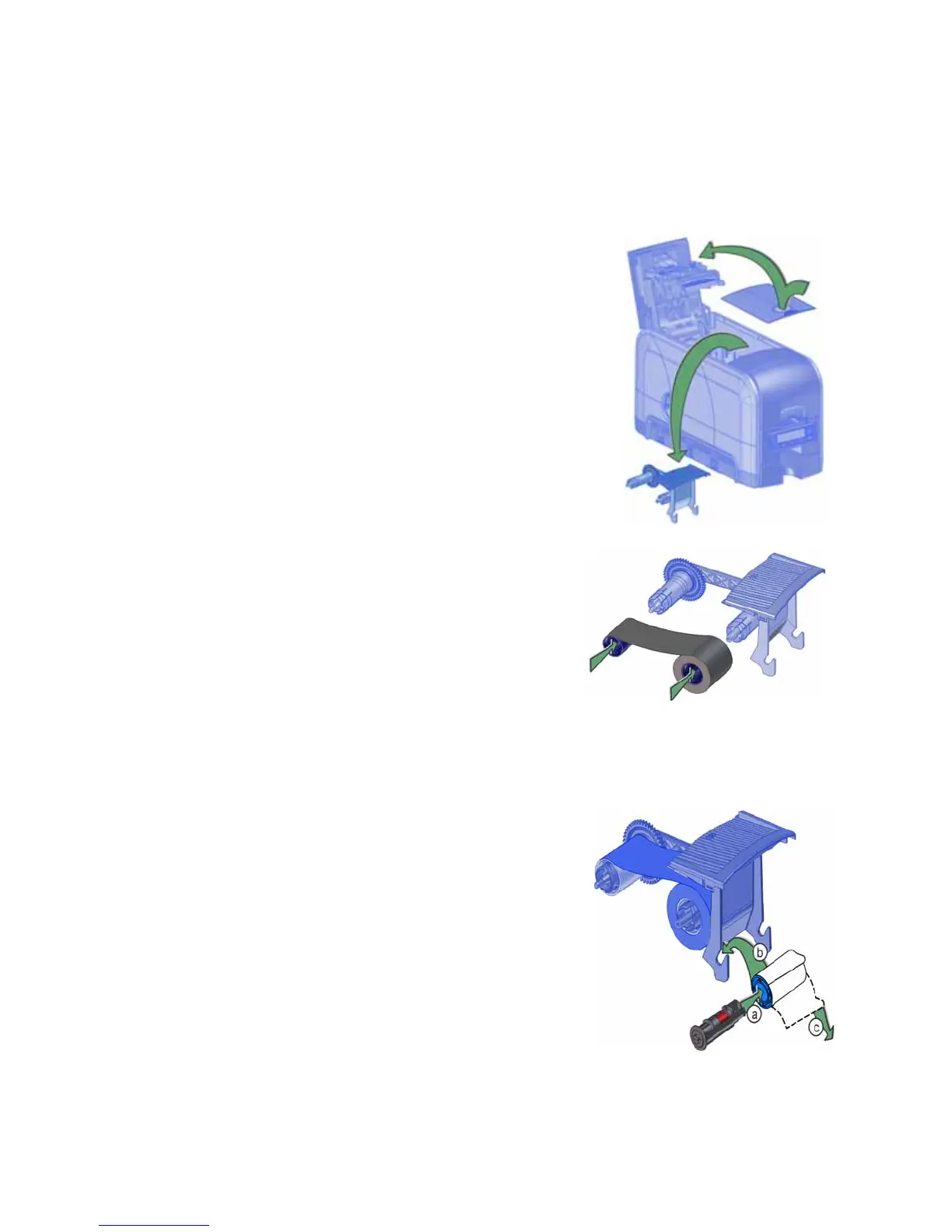

Load the Print Ribbon
Loadtheribbonwhenyouinstalltheprinterandwhentheribbonrunsout.(Ifyouareusingthe
rewritableoption,referto“PreparethePrintertoUseRewritableCards”onpage 7.)
1. Opentheprintercover.
2. Removetheprintribboncartridge.
3. Loadafullrollofprintribbon(the
bluespool)onto
thespindleclosesttothecartridgehandleuntilit
clicksintoplace.
4. Placethesilvertake‐upspoolonthespindl ewith
theblackgearuntilitclicksintoplace.
5. Windthetake‐upspoolcounterclockwiseonefull
turn.
Load the Cleaning Sleeve
Loadanewcleaningsleevewitheachnewrollofprint
ribbon,ifyounoticedebrisontheprintedcards,orif the
cleaningsleeveisnolongersticky.
Theprintershipswiththecleaningrollerspindleinthe
accessorybox.
1. Locatethecleaningrollerspindleandslidethespindle 
into
thecontinuouscleaningsleeve(a).
2. Placethespindlewithcleaningsleeveontotheribbon
cartridge(b).
3. Removetheprotectivewrapperfromthecleaning
sleeve(c).

DataCard SD160 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50/60 Hz
Card Capacity	100 cards input hopper, 25 cards output hopper
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Support	Windows 7, Windows 8, Windows 10
Card Thickness	0.020" to 0.030" (0.51 mm to 0.76 mm)
Print Speed	Up to 150 cards per hour (YMCKT)
