DATALOGIC 2 OF 5 ENTER/EXIT PROGRAMMING MODE
PRODUCT REFERENCE GUIDE 171
Datalogic 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for "Datalogic 2 of 5 Length Control" on
page 170
. Length 1 is the minimum label length if in Variable Length Mode, or the first
fixed length if in Fixed Length Mode. The length includes the bar code’s check and data
characters. The length can be set from 2 to 50 characters in increments of two. See "
Set
Length 1" on page 293
for more detailed programming instructions.
Datalogic 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for "Datalogic 2 of 5 Length Control" on
page 170
. Length 2 is the maximum label length if in Variable Length Mode, or the sec-
ond fixed length if in Fixed Length Mode. The length includes the bar code’s check and
data characters. The length can be set from 2 to 50 characters. A setting of 00 specifies
to ignore this length (only one fixed length). See "
Set Length 2" on page 294 for more
detailed programming instructions.

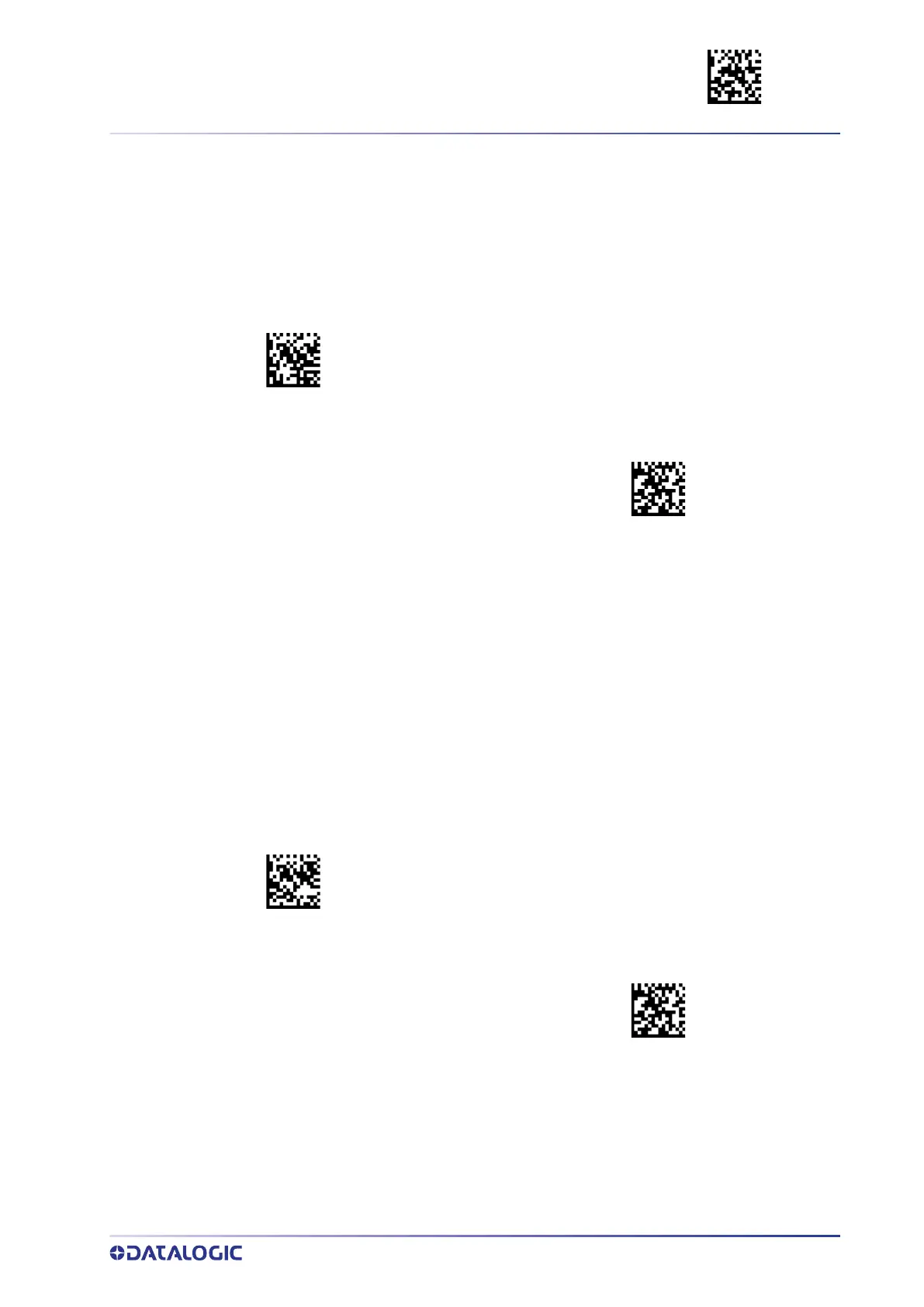

Select Datalogic 2 of 5 Length 1 Setting
$CD2L1
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in Appendix D, Keypad represent-
ing your desired character(s). End by scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL

Length 1 = 06 (6 characters)
Select Datalogic 2 of 5 Set Length 2 Setting
$CD2L2
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in Appendix D, Keypad represent-
ing your desired character(s). End by scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL

Length 2 = 50 (50 characters)
