CONNECTING THE BASE STATION
PRODUCT REFERENCE GUIDE 15
Securing the DC Power Cord (Optional)
The DC power cord for the adapter can be secured to the bottom of the base in order to
maximize the mechanical retention of the cable itself. The routing of the cable can be
changed to accommodate base station positioning: horizontal or vertical mount. The
cable can be looped around to the front of the base station, or fed directly out the back
of the base station, as shown in the figure below.

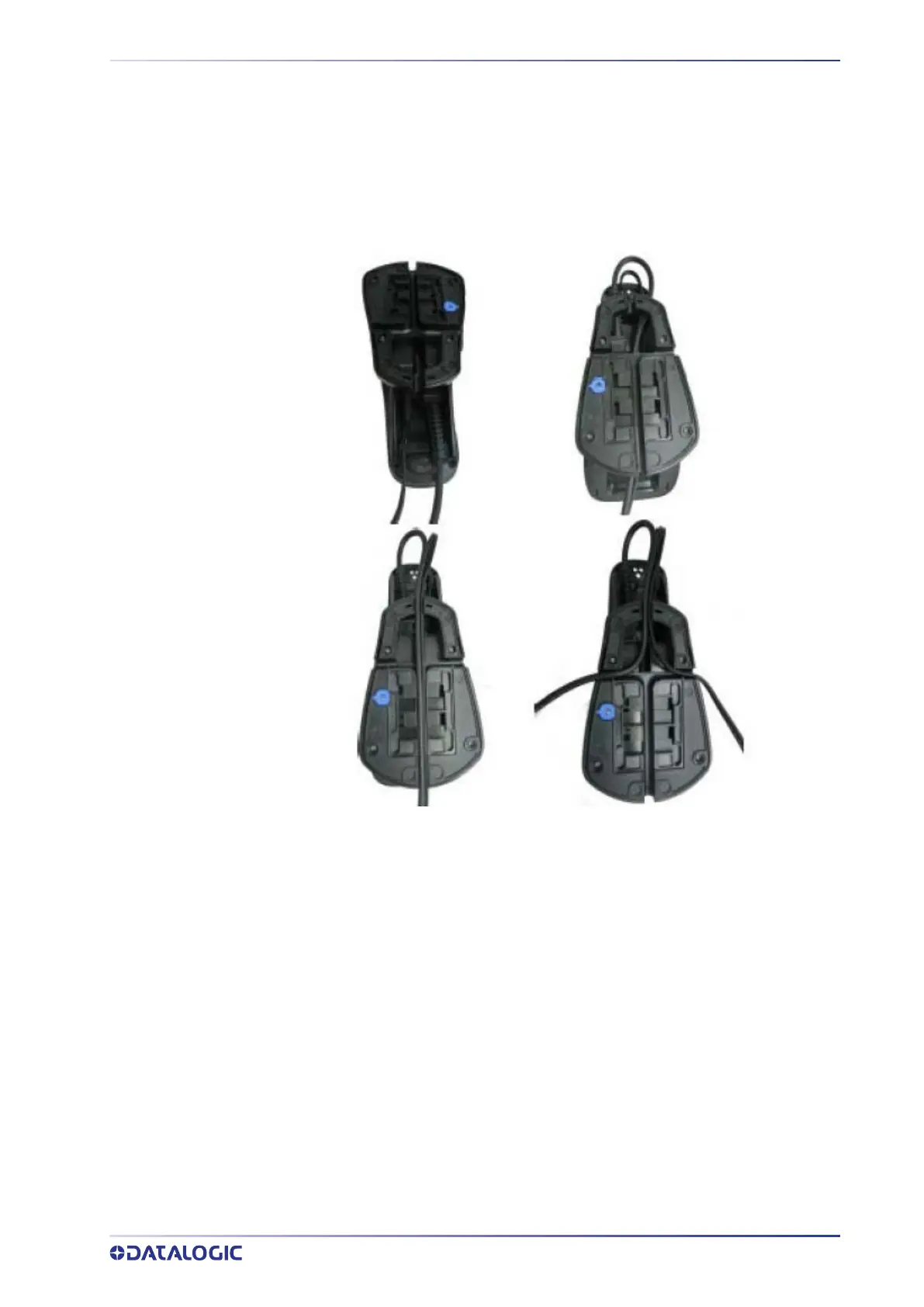

Figure 11 - Options for routing the cable
