SETUP
14
GRYPHON™ I GD/GBT/GM4500
CONNECTING THE BASE STATION
The following figure shows how to connect the base station to a terminal, PC or other
host device. Turn off the host before connection and consult the manual for that equip-
ment (if necessary) before proceeding. Connect the interface cable before applying
power to the Base Station.
Base Station Connection and Routing
Fully insert the Power Cable and Interface (I/F) Cable connectors into their respective
ports in the underside of the base station. Then connect to an AC Adapter, and plug the
AC power cord into the (wall) outlet.

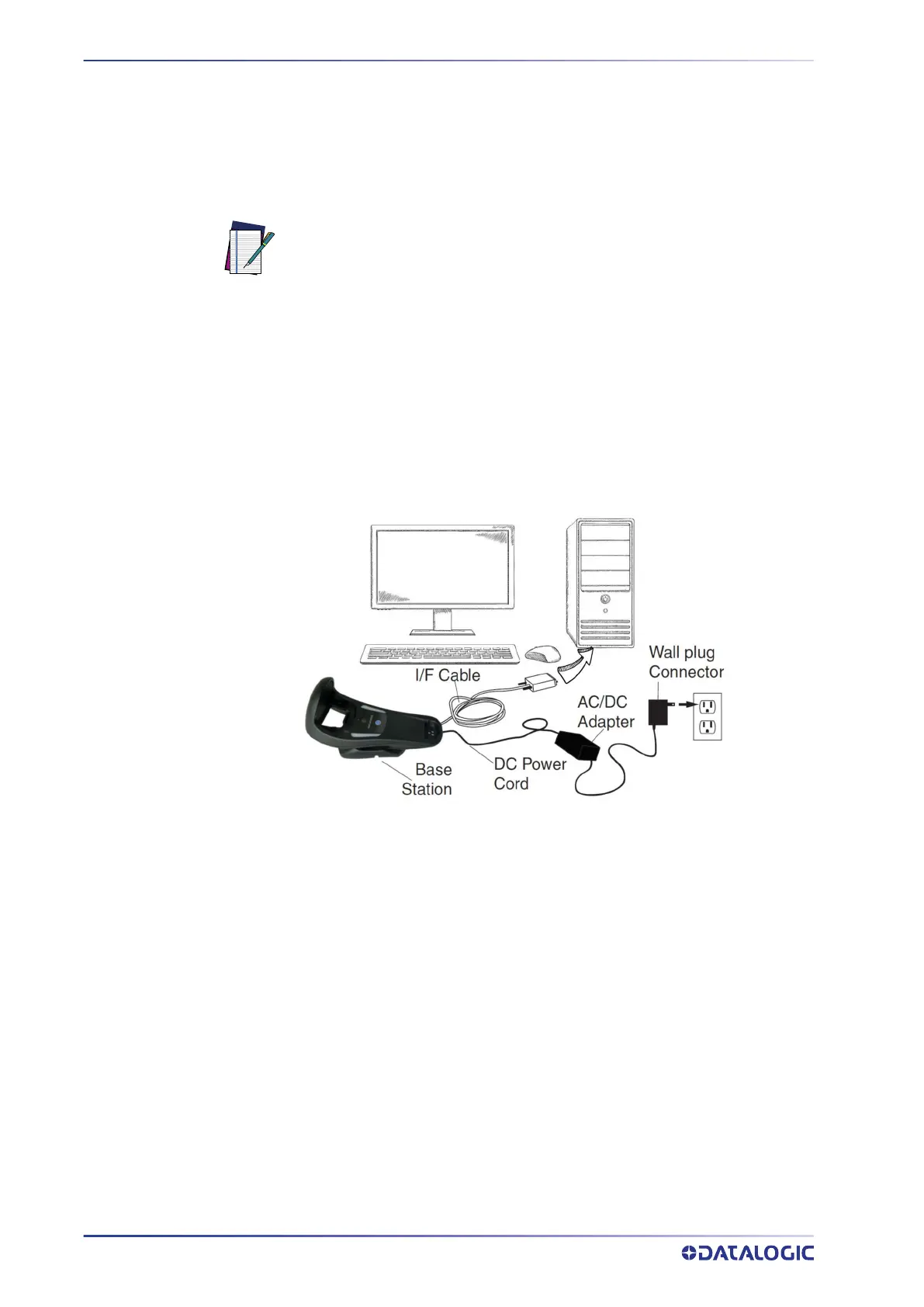

Figure 10 - Connecting the Base Station
NOTE: The Gryphon GBT/GM4500 can also be Powered by the Terminal.
When powered by the Terminal, the battery charger is automatically set to
Slow charge.
For some specific interfaces or hosts or lengths of cable, the use of an
external power supply is recommended for full recharging capability (see
GD4500 Technical Specifications, starting on page 297 for more details).
