SETUP
16
GRYPHON™ I GD/GBT/GM4500
Host Connection
Verify before connection that the reader’s cable type is compatible with your host
equipment. Most connections plug directly into the host device as shown in Figure 12.
Keyboard Wedge interface cables have a ‘Y’ connection where its female end mates
with the male end of the cable from the keyboard and the remaining end at the key-
board port on the terminal/PC.

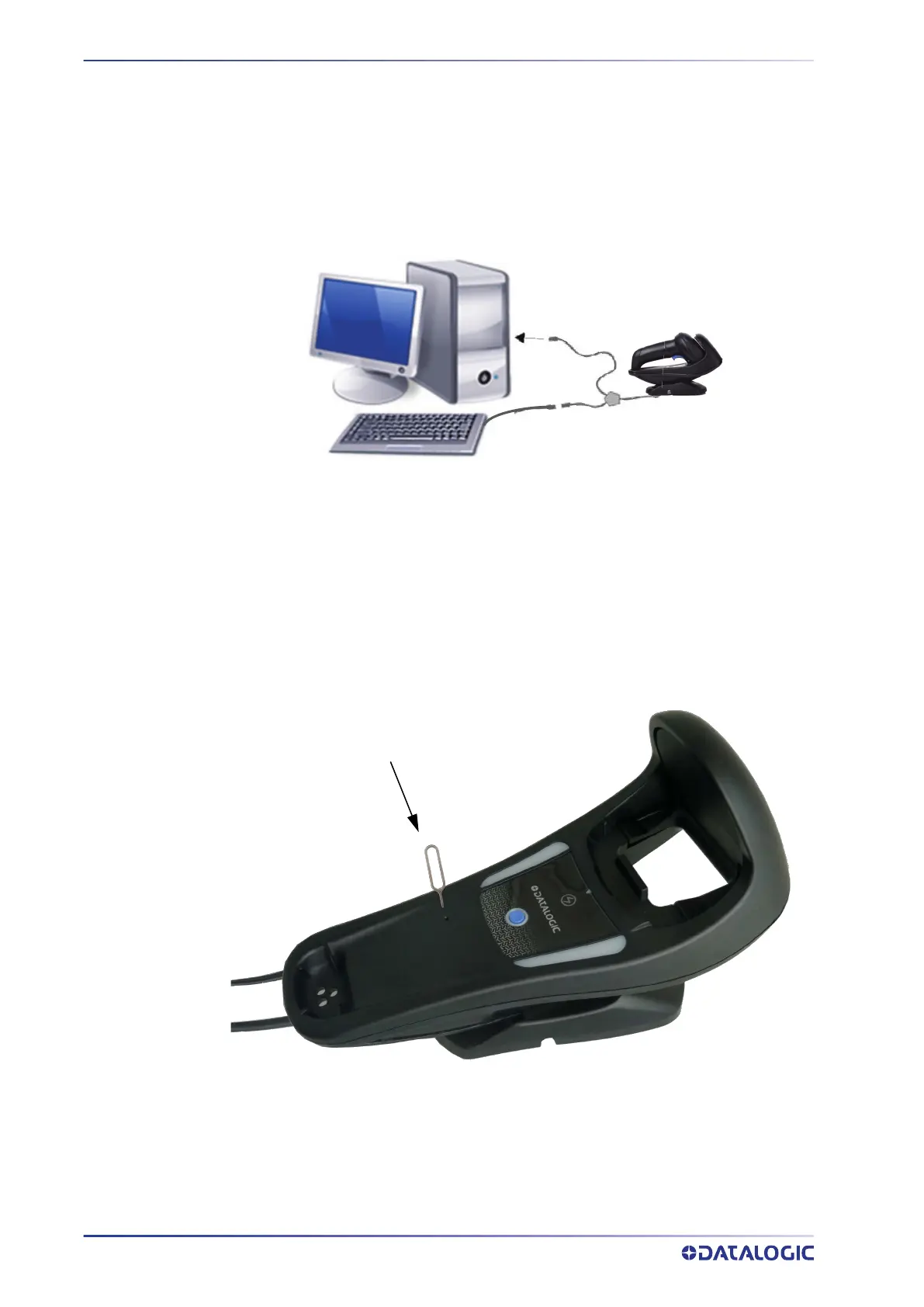

Figure 12 - Connecting to the Host
Power Connection
Plug the AC Adapter into an approved AC wall socket with the cable facing downwards
to prevent undue strain on the socket.
Disconnecting the Cable
To detach the cable, insert a paper clip or similar object into the hole on the base, as
shown.
Figure 13 - Disconnecting the cable
Insert a paper clip
