SETUP
10
GRYPHON™ I GD/GBT/GM4500
POSITIONING THE BASE STATION
The base station may be set up in desk application to hold the reader in three different
positions, either a horizontal or standing or vertical position, in order to provide the
most comfortable use depending on the needs.
Base Station Positions and Related Clips to be Used

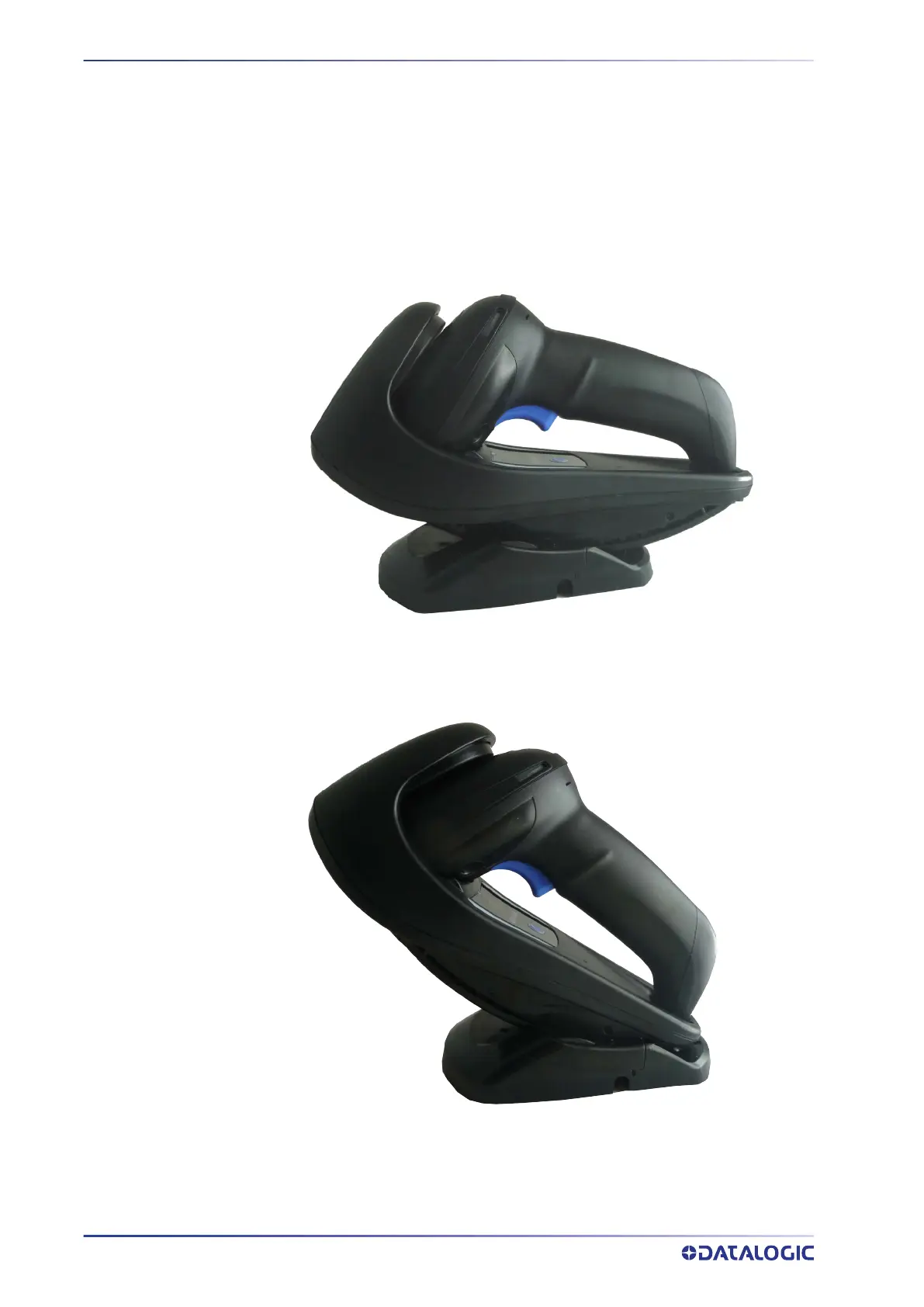

Figure 5 - Horizontal Position
The base station may be set up in desk application to hold the reader in three different
positions, either a horizontal or standing or vertical position, in order to provide the
most comfortable use depending on the needs.
Figure 6 - Presentation Position
This position is preferred if the reader is to be used in stand mode and not needed to be
often removed from base station.
