SYSTEM AND NETWORK LAYOUTS
PRODUCT REFERENCE GUIDE 17
SYSTEM AND NETWORK LAYOUTS
Stand Alone Layouts

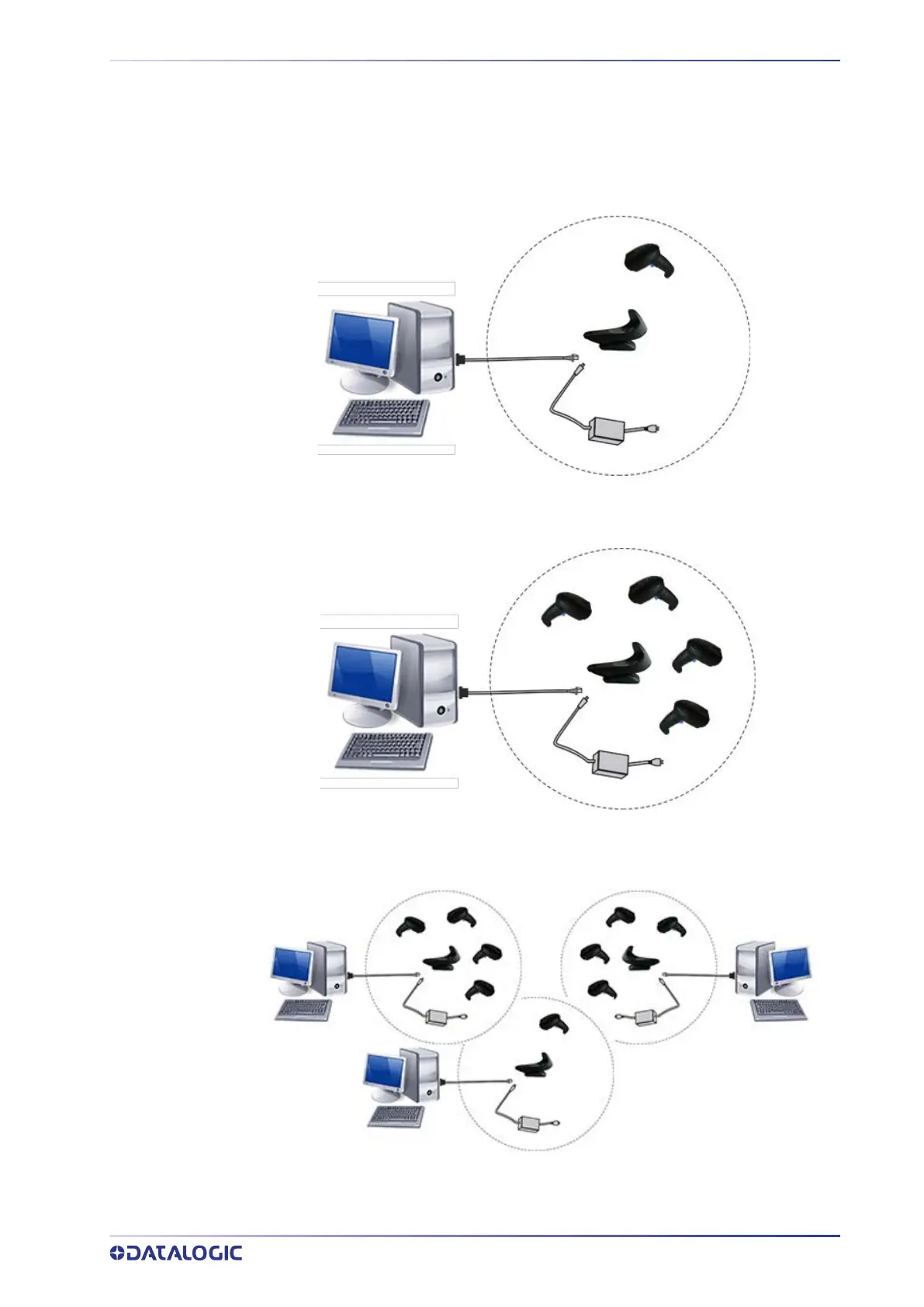

Figure 14 - Single Reader Layout
Figure 15 - Multiple Reader Layout
In stand alone systems, each base station is connected to a single Host.
Figure 16 - Multiple Stand Alone Layouts
Many stand alone connections can operate in the same physical area without interfer-
ence, provided all readers and base stations in the system have different addresses.
