READER, BASE STATION AND LEDS DESCRIPTION
LEDs on the gun provide information about the battery charging status as well as
data transmission.

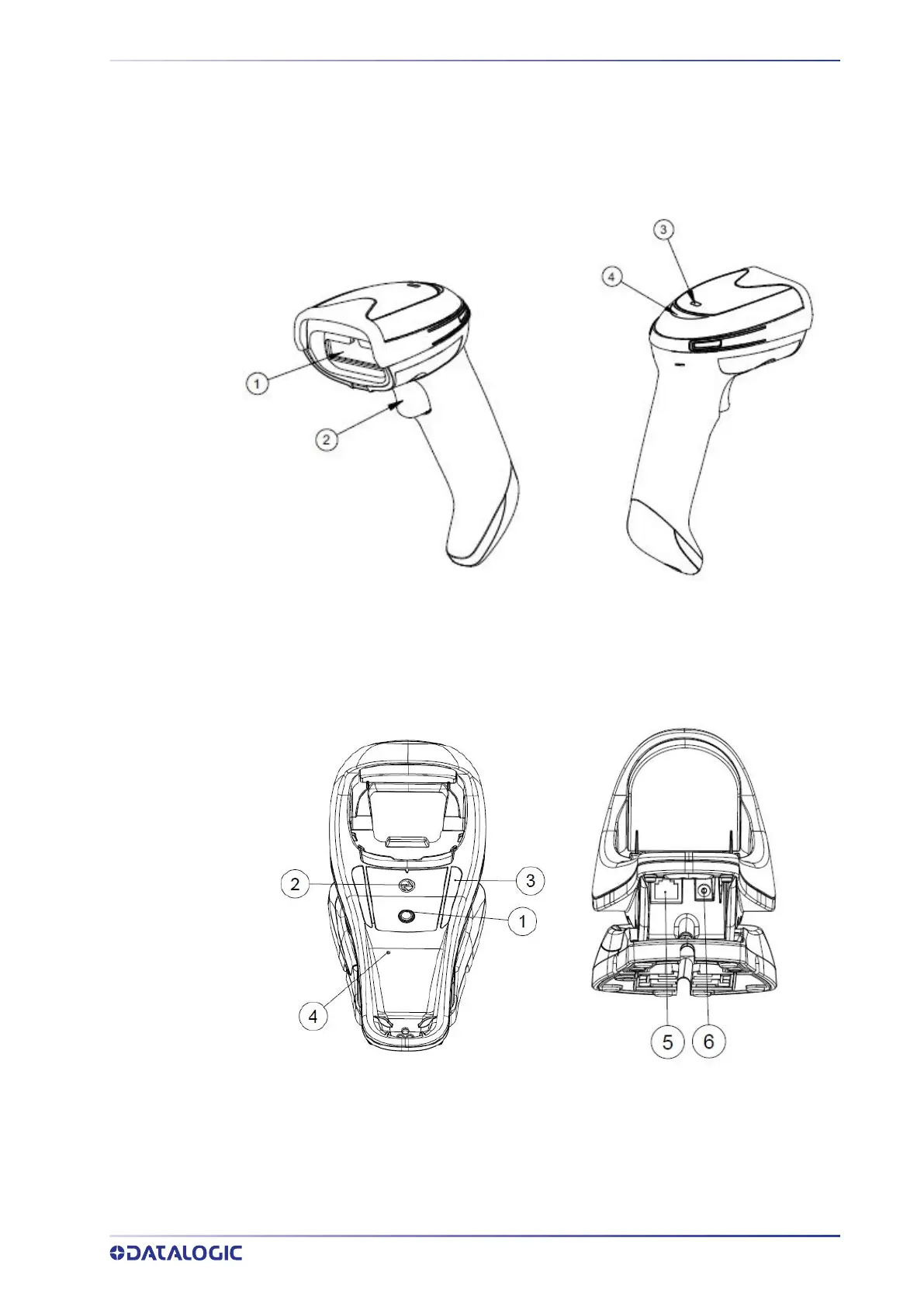

Figure 8 - Gryphon 4500 Gun LEDs
Figure 9 - WLC4090 Base Station LEDs
1. Scan Window 3. Battery & Recharge LED
2. Trigger 4. Good Read LED
1. Service Button 4. Cable Release Hole
2. Power LED 5. Communicatioin Port
3. Recharge LED 6. Aux Power Port
