Datalogic Gryphon 2D Series User Manual

TECHNICAL SPECIFICATIONS
308 GRYPHON™ I GD/GBT/GM4500
Figure 22 and Table 33 provide standard pinout information for the reader’s cable.

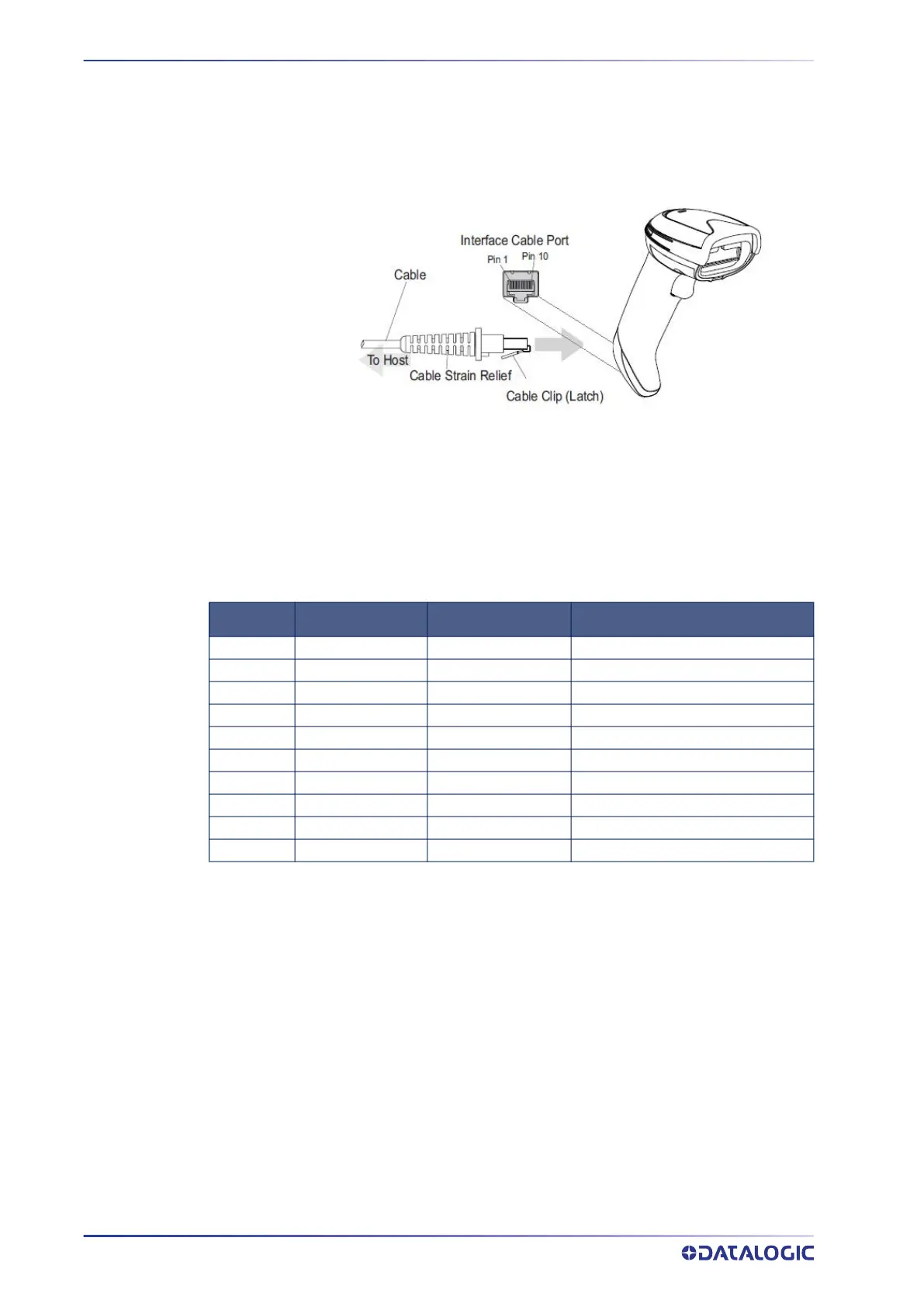

Figure 22 Standard Cable Pinouts
The signal descriptions in Table 33 apply to the connector on the reader and are for ref-
erence only.
Table 33 Standard Cable Pinouts — Reader Side
PIN RS232 USB KEYBOARD WEDGE
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9 DATAOUT (PC side)
10 CTS (in)
