TECHNICAL SPECIFICATIONS
260
GRYPHON™ I GD/GBT/GM4200
STANDARD CABLE PINOUTS
Figure 9 and Table 21 provide standard pinout information for the scanner’s cable.

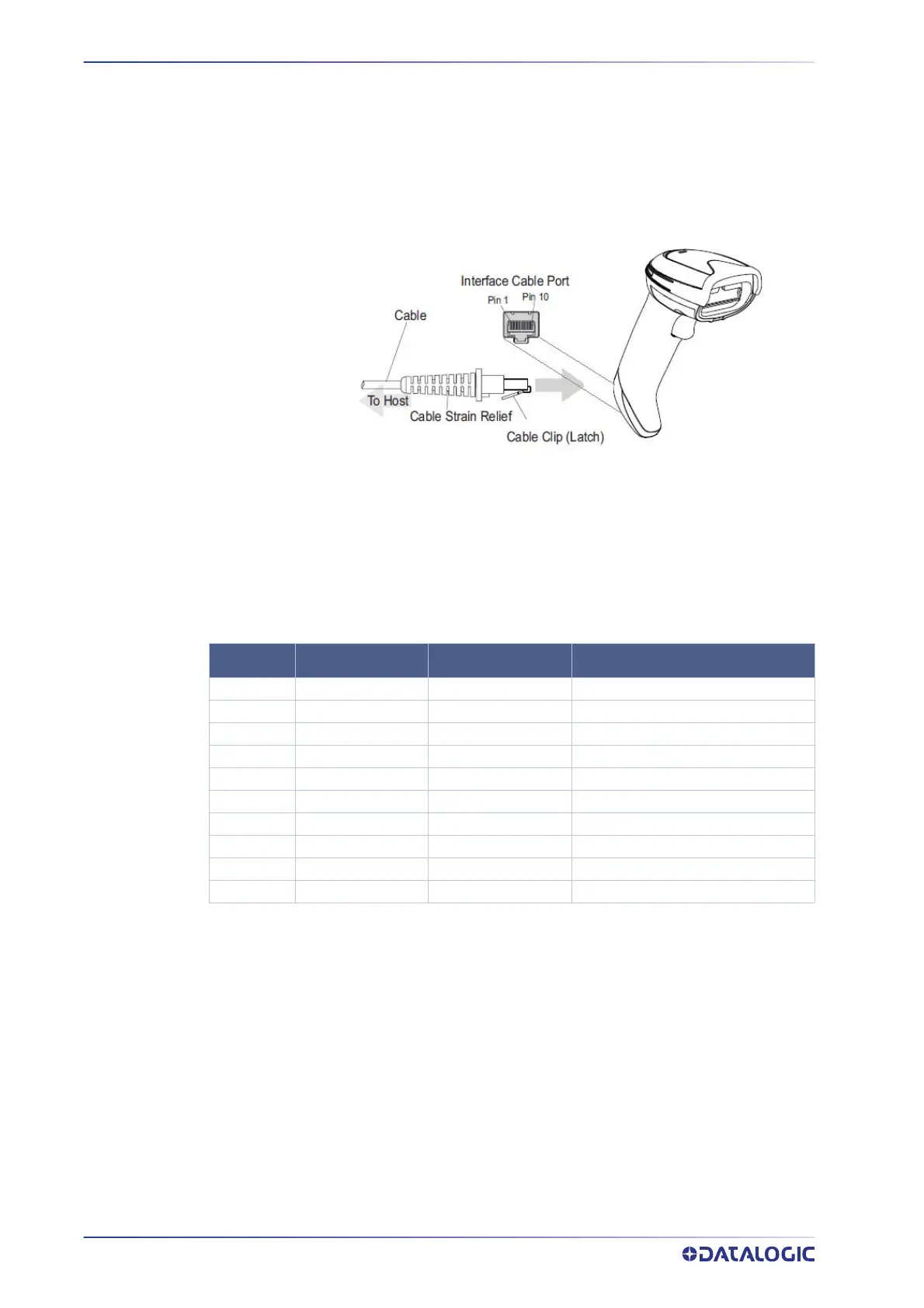

Figure 26 Standard Cable Pinouts
The signal descriptions in Table 21 apply to the connector on the scanner and are for
reference only.
Table 33 Standard Cable Pinouts — Scanner Side
PIN RS232 USB KEYBOARD WEDGE
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5RX
6TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9DATAOUT (PC side)
10 CTS (in)
