USING THE GBT/GM4200 SCANNER
Scanner LEDs
Specific LEDs on the Gryphon Scanner provide information about: good reading result
(3GL), battery status. The Battery Status information can be easily retrieved by double-
tapping with your fingers on top of the head of the scanner. The following table explains
the main color combinations provided by the Battery Status LED.
Table 1 - Battery LED
Battery Status (when not in charge) = 50% - 100%
Battery Status (when not in charge) = 2% - 50%
Charge less than 2%
USING THE WLC4090/4190 RADIO BASE
Radio Base LEDs
LEDs on the Gryphon Base provide information about the Base as well as battery
charging status, as shown in the figure below.

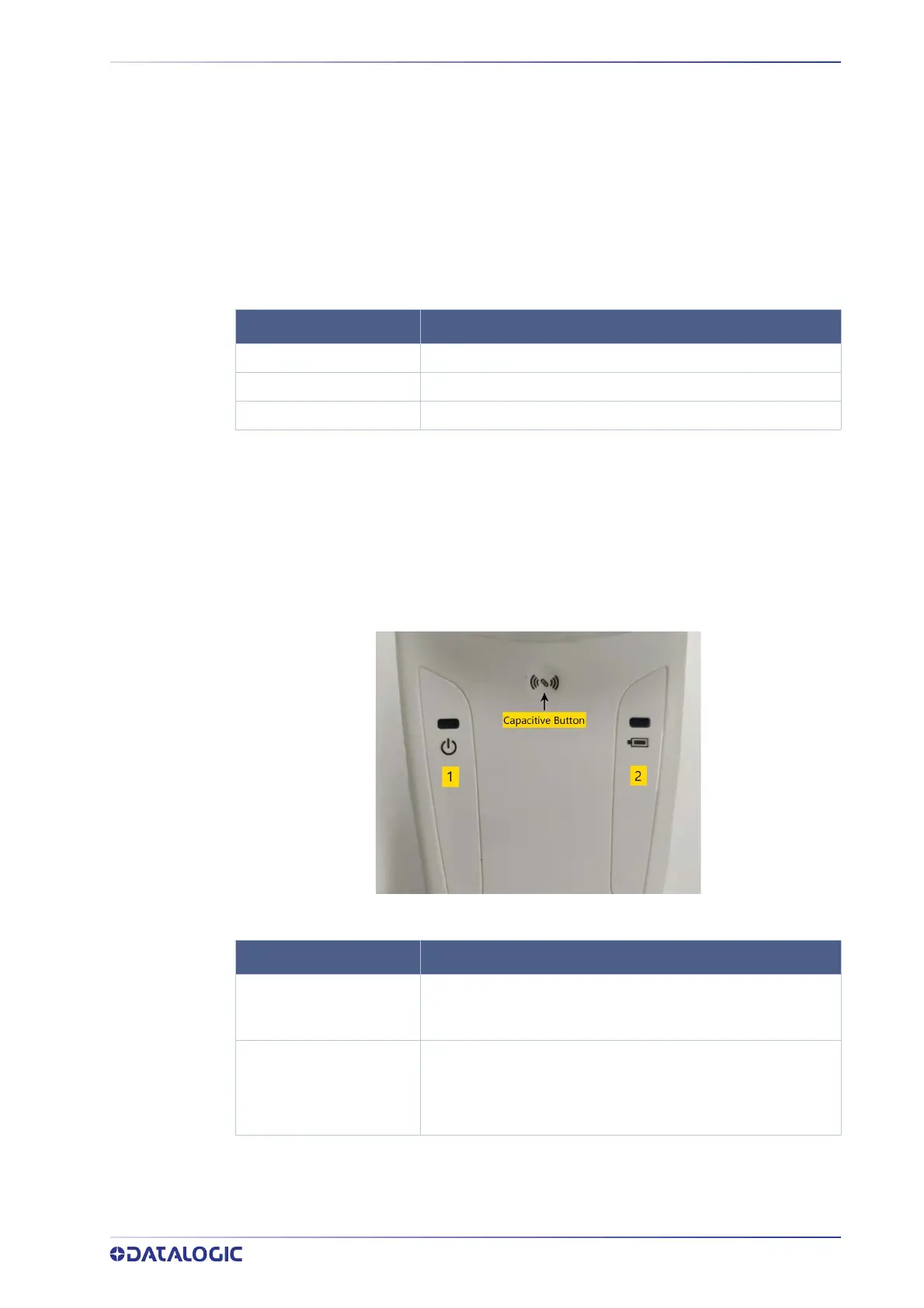

Figure 21 - Gryphon Base LEDs
Table 2 - Radio Base LEDs
Green On = Base is powered
Green Blinking = Base receives data and commands from the
Host or the Reader.
Green ON = the battery is completely charged
Green fading = battery level 51 to 99%
Amber fading = battery level 0 to 50%
Red fading = pre.charge
The capacitive touch button can be used to force device connection via the Datalogic
Aladdin Software tool and for paging the scanner when it is activated. See also
User Indi-
cations for WLC4190 Base Stations, starting on page 258
.
LED STATUS
Green (3s time-out)
Amber (3s time-out)
Red blinking
LED STATUS
1Power on / Data
2Charging
