ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE
72
GRYPHON™ I GD/GBT/GM4200
Keyboard Numeric Keypad
This feature specifies if numeric characters will be sent using the standard keys or the
numeric keypad.
Keyboard Send Control Characters
This feature is used by the Keyboard Wedge and USB Keyboard interfaces. It
specifies how the scanner transmits ASCII control characters to the host. Refer-
ence Appendix E Scancode Tables for more information about control characters.
Options are as follows:
Send Ctrl+Key :
ASCII characters from 00H to 0x1FH inclusive are transmitted in
the format Ctrl+Key. Special keys are available in the range from 81H to A1.
Send Ctrl+Shift+Key :
The behavior is the same as above, but control keys are
sent in the format Ctrl+Shift+Keys.
Send Special Function Key :
Send characters between 00H and 1FH according to
the special function key mapping table (see
"Interface Type PC AT PS/2 Alt Mode or
USB-Keyboard Alt Mode" on page 280). This is used to send keys that are not in the
normal ASCII set. A unique set is provided for each available scancode set.

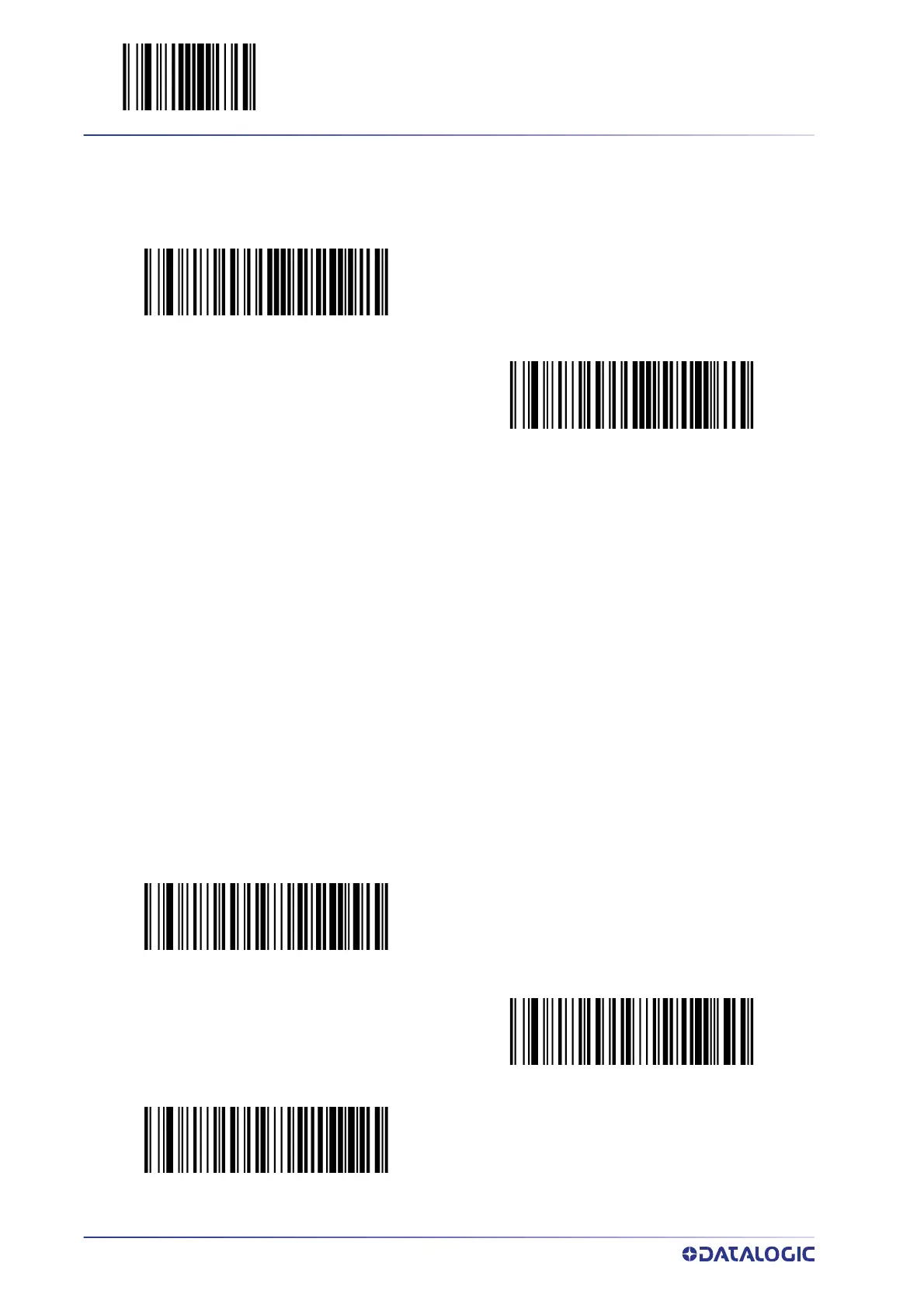

Keyboard Numeric Keypad = Standard Keys
$CKBKP00
$CKBKP01
Keyboard Numeric Keypad = Numeric Keypad
Keyboard Send Control Characters = Send Ctrl+Key
$CKBSC00
$CKBSC01
Keyboard Send Control Characters = Send Ctrl+Shift+Key
Keyboard Send Control Characters = Send Special Function Key
$CKBSC02
