SETUP
24
GRYPHON™ I GD/GBT/GM4200
POWER OFF

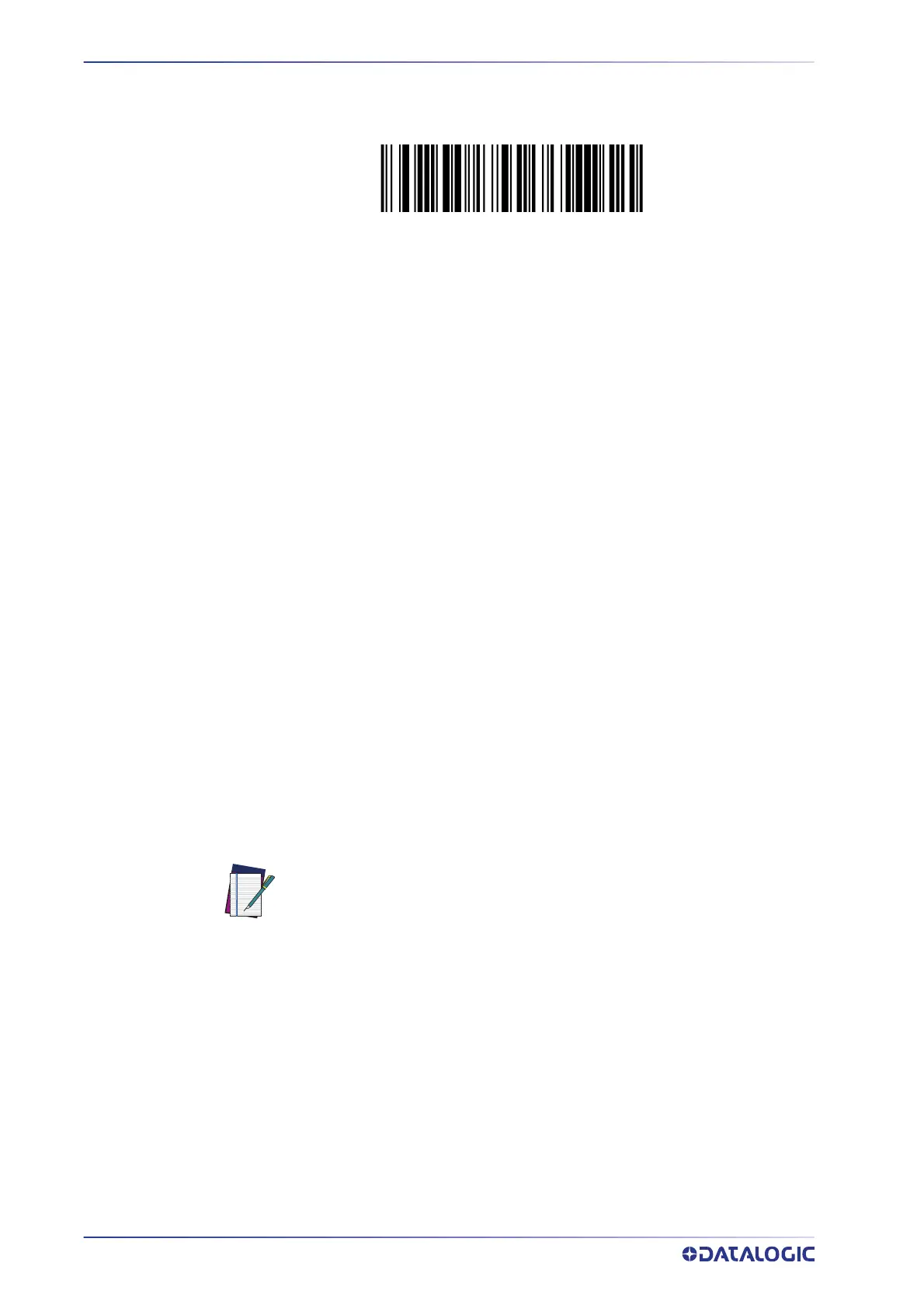

Scan the bar code below to shut off power to the handheld until the next trigger pull.
Power Off
INTERFACE SELECTION
Upon completing the physical connection between the scanner and its host, proceed
directly to
"Configuring the Interface" on page 24 for information and programming for
the interface type the scanner is connected to (for example: RS-232, Keyboard Wedge,
USB, etc.) and scan the appropriate bar code in that section to select your system’s cor
-
rect interfac5e type.
The scanner, depending upon the model, will support one of the following sets of host
interfaces:
• USB (Keyboard, COM, OEM)
• USB Composite (Keyboard + COM)
•USB HID POS
• USB Toshiba TEC
• RS-232 STD
• RS-232 WN
• RS232 OPOS
• Keyboard Wedge
• IBM46XX port 9b (a specific cable is required)
• Datalogic Magellan Scanners' specific interface
CONFIGURING THE INTERFACE
Scan the programming bar code from the following section which selects the appropri-
ate interface type to match the system the scanner will be connected to. Next, proceed
to the corresponding chapter in this manual (also listed in the table) to configure any
desired settings and features associated with that interface.
NOTE: Unlike some other programming features and options, interface
selections require that you scan only one programming bar code label. DO
NOT scan an ENTER/EXIT bar code prior to scanning an interface selection
bar code. Some interfaces require the scanner to start in the disabled state
when powered up. If additional scanner configuration is desired while in
this state, pull the trigger and hold for 5 seconds. The scanner will change
to a state that allows programming with bar codes.
