Add-Ons ENTER/EXIT PROGRAMMING MODE

104

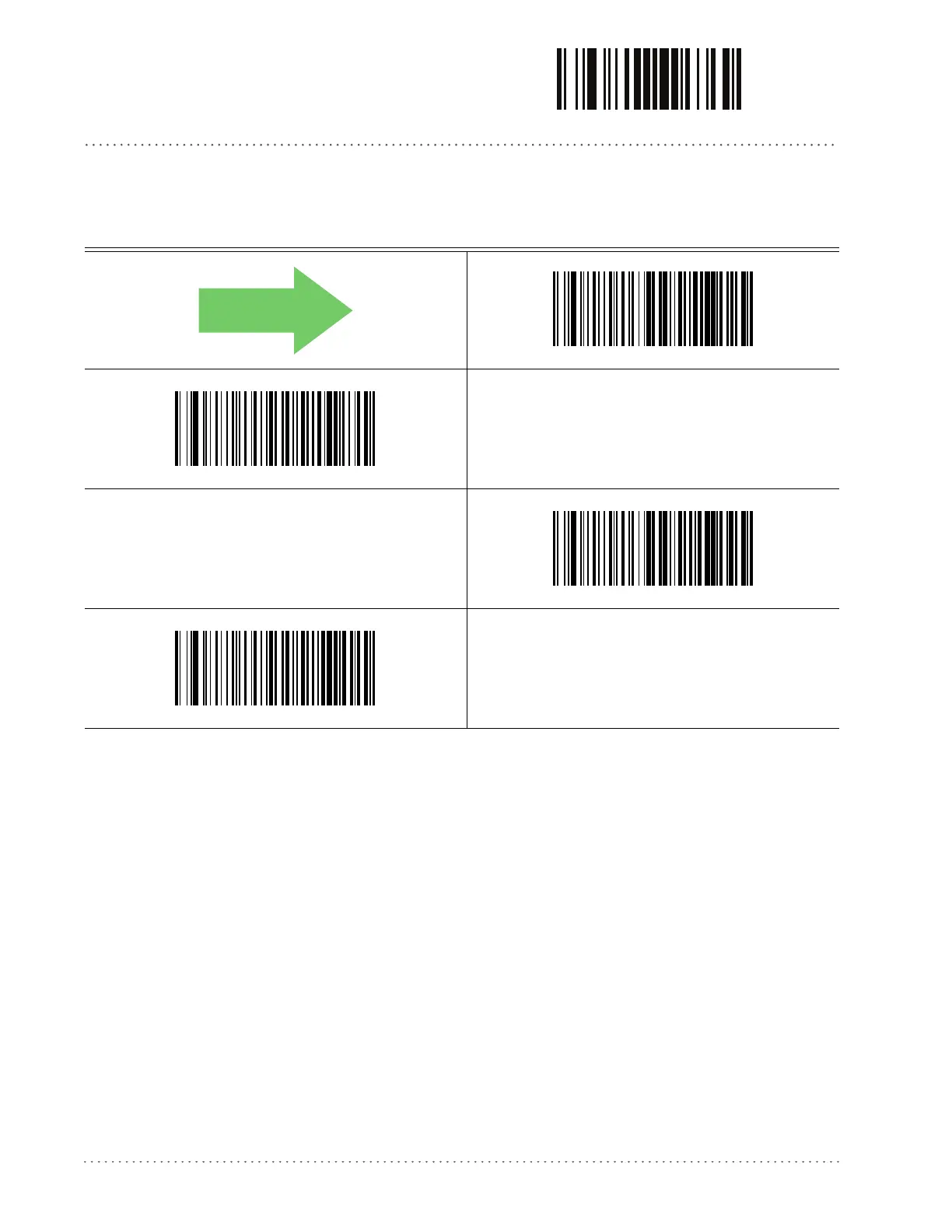

Gryphon™ I GFS4170/GFS4150-9

P5 Add-Ons Minimum Reads

This feature specifies the minimum number of times a P5 add-on must be read before it is

marked as valid and then combined with a base label

DEFAULT

P5 Add-Ons Minimum Reads = 1

P5 Add-Ons Minimum Reads = 2

P5 Add-Ons Minimum Reads = 3

P5 Add-Ons Minimum Reads = 4

Default Chapter3
