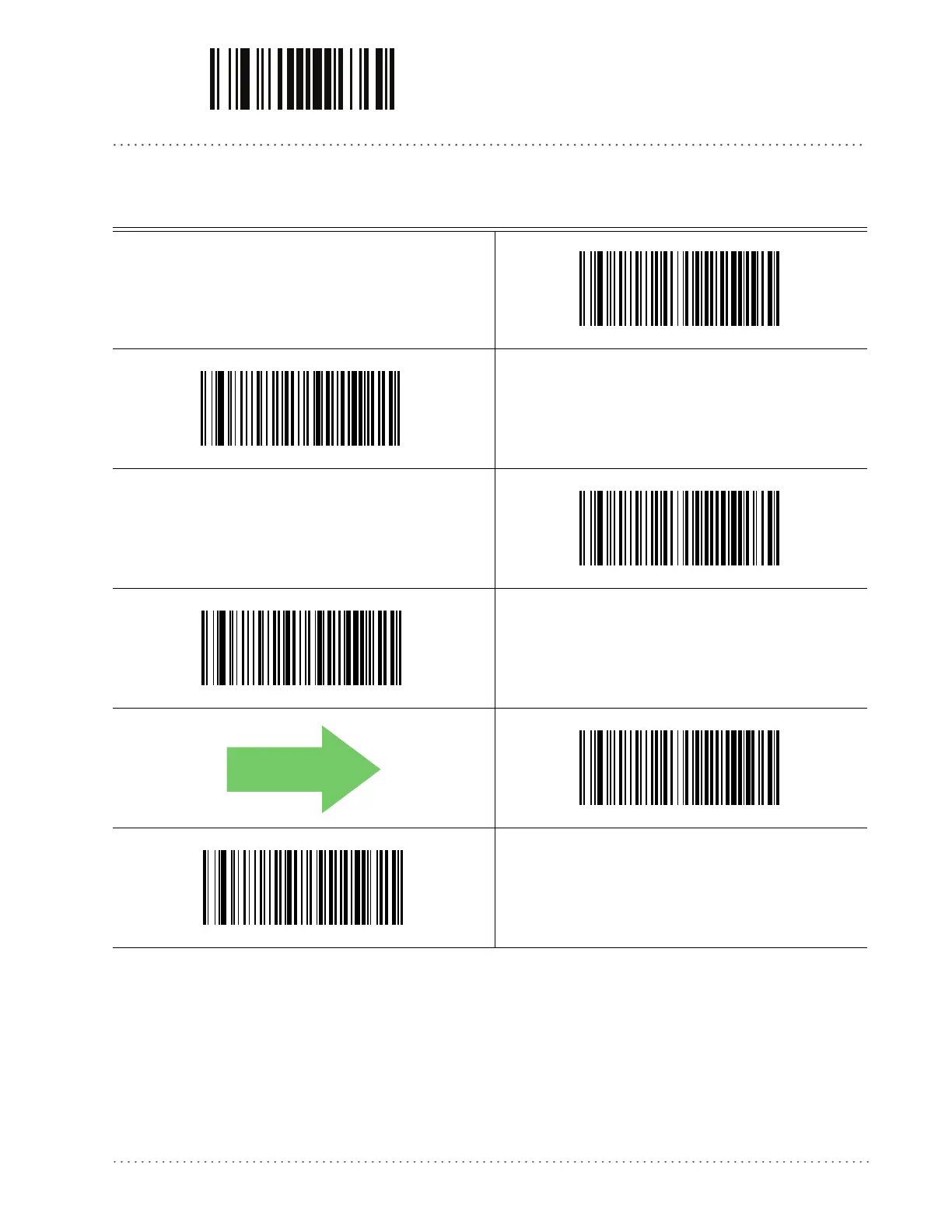

ENTER/EXIT PROGRAMMING MODE Code 39 Interdigit Ratio

Product Reference Guide

115

Code 39 Interdigit Ratio

This feature specifies the ratio between an intercharacter space and module for Code 39 labels.

Code 39 Interdigit Ratio = Disable

Code 39 Interdigit Ratio = 1

Code 39 Interdigit Ratio = 2

Code 39 Interdigit Ratio = 3

DEFAULT

Code 39 Interdigit Ratio = 4

Code 39 Interdigit Ratio = 5

Default Chapter3
