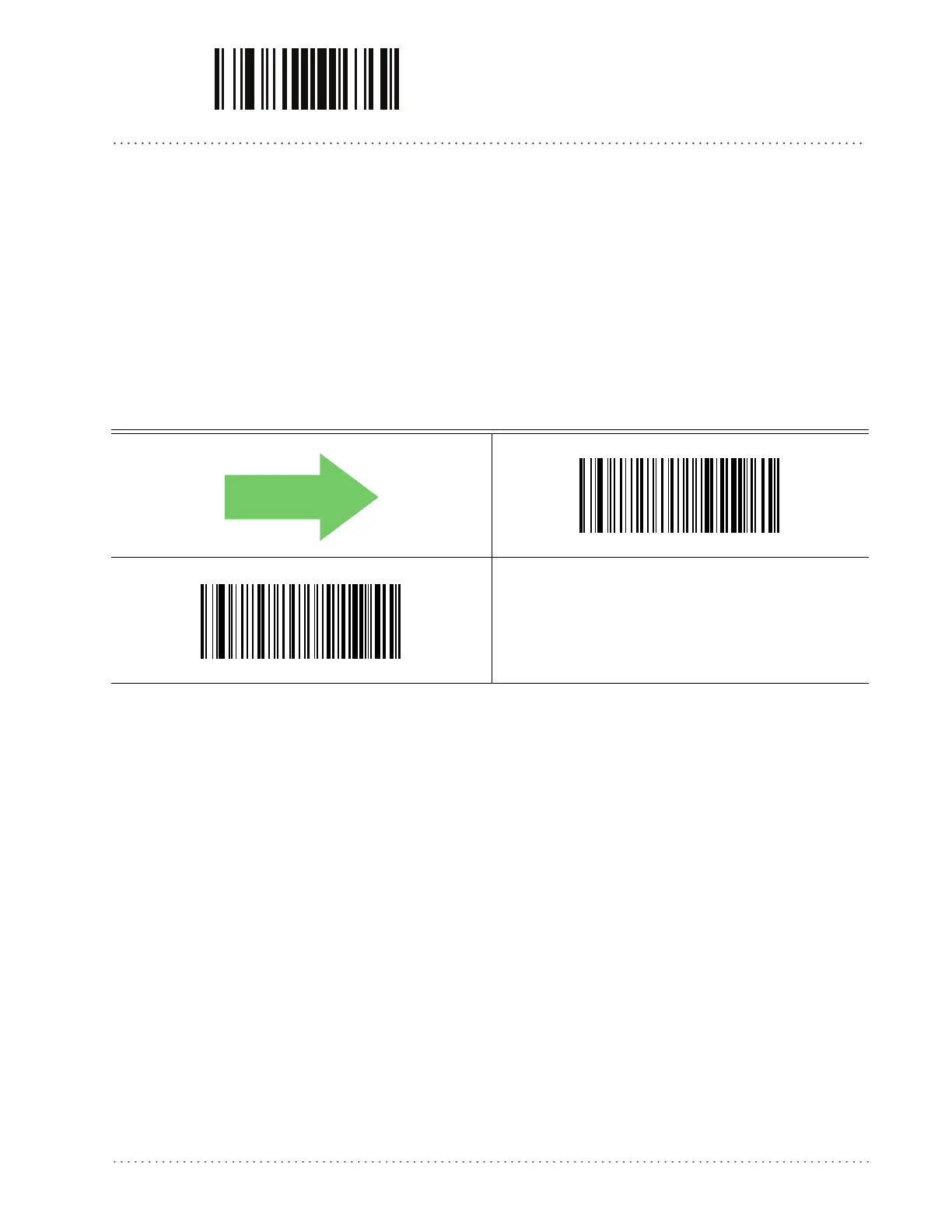

ENTER/EXIT PROGRAMMING MODE Host Commands — Obey/Ignore

Product Reference Guide

GLOBAL INTERFACE FEATURES

The following interface features are configurable by all interface types.

Host Commands — Obey/Ignore

This option specifies whether the reader will obey or ignore host commands. When set to

ignore, the reader will ignore all host commands except for those necessary for:

•service mode

• flash programming mode

• keeping the interface active

• transmission of labels

DEFAULT

Host Commands = Obey

Host Commands = Ignore

Default Chapter3
