ENTER/EXIT PROGRAMMING MODE Code 128 Sub-Code Change Transmission

Product Reference Guide

123

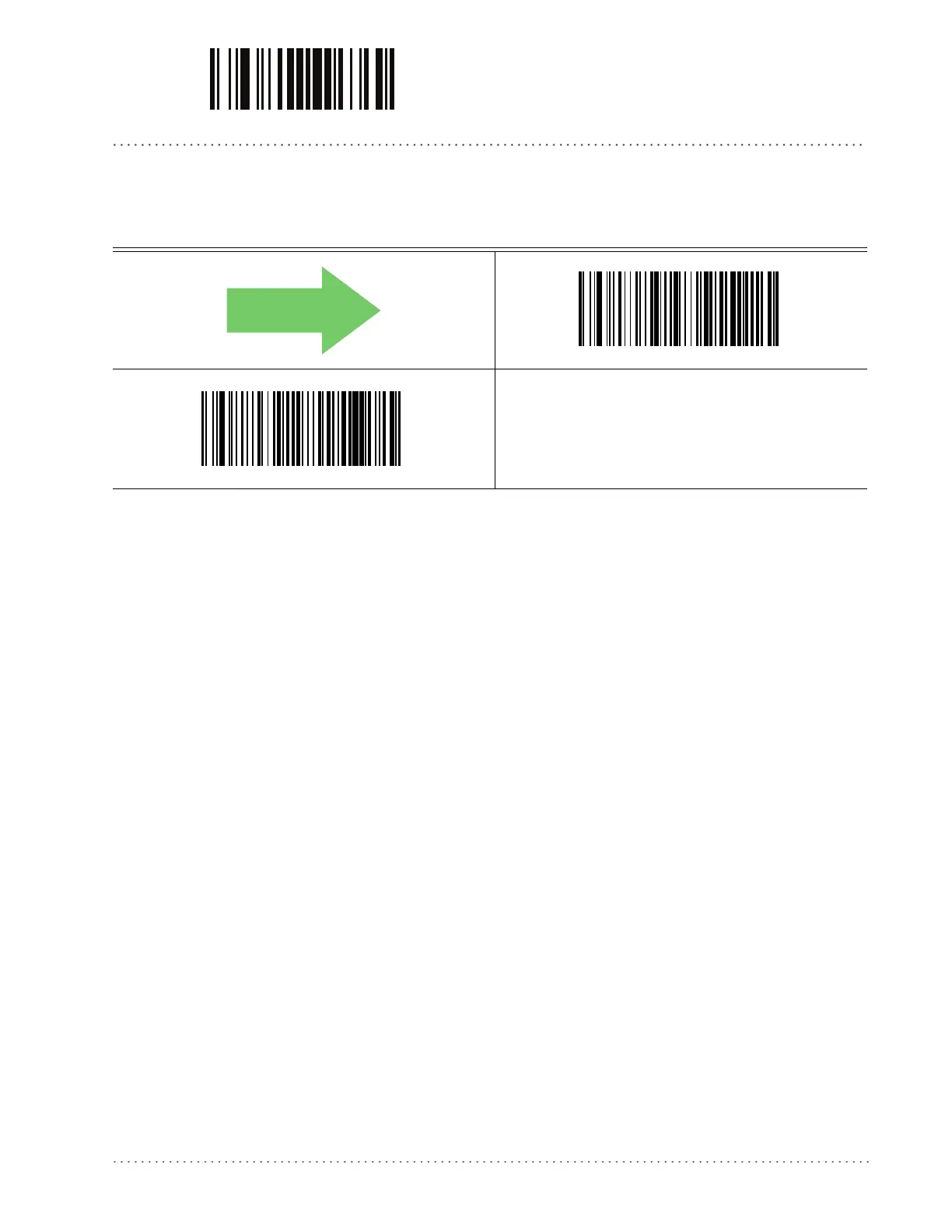

Code 128 Sub-Code Change Transmission

Enables/disables the transmission of “Sub-Code exchange” characters (NOT transmitted by

standard decoding).

DEFAULT

Code 128 Sub-Code Change Transmission = Disable

Code 128 Sub-Code Change Transmission = Enable

Default Chapter3
- Table of Contents3
Introduction9
- About this Manual9
  - Overview9
  - Manual Conventions9
- References10
- Technical Support10
- About the Reader10
- Programming the Reader11
  - Configuration Methods11
Setup13
- Unpacking13
- Setting up the Reader13
- Installing the Interface Cable14
- Interface Selection15
  - Setting the Interface15
- Customizing Configuration Settings17
Configuration Using Barcodes19
- Configuration Parameters19
- Reading Configuration Barcodes20
  - Global Interface Features21
    - Host Commands - Obey/Ignore21
- Rs-232 Only Interface23
- RS-232/USB-Com Interfaces28
- USB Keyboard Interfaces35
- Data Format43
- Digital Output59
- Power Save63
  - USB Suspend Mode64
  - Sleep Mode Timeout65
- Reading Parameters67
  - Illumination Mode68
  - Led and Beeper Indicators68
- Code Selection79
Issn92
- ISSN Enable/Disable92
Ean 8 (Jan 8)93
- EAN 8 Enable/Disable93
- EAN 8 Check Character Transmission93
- Expand EAN 8 to EAN 1394
- EAN 8 Minimum Reads94
Upc/Ean Global Settings95
- UPC/EAN Decoding Level95
- UPC/EAN Correlation96
- UPC/EAN Price Weight Check96
- In-Store Minimum Reads97
Add-Ons98
- Optional Add-Ons98
- Optional Add-On Timer99
- Optional GS1-128 Add-On Timer102
- P2 Add-Ons Minimum Reads105
- P5 Add-Ons Minimum Reads106
- GS1-128 Add-Ons Minimum Reads107
Code 39108
- Code 39 Enable/Disable108
- Code 39 Check Character Calculation108
- Code 39 Check Character Transmission109
- Code 39 Start/Stop Character Transmission110
- Code 39 Full ASCII110
- Code 39 Quiet Zones111
- Code 39 Minimum Reads112
- Code 39 Decoding Level113
- Code 39 Length Control114
- Code 39 Set Length 1115
- Code 39 Set Length 2116
- Code 39 Interdigit Ratio117
- Code 39 Character Correlation119
- Code 39 Stitching119
Code 32 (Ital Pharmaceutical Code)120
- Code 32 Enable/Disable120
- Code 32 Feature Setting Exceptions120
- Code 32 Check Char Transmission121
- Code 32 Start/Stop Character Transmission121
Code 39 Cip (French Pharmaceutical)122
- Code 39 CIP Enable/Disable122
Code 128123
- Code 128 Enable/Disable123
- Expand Code 128 to Code 39123
- Code 128 Check Character Transmission124
- Code 128 Function Character Transmission124
- Code 128 Sub-Code Change Transmission125
- Code 128 Quiet Zones126
- Code 128 Minimum Reads127
- Code 128 Decoding Level128
- Code 128 Length Control129
- Code 128 Set Length 1130
- Code 128 Set Length 2131
- Code 128 Character Correlation132
- Code 128 Stitching132
Gs1-128133
- GS1-128 Enable133
Code Isbt 128134
- ISBT 128 Concatenation134
- ISBT 128 Concatenation Mode134
- ISBT 128 Dynamic Concatenation Timeout135
- ISBT 128 Advanced Concatenation Options135
Interleaved 2 of 5 (I 2 of 5)136
- I 2 of 5 Enable/Disable136
- I 2 of 5 Check Character Calculation136
- I 2 of 5 Check Character Transmission137
- I 2 of 5 Minimum Reads138
- Of 5 Decoding Level139
- I 2 of 5 Length Control140
- I 2 of 5 Set Length 1141
- I 2 of 5 Set Length 2142
- I 2 of 5 Character Correlation143
- I 2 of 5 Stitching143
Standard 2 of 5144
- Standard 2 of 5 Enable/Disable144
- Standard 2 of 5 Check Character Calculation144
- Standard 2 of 5 Check Character Transmission145
- Standard 2 of 5 Minimum Reads145
- Standard 2 of 5 Decoding Level146
- Standard 2 of 5 Length Control146
- Standard 2 of 5 Set Length 1147
- Standard 2 of 5 Set Length 2148
- Standard 2 of 5 Character Correlation149
- Standard 2 of 5 Stitching149
Industrial 2 of 5150
- Industrial 2 of 5 Enable/Disable150
- Industrial 2 of 5 Check Character Calculation150
- Industrial 2 of 5 Check Character Transmission151
- Industrial 2 of 5 Length Control151
- Industrial 2 of 5 Set Length 1152
- Industrial 2 of 5 Set Length 2153
- Industrial 2 of 5 Minimum Reads154
- Industrial 2 of 5 Character Correlation154
- Industrial 2 of 5 Stitching155
Code Iata156
- IATA Enable/Disable156
- IATA Check Character Transmission156
Datalogic 2 of 5157
- Datalogic 2 of 5 Enable/Disable157
- Datalogic 2 of 5 Check Character Calculation157
- Datalogic 2 of 5 Minimum Reads158
- Datalogic 2 of 5 Decoding Level158
- Datalogic 2 of 5 Length Control159
- Datalogic 2 of 5 Set Length 1160
- Datalogic 2 of 5 Set Length 2161
- Datalogic 2 of 5 Character Correlation162
- Datalogic 2 of 5 Stitching162
Codabar163
- Codabar Enable/Disable163
- Codabar Check Character Calculation163
- Codabar Check Character Transmission164
- Codabar Start/Stop Character Transmission164
- Codabar Start/Stop Character Set165
- Codabar Start/Stop Character Match165
- Codabar Quiet Zones166
- Codabar Minimum Reads167
- Codabar Decoding Level168
- Codabar Length Control169
- Codabar Set Length 1170
- Codabar Set Length 2171
Software Configuration Strings209
- Command Syntax210
  - Serial Configuration Strings212
References235
- RS-232 Parameters235
  - RS-232 Only235
  - RS-232/USB COM Parameters236
- Data Editing243
- Reading Parameters253
  - Illumination Mode253
  - Good Read LED Duration253
- Scanning Features254
  - Operating Mode254
- Test Mode255
  - Test Mode Multiple256
  - Camera Control256
- Power Save256
  - USB Suspend256
  - Sleep Mode Timeout256
- Digital Output257
- Symbologies257
Technical Specifications259
- Standard Cable Pinouts261
- LED and Beeper Indications262
  - Button and LED Status262
- Error Codes263
Standard Defaults265
Sample Barcodes275
Keypad279
Reserved Characters283
Scancode Tables285
- Control Character Emulation285
  - Single Press and Release Keys285
- Interface Type USB-Keyboard or USB-Keyboard for APPLE286
- Interface Type USB-Keyboard Alt Mode288
- Microsoft Windows Codepage 1252290
Index291
- Ascii Chart293
